Compatible bike battery Bosch PowerPack 612Wh - Cadre Classic Line 36V 17Ah

Reference PPB36V17Ah UR
Available under 3 weeks
*according to supplier's lead time
Is your electric bike losing range or showing signs of weakness on your commute? Give it a second life...
> See more
  • Is your electric bike losing range or showing signs of weakness on your commute?
  • Give it a second life with the compatible Bosch PowerPack 612Wh Cadre Classic Line 36V 17Ah battery, a reliable, high-performance and economical alternative to the original Bosch battery.

  • Specially designed for electric bikes equipped with a 1st generation Bosch Classic Line motor, this frame battery combines power, autonomy and ease of use.

  • Thanks to its high capacity of 612Wh (36V - 17Ah), it provides a range of up to 80 to 85 km, depending on conditions of use, ideal for both daily commutes and long rides.

  • Manufactured by a renownedGerman manufacturer and tested by our teams, this Bosch -compatible battery offersexcellent performance while remaining more affordable than an original model.

  • Its compact, lightweight format of just 3 kg guarantees easy handling and aesthetic integration on the frame of your electric bike.

  • Compatible with original Bosch Classic Line chargers, this battery also benefits from the Plug & Play system for quick and easy installation.

  • Before ordering, it's essential to check that your bike is equipped with a Bosch Classic Line motorization and not an Active Line system.

  • Also check the shape of the connector and the compatible part numbers listed below.

  • Scroll down this page to discover all the technical specifications, detailed compatibilities and our expert advice to optimize the life of your battery ↓

  • Warranty : 3 years
* average range, may vary depending on your usage
Available under 3 weeks
*according to supplier's lead time
€384.00

The displayed price including VAT is indicative.
The final amount will be calculated based on the delivery address provided when placing the order.

Free delivery from €299

Delivery in 3 to 5 business days
Free for orders over €299

Need help?
Contact one of our experts !

Returns within 14 days

Compatible Battery BOSCH PowerPack 612Wh Frame
Compatible bike battery Bosch PowerPack 612Wh - Cadre Classic Line 36V 17Ah
  • New
  • |
  • 17 Ah
  • |
€384.00
Reference PPB36V17Ah UR
Available under 3 weeks
*according to supplier's lead time

Technical specifications

Voltage
36 V
Power
612Wh
Width
90
Height
130
Depth
29,5cm
Weight
3
Technology
Lithium
Location
Downtube
Charging time
7-8h
Marque compatible
Bosch
Warranty
3 years
Advice for use
Do not leave the battery without charge for more than one month, remember to charge it regularly! Avoid cold and damp places to store your battery.
Connectivity
5-pin connector plug
Charger
new
Generation
Classic Line
Battery model
PowerPack Frame
Description
Ebikevision and Akkuvision are registered trademarks. All other brands and product names mentioned are also registered trademarks of their own manufacturers and are therefore subject to the relevant legal provisions.
Proposed solution
New battery
Colour
Anthracite
Smart System
Non
Ean13
4260495060095
Documents à télécharger

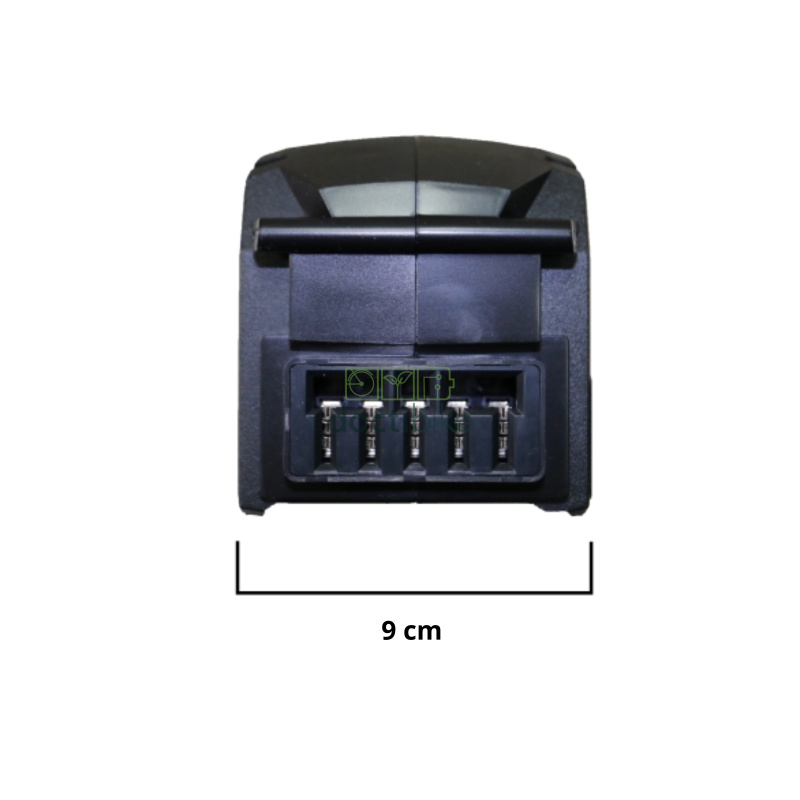

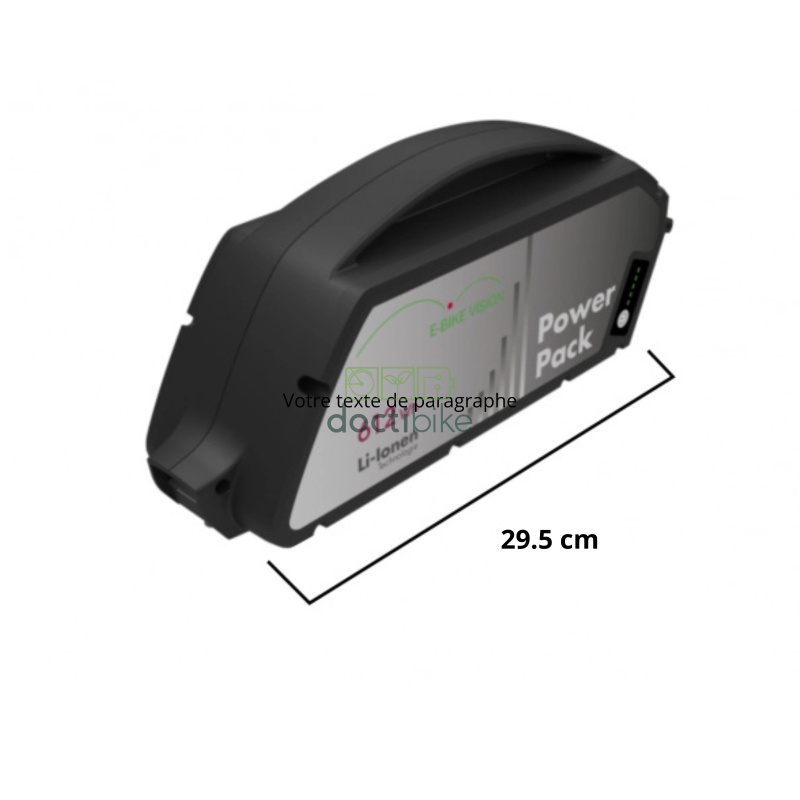

Dimensions Classic Line Frame

Dimensions of the compatible battery bosch Classic Line Frame 36V

Manual Classic Line 36V

Description

  • Technical description

  • Compatible battery Bosch PowerPack 612Wh Cadre Classic Line
  • This compatible battery Bosch PowerPack 612Wh Cadre is designed exclusively for electric bikes equipped with a first-generation Bosch Classic Line 36V motor.

  • It is an excellent alternative to original Bosch batteries thanks to :

  • - A high capacity of 612Wh in 36V 17Ah
  • - Range of up to 80 to 85 km, depending on use
  • - A compact, lightweight format weighing just 3 kg
  • - Quick installation thanks to Plug & Play
  • - Excellent splash and dust resistance
  • - German manufacturing recognized for its reliability
  • - Certified to European transport standards
  • - 3-year Doctibike warranty

  • → This battery installs directly on the electric bike frame and blends in perfectly with the bike's original design.

  • Important: motor compatibility Bosch Classic Line

  • This battery is only compatible with :

  • - Bosch Classic Line
  • - Bosch Classic Line +

  • → It is not compatible with Bosch Active Line systems.

  • Before purchasing, please ensure that :

  • - Check that your bike is equipped with a Bosch Classic Line 36V motorization
  • - Check the shape of the connector on your current battery
  • - Compare the part numbers on your original battery

  • Compatible references

  • The compatible battery Bosch PowerPack 612Wh Cadre Classic Line is compatible with the following part numbers:

  • - Frame 288Wh black: 1270020500 / 1 270 020 500
  • - Frame 300Wh black: 0275007500 / 0 275 007 500
  • - Frame 400Wh black: 0275007503 / 0 275 007 503
  • - Frame 288Wh white: 1270020501 / 1 270 020 501
  • - Frame 300Wh white: 0275007501 / 0 275 007 501
  • - Frame 400Wh white: 0275007504 / 0 275 007 504

  • Battery autonomy

  • Thanks to its 612Wh capacity, this battery provides an average range of 80 to 85 km.

  • Range may vary according to several criteria:

  • - Level of assistance used
  • - Type of route
  • - gradient
  • - Weather conditions
  • - Total weight carried

  • This capacity is ideal for :

  • - commuting
  • - Long-distance rides
  • - Daily commuting
  • - Leisure outings

  • → If you're looking for a more moderate range, this battery is also available in a 468Wh Cadre Classic Line version.

  • Compatible charging and charger

  • The Bosch PowerPack 612Wh compatible battery can be recharged at any time without waiting for a full discharge. The lithium-ion cells have no memory effect.

  • Estimated charging time :

  • Approx. 7-8 hours with a standard charger

  • → The charger is not included with the battery.

  • Good news: if you already own an original Bosch Classic Line charger, it remains compatible with this battery.

  • For faster recharging, a rapid charger is also available as an accessory.

  • Doctibike expert advice

  • To preserve the performance and extend the life of your compatible Bosch Classic Line battery:

  • Always recharge the battery in a dry place at room temperature
  • Avoid repeated full discharges
  • When not in use for long periods, maintain a charge of between 50 and 60%
  • Always remove the battery before cleaning your electric bike
  • Always check motor and connector compatibility before ordering

  • The battery is equipped with electronic protection against :

  • Deep discharge
  • Short-circuits
  • Overvoltage
  • Overheating

  • → With this compatible battery Bosch PowerPack 612Wh Cadre Classic Line, take advantage of a reliable, high-performance and long-lasting solution to regain the full range of your electric bike at a more affordable price.
