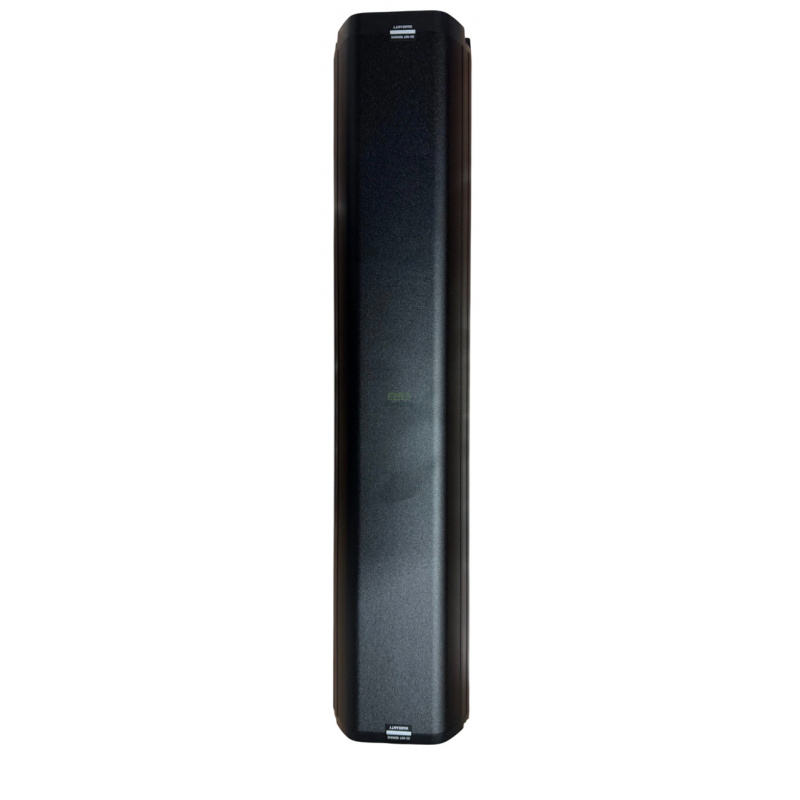

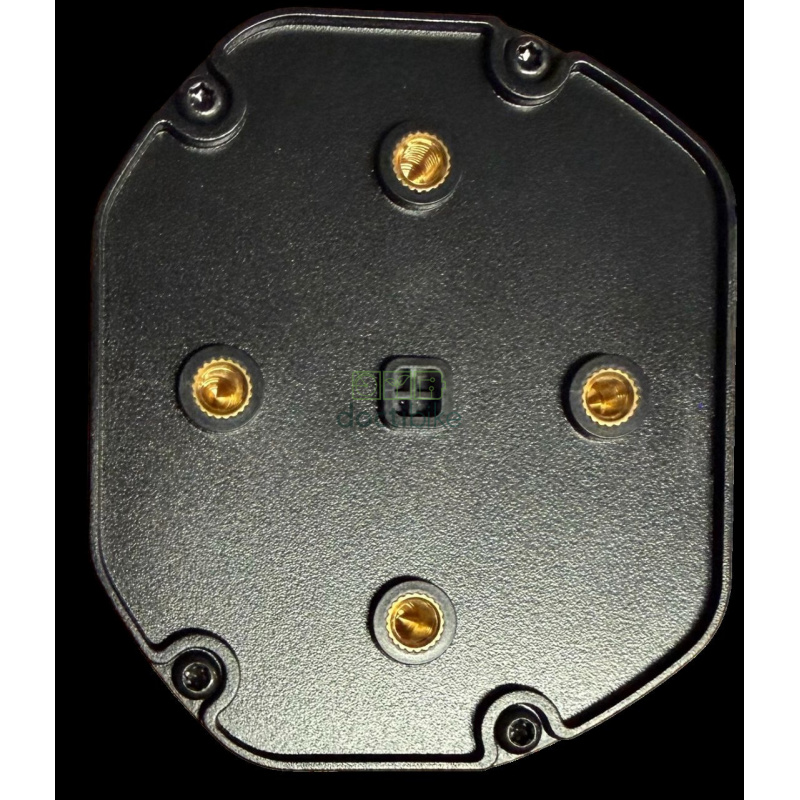

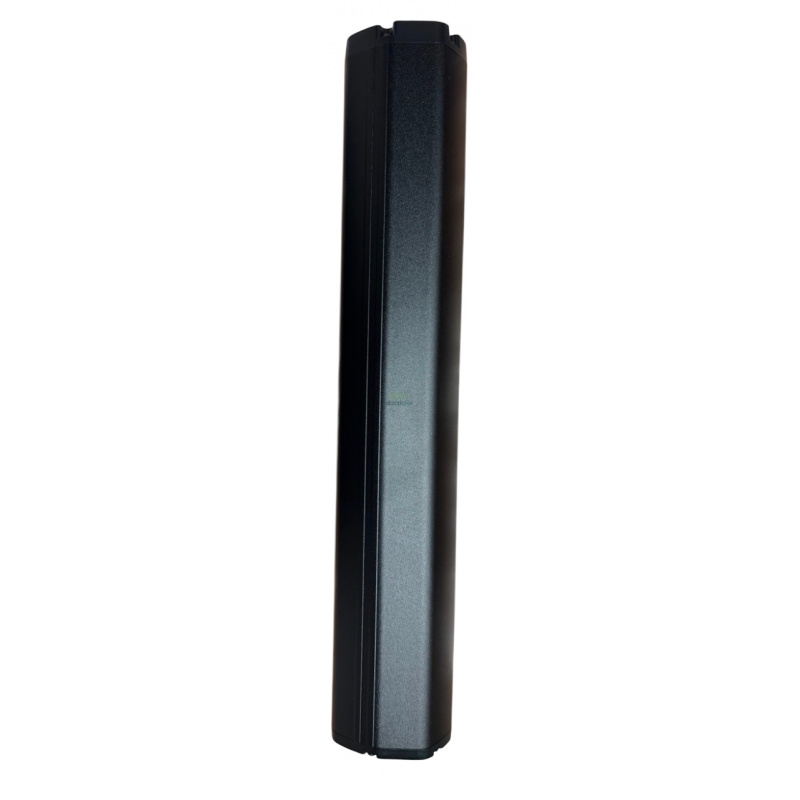

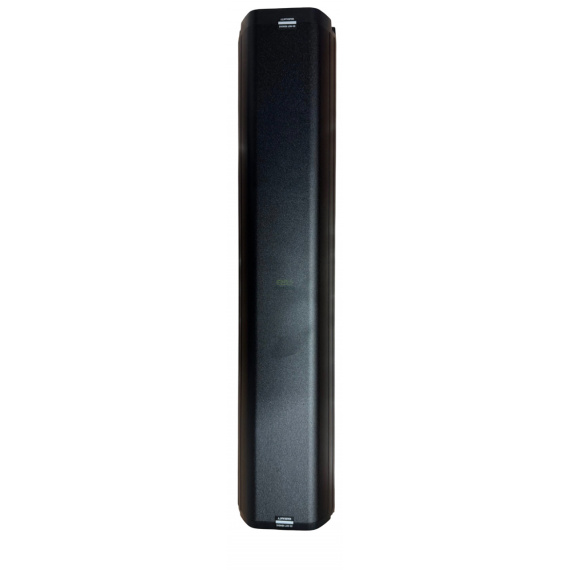

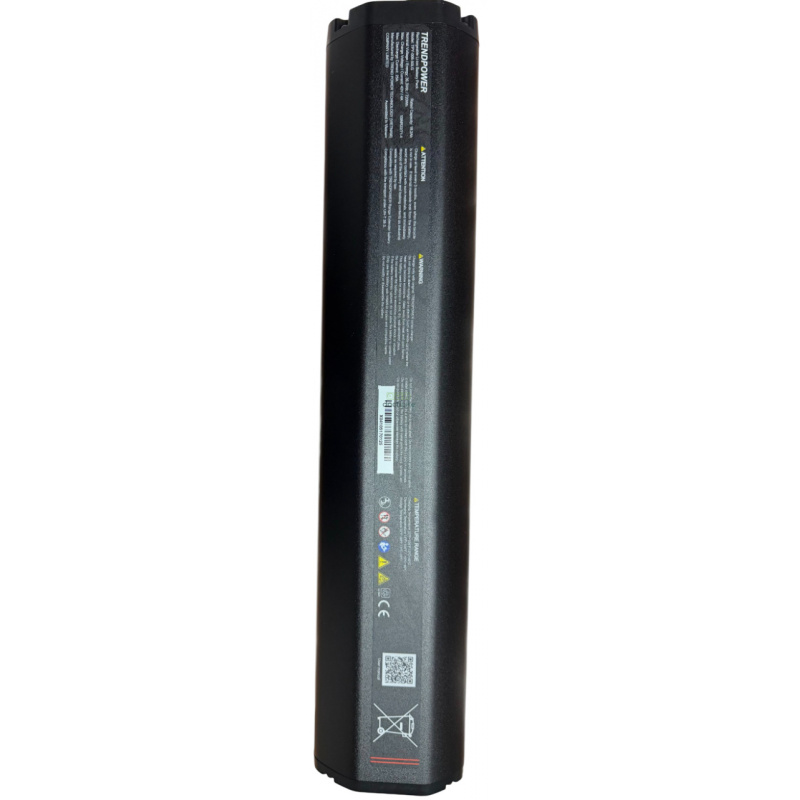

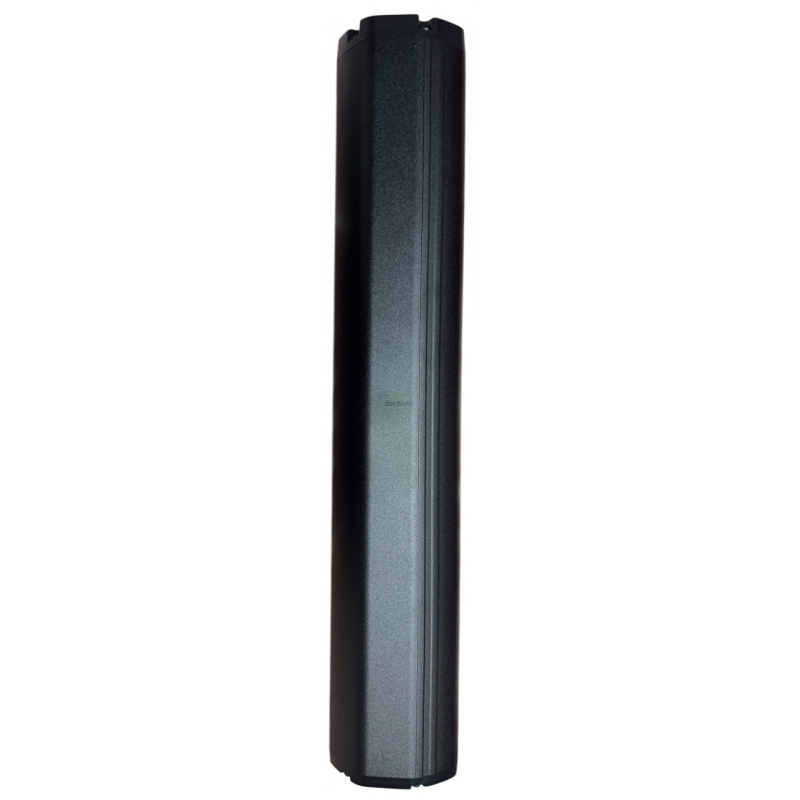

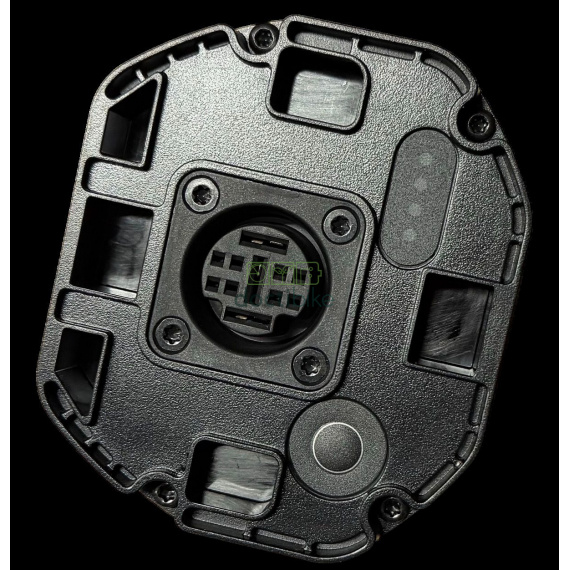

Battery TrendPower 36V 720 Wh - TPY-006-50LG - B44E2062F

TrendPower / Yamaha Simplo Intube 36V 720Wh battery - TPY-006-50LG (B44E2062F)

With a capacity of 720 Wh, the TrendPower / Yamaha Simplo Intube 36V battery makes it possible to enjoy long electric bike outings with reliable, stable power. Equipped with 21700 NMC 50L or SD cells, it offers excellent energy density and an excellent compromise between range, performance and weight.

This battery is designed for electric bikes equipped with a Yamaha PW-S2 or Yamaha PW-X3 36V motor, including certain Haibike and Winora models (model year 2022).

Highlights

• Large 720Wh capacity for extended range
• High-energy-density21700 NMC cells (50L model)
• Yamaha PW-S2 and PW-X3 compatibility
• DiscreetIntube format, perfectly integrated into the frame
• Low weight of approx. 4 kg

Technical specifications

• Brand: TrendPower / Yamaha
• Manufacturer reference : TPY-006-50LG or TPY-006-50SD
• Product code : B44E2062F
• Rated voltage: 36 V
• Energy capacity: 720 Wh
• Capacity: 20 Ah
• Cell type: 21700
• Chemistry: NMC (Nickel Manganese Cobalt)
• Cell model: 50L
• Dimensions: 414 × 84 × 72 mm (L × W × H)
• Weight: approx. 4 kg
• Color: Black

Compatibility

• Motors: Yamaha PW-S2, Yamaha PW-X3
• Drive system: Yamaha 36V
• Bikes: Haibike & Winora, model year 2022
• Compatible with part numbers TPY-006-50LG and TPY-006-50SD (part number must contain "50")

Charging

The battery is recharged with the Yamaha charger for Intube Simplo 720Wh batteries or with the Simplo 4A charger. The charger has a straight battery connector and is supplied with a power cable with EU plug.

Important information

Important: the battery is supplied without a fixing kit. This must be purchased separately. Before ordering, we recommend you check the mechanical compatibility and exact part number of your current battery.
