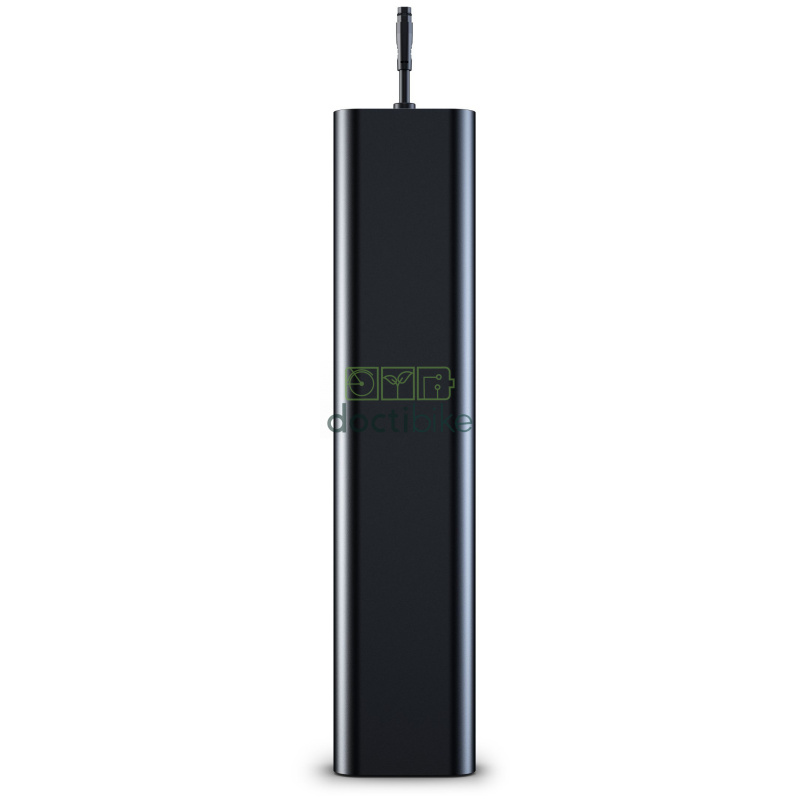

Fazua 430 Wh battery - FIX

Name: Fazua 430 Wh battery - FIX
Brand: Doctibike
SKU: 415300144
Price: 499 EUR
Availability: InStock

Reference 415300144

Last items in stock
Delivery in 3 to 5 business days

Optimize the performance of your electric bike with the Fazua 430 Wh FIX battery , specially designed...
> See more

Optimize the performance of your electric bike with the Fazua 430 Wh FIX battery, specially designed for bikes fitted with the Fazua Ride 60 system.

Compact, high-performance and perfectly integrated into the frame, this battery offers reliable energy capacity to accompany your sporting outings as well as your daily commute.

With a capacity of 430 Wh (36V - 12Ah), this battery guarantees a range suited to light and dynamic electric bikes, while maintaining an excellent balance between power, weight and integration.

Designed to be installed directly in the frame's downtube, it integrates perfectly with the bike's design, preserving its aesthetics and center of gravity.

Important: this battery is fixed and integrated into the frame. It cannot be removed by the user, and requires the intervention of a specialized workshop for any replacement or maintenance operation.

This battery is compatible with electric bikes fitted with the Fazua Ride 60 motor and can be recharged using the Fazua 3A charger for 430 Wh batteries.

Find other Fazua batteries in the category: Fazua battery

To check all specifications and compatibility with your bike, see detailed technical specifications below ↓

Warranty : 2 years

Last items in stock
Delivery in 3 to 5 business days

€415.83

The displayed price including VAT is indicative.
The final amount will be calculated based on the delivery address provided when placing the order.

Free delivery from €299

Notify me when product is back in stock

All good ! We'll send you an email once the product is back in stock.

Fazua 430 Wh battery - FIX

€415.83

Technical specifications
Description

Technical specifications

Voltage

36 V

Power

430 Wh

Location

Integrated

Warranty

2 years

Proposed solution

New battery

Ean13

4260608451666

Description

Technical description

The Fazua 430 Wh FIX battery is a high-performance lithium-ion battery designed for the Fazua Ride 60 assistance system.
It is integrated directly into the bicycle frame, guaranteeing optimum weight distribution and discreet integration into the EAB's design.

Key features

Product : Fazua 430 Wh FIX electric bike battery
Manufacturer: Fazua Fazua
Compatible drive system: Fazua Ride 60
Battery type: Integrated frame battery (fixed)
Technology : Lithium-ion
Voltage : 36 Volts
Capacity: 12 Ah
Energy: 430 Wh
Capacity range: 400 to 499 Wh
Dimensions: 29.5 × 8 × 7.5 cm
Weight: 2.3 kg
Connection type: 6-pin connector plug
Position: Integrated into frame downtube
Manufacturer part no: AS-20A103001A1
EAN : 4260608451666

Compatibility

Compatible with: electric bikes equipped with Fazua Ride 60 motor
Not compatible with: Fazua Ride 50 system

Charging

Compatible charger: Fazua 3A charger for 430 Wh battery

Installation

The battery is permanently installed in the bike's downtube. Unlike some removable batteries, it cannot be removed directly by the user.
Any intervention requires the intervention of a specialized workshop or cycle professional to ensure safe handling of the electrical system.

Expert advice

To preserve the performance and life of your Fazua battery:
- Avoid repeated complete discharges, preferring to recharge when the battery falls below 20-30%.
- Store your bike in a dry, temperate place, ideally between 10 and 20°C.
- Use only the 3A-compatible Fazua charger, designed to optimize recharging of 430 Wh batteries.
- In the event of replacement or diagnosis, contact a Fazua specialist workshop, as the battery is integrated into the frame, and improper handling can damage the system.

A properly maintained battery will preserve the range, the power of the Fazua Ride 60 motor and the overall performance of your electric bike over the long term.
