Phylion, Fully Integrated 36V 500Wh BN18 Battery

Name: Phylion, Fully Integrated 36V 500Wh BN18 Battery
Brand: Phylion
SKU: 415300266
Price: 599 EUR
Availability: InStock

Reference 415300266

Available under 6 weeks
*according to supplier's lead time

IMPORTANT INFORMATION BELOW: Check out this Phylion Fully Integrated 36V 500Wh battery ,...
> See more

Check out this Phylion Fully Integrated 36V 500Wh battery, designed to restore your e-bike’s full range.

This new generation features Samsung SDI cells that offer excellent reliability, optimized lifespan, and consistent performance.

• It replaces older versions equipped with Panasonic cells while maintaining full compatibility with the relevant models(CB04100418 and CB04100437).

• This battery corresponds to the Phylion BN18 model and specifically replaces the older 36V 505Wh EBT360-140P3B4A versions.

• It is also compatible with Rock Machine bikes that use the Phylion BN18 battery

The version currently available is the next-generation model, equipped with Samsung SDI 3.5 Ah cells and a 3-pin SD connector with an adapter.

If you have any questions about compatibility, please feel free to contact us via our contact form before purchasing.

Scroll down this product page to view all the technical specifications for this battery at the bottom of the page ↓

Available under 6 weeks
*according to supplier's lead time

€499.17

The displayed price including VAT is indicative.
The final amount will be calculated based on the delivery address provided when placing the order.

Free delivery from €299

Notify me when product is back in stock

All good ! We'll send you an email once the product is back in stock.

Phylion, Fully Integrated 36V 500Wh BN18 Battery

€499.17

Technical specifications

Voltage

36 V

Power

500Wh

Warranty

2 years

Proposed solution

New battery

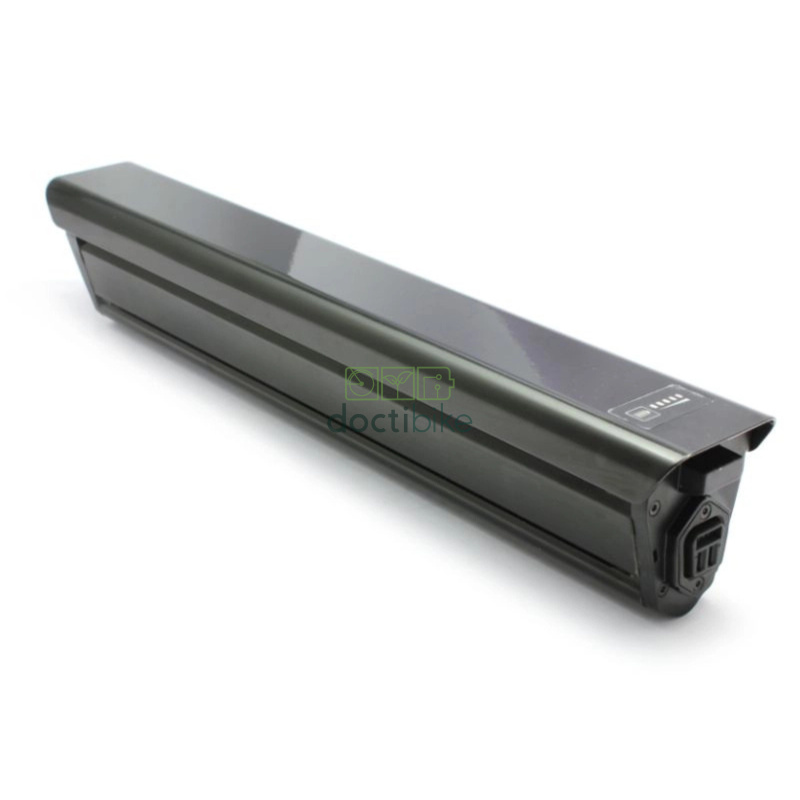

This Phylion Full Integrated 36V 500Wh battery is designed for e-bikes equipped with a BN18-type frame-integrated battery.

It is the latest version of this battery and replaces earlier generations that used Panasonic cells.

• Brand: Phylion
• Battery type: Fully integrated battery
• Compatible model: BN18
• Technology: Lithium-ion
• Nominal voltage: 36 V
• Capacity: 500 Wh
• Internal configuration: 10S4P
• Cells: Samsung SDI 3.5 Ah

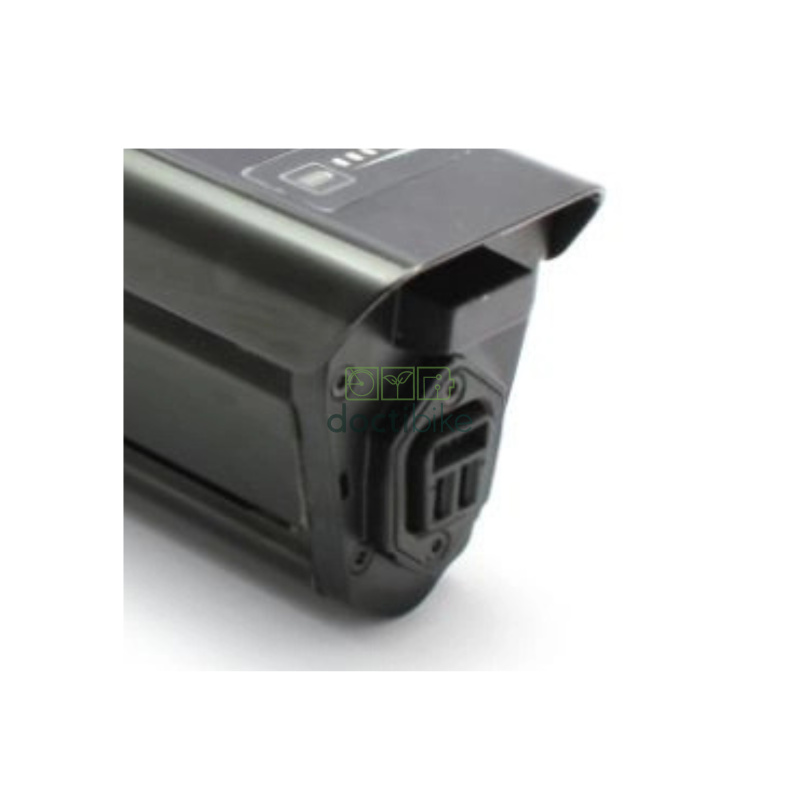

• Connectors: 3-pin SD with adapter
• Replacement battery for the older model Phylion 36V 505 Wh EBT360-140P3B4A
• Replaces older versions equipped with Panasonic cells (CB04100418 and CB04100437)
• New generation featuring Samsung SDI cells for improved reliability and optimized lifespan.

This battery offers excellent range depending on the type of bike, the route, the level of assistance used, and the conditions of use.
Samsung SDI cells are renowned for their build quality, stability, and longevity, ensuring consistent performance over multiple charge cycles.

Before ordering, always check the shape of your battery and its connectors to ensure compatibility with your e-bike.
To maximize its lifespan, we recommend charging the battery with a compatible charger, avoiding repeated full discharges, and storing it in a dry place at room temperature when it won’t be used for an extended period.
If you have any questions about compatibility, please feel free to contact us via our contact form before making a purchase.
