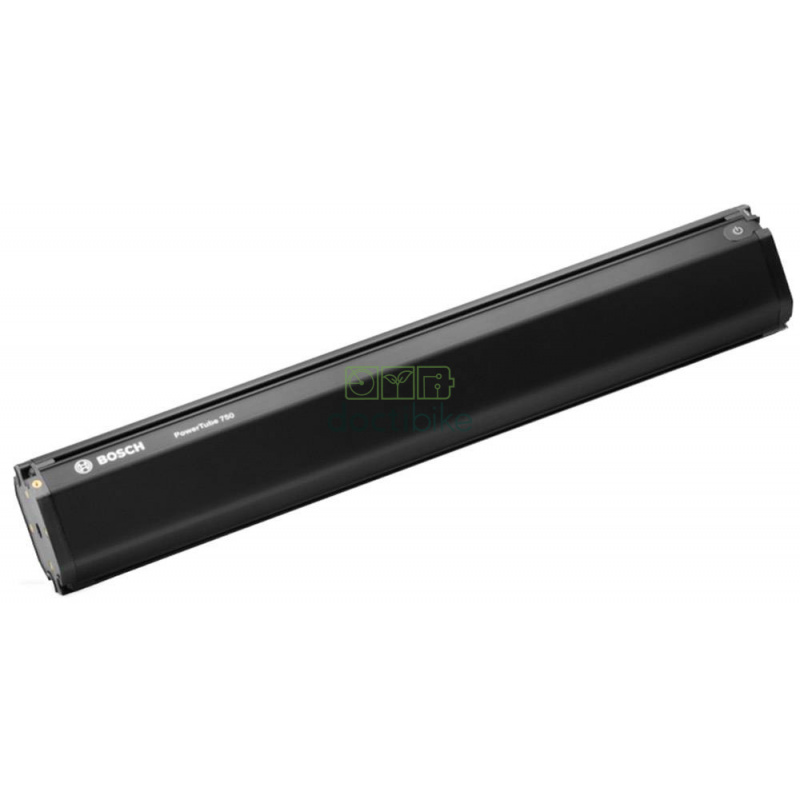

Bosch PowerTube 750 Wh Vertical - Smart System - BBP3771

Bosch PowerTube 750 Wh Vertical Battery - Smart System - BBP3771

Name: Bosch PowerTube 750 Wh Vertical Battery - Smart System - BBP3771
Brand: Doctibike
SKU: 4351-BBP3771P
Price: 499 EUR
Availability: InStock

Reference 4351-BBP3771

In stock
Delivery in 3 to 5 business days

IMPORTANT INFORMATION BELOW: Get the most out of your Bosch with the PowerTube 750 Wh...
> See more

IMPORTANT INFORMATION BELOW:

Get the most out of your Bosch with the PowerTube 750 Wh Vertical Smart System, the most powerful integrated battery in the Bosch eBike Systems lineup.

Designed for demanding cyclists, it allows you to significantly increase your range during your daily commutes, sporty rides, or long e-bike adventures.

With a capacity of 750 Wh (36V - 20.1 Ah), this original Bosch battery offers up to 130 km of range under optimal conditions, while benefiting from the latest innovations of the Bosch Smart System.

Its seamless integration into the frame’s down tube ensures a sleek look, excellent protection, and optimal weight distribution.

Please note: this battery is exclusively a VERTICAL model. It is essential to verify that your bike is equipped with a PowerTube Vertical battery before ordering. Bosch PowerTube Vertical and Horizontal batteries are not interchangeable.

Another important point: the 750 Wh, 625 Wh, 500 Wh, and 400 Wh PowerTube batteries have different dimensions and are not interchangeable with one another, even if they belong to the same Bosch range.

Charger not included.

Compatible only with bikes equipped with the Bosch Smart System.

Not compatible with Bosch DualBattery configurations.

If you have any questions about compatibility, please feel free to contact us via our contact formbefore purchasing.

Scroll down to view the technical specifications at the bottom of the page ↓

Warranty: 3 years

20.1 Ah
100 / 210 km *

* average range, may vary depending on your usage

In stock
Delivery in 3 to 5 business days

€415.83

The displayed price including VAT is indicative.
The final amount will be calculated based on the delivery address provided when placing the order.

Free delivery from €299

Notify me when product is back in stock

All good ! We'll send you an email once the product is back in stock.

Bosch PowerTube 750 Wh Vertical Battery - Smart System - BBP3771

New
|
20.1 Ah
|

€415.83

Compatibility
Technical specifications
Description

Compatibility

Moustache | Lundi 27.3

Technical specifications

Vehicle type

Electric bike

Brand

Moustache

Voltage

36 V

Width

484 mm

Height

84 mm

Depth

65 mm

Weight

4.4

Technology

Lithium

Location

Downtube

Charging time

Warranty

3 years

Advice for use

Do not leave the battery without charge for more than one month, remember to charge it regularly! Avoid cold and damp places to store your battery.

Generation

2022

Battery model

Vertical PowerTube

Description

This battery is sold with: 1 base with 4 pins and a set of 2 keys

Proposed solution

New battery

Colour

Black

Reference

EB1210000W

Compatible with

BBP3771

Smart System

Oui

Ean13

4054289005726

Description

Technical Description

Bosch The PowerTube 750 Wh Vertical Smart System (BBP3771) is the top-of-the-line model in the Bosch line of integrated batteries for e-bikes.
Designed to offer exceptional range while maintaining a format that integrates perfectly into the frame, it is the ideal solution for replacing a worn-out battery or boosting the performance of your compatible e-bike.
Thanks to its latest-generation lithium-ion technology, this battery guarantees a stable power supply, excellent lifespan, and enhanced safety with every use.

Technical Specifications

Brand: Bosch
Series: PowerTube
Model number: BBP3771
Technology: Lithium-Ion
Voltage: 36V
Capacity: 20.1 Ah
Total energy: 750 Wh
Mounting position: Vertical
Compatibility: Bosch Smart System (starting in 2022)
Installation: Integrated into the frame’s down tube
Charger included: No
Doctibike warranty: 3 years

Compatibility

This battery is compatible only with e-bikes equipped with the Bosch Smart System using a PowerTube 750 Vertical Bosch.

Important:

• Compatible only with VERTICAL mounts.
• Not compatible with HORIZONTAL mounts.
• Not compatible with Bosch PowerTube 400 Wh batteries.
• Not compatible with PowerTube 500 Wh batteries ( Bosch ).
• Not compatible with Bosch PowerTube 625 Wh batteries.
• Not compatible with Bosch DualBattery systems.

→ Before placing an order, be sure to check the part number of your original battery as well as its mounting orientation.

Range

With a capacity of 750 Wh, this battery can provide up to approximately 130 km of range under optimal conditions.

Actual range depends in particular on:

• The level of assistance used.
• The total weight being carried.
• The route profile.
• Weather conditions.
• Tire pressure.
• The frequency of stops and restarts.

Safety and Design Bosch

Like all original Bosch batteries, the PowerTube 750 Vertical features numerous protective measures:

• Deep discharge protection.
• Short-circuit protection.
• Overheating protection.
• Intelligent electronic charge and discharge management.

Its sturdy mounting system ensures optimal stability within the frame while making it easy to remove the battery.
A safety mechanism also prevents the battery from falling out, ensuring safe handling during removal.

The integrated grooves on the housing allow for the installation of accessories such as a bottle cage or specific covers, depending on the bike model.

Compatible chargers

To charge this Bosch PowerTube 750 Vertical Smart System battery, use only a compatible Bosch Smart System charger:

→ Using an incompatible charger may damage the battery or limit its performance.

Expert Tips

Confusion between Vertical and Horizontal versions is one of the main causes of errors when purchasing a Bosch PowerTube battery.
Before ordering, carefully check the orientation of your current battery as well as its original capacity.
Although the PowerTube 400, 500, 625, and 750 Wh batteries look similar, their dimensions differ and they are not interchangeable.
To maximize your battery’s lifespan, store it at 50% to 60% charge when not in use, recharge it in a dry environment at room temperature, and remove it from the bike before cleaning.
If you have any questions about compatibility, please feel free to contact us via our contact form before purchasing.
