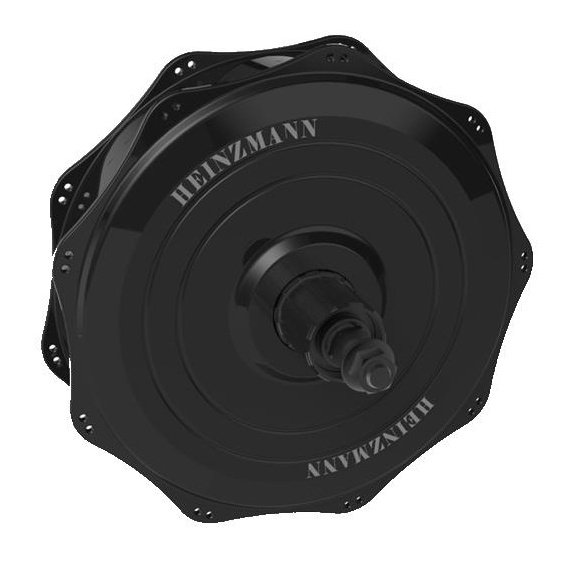

Direct Power rear wheel motor Heinzmann 500 W

Name: Direct Power rear wheel motor Heinzmann 500 W
Brand: Heinzmann
SKU: 4153880-00-170-00
Price: 1799 EUR
Availability: OutOfStock

Reference 4153880-00-170-00

Back soon

Compatible with bikes equipped with the same rear wheel motor Heinzmann E-Bike motor Heinzmann PRA...
> See more

Compatible with bikes equipped with the same rear wheel motor Heinzmann
E-Bike motor Heinzmann PRA 180-30 - 500 W - Black
Key features:
Rated power: 500 W
Speed: 210 to 380 rpm
Rated torque: 22.7 Nm (S2 - 30 min)
Maximum torque (pulse): 60 Nm
Voltage: 36 VDC
Weight: 5.2 kg
Protection rating: IP54 (dust and splashproof)

Additional features :
Recuperation (energy recovery during braking)
Brake disc mounting (left-hand side facing forward)
Cassette compatibility (with cassette sprocket carrier)
Two-way rotation possible

Installation and compatibility :
Rear-wheel mounting
Fork width required: 135 mm
Compatible with spoked wheels
Spoking not included

Specify rim size when ordering (20", 24", 26" or 28")

⚠️ Please note: This 500 W version is only approved for use on public roads with moped / L1e registration.

Warranty : 2 years

Back soon

€1,499.17

The displayed price including VAT is indicative.
The final amount will be calculated based on the delivery address provided when placing the order.

Free delivery from €299

Notify me when product is back in stock

All good ! We'll send you an email once the product is back in stock.

Direct Power rear wheel motor Heinzmann 500 W

€1,499.17

Technical specifications
Description

Technical specifications

Weight

5.2 kg

Warranty

2 years

Colour

Black

Description

Made in Germany - State-of-the-art technology - Ideal for demanding applications
The Heinzmann PRA 180-30 motor stands out for its innovative technology, robust construction and versatility of use. Designed without brushes or gears, it offers silent operation, while reducing wear and maintenance requirements to an absolute minimum.
