52v 25A 800W-A LCD JP [J&P] controller

Introducing the J&P 52V 25A 800W controller with LCD display

The J&P 52V 25A 800W-A controller with LCD is a central element of the electronics of a 52V-equipped electric bike or soft mobility device. It controls energy distribution between the battery and the motor, for consistent assistance and smooth response to acceleration. This e-bike controller is offered as a spare part for replacement or refurbishment of an electric assistance system.

Concrete benefits for the user

By replacing a faulty controller, you can restore assistance operation (starting, power management, electronic-related interruptions) and stabilize the bike's day-to-day behavior. The combination of controller and LCD screen makes system operation easier (information and settings can be read via the display, depending on the original assembly), while maintaining a 52V architecture suited to power-oriented configurations.

Technical specifications

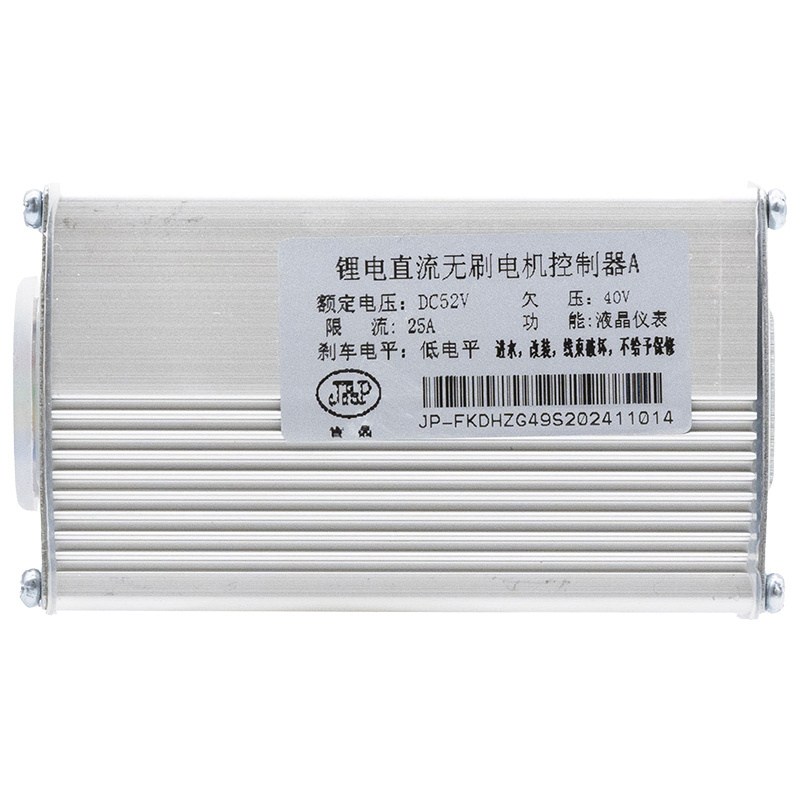

This electric bike controller is designed for 52V, with a rated current of 25A and a power rating of 800W-A. It is supplied/associated with an LCD screen (labelled "LCD JP"), for displaying and controlling the system according to the corresponding configuration. Brand: J&P.

Recommended uses

This 52V J&P controller is suitable for replacing an original controller showing typical symptoms of electronic failure (irregular assistance, lack of assistance, display errors, blackouts). It can also be used as part of an upgrade of an existing 52V electrical assembly, when the aim is to start again from a consistent controller + LCD base.

Compatibility

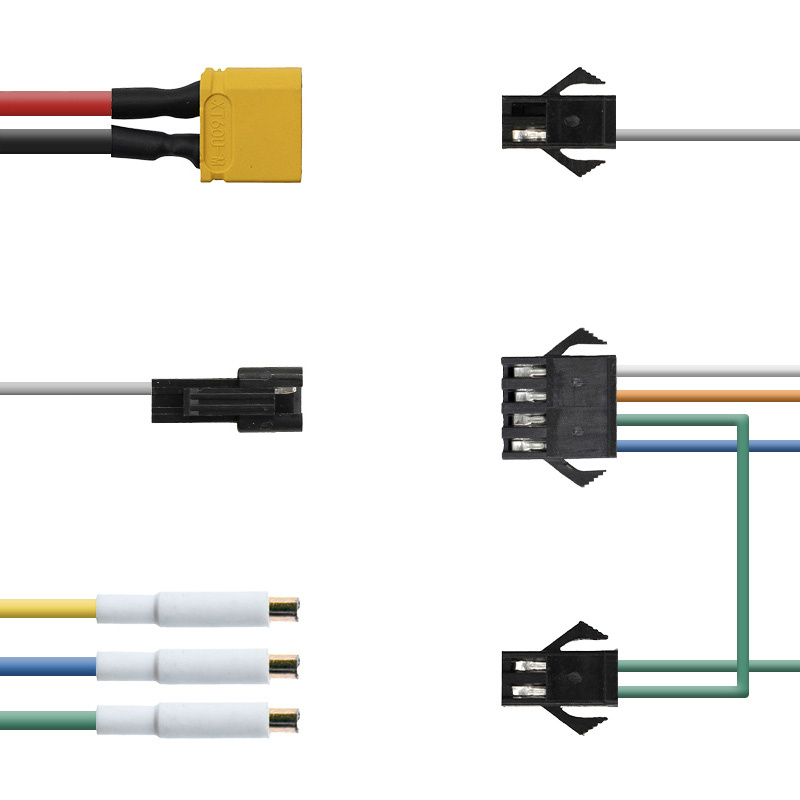

Precise compatibilities (motor type, connectors, LCD communication protocol, sensors, electric braking, gas pedal, wiring harness) are not specified in the information supplied. To avoid any incompatibility, it is essential to compare the voltage (52V), current (25A), connectors and model of the original LCD display before ordering.

Installation and points to watch out for

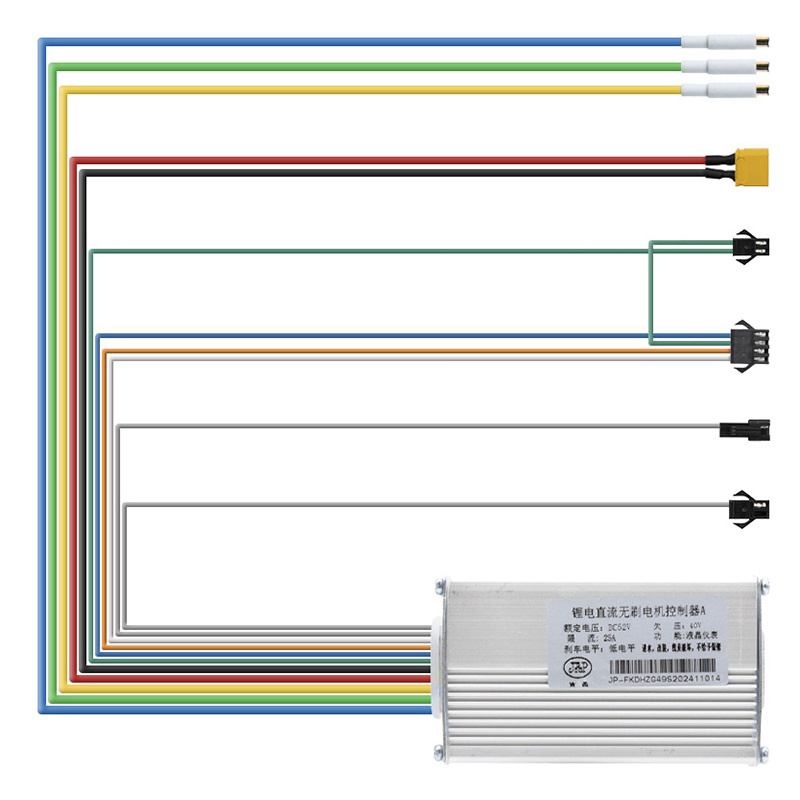

The controller is a sensitive electronic part: a mismatch in voltage, connectors or wiring harness can lead to malfunction, or even damage to the battery, motor or display. Before installation, switch off the power supply, check the condition of the connectors, and ensure that the wiring strictly conforms to the intended assembly (battery, motor phases, sensors, peripherals and LCD).

Expert advice

Before validating your purchase, identify the controller currently fitted (voltage, current, type of connectors) and check that the expected LCD screen corresponds to the model/cluster in place. In the workshop, a simple diagnostic (check connectors, look for oxidation, continuity test, check battery voltage) can often confirm that the fault is actually in the controller, and not in a sensor, motor cable or battery. To maximize reliability, avoid any polarity inversion and protect the controller from infiltration (clean positioning, sheathing, cable routing).
