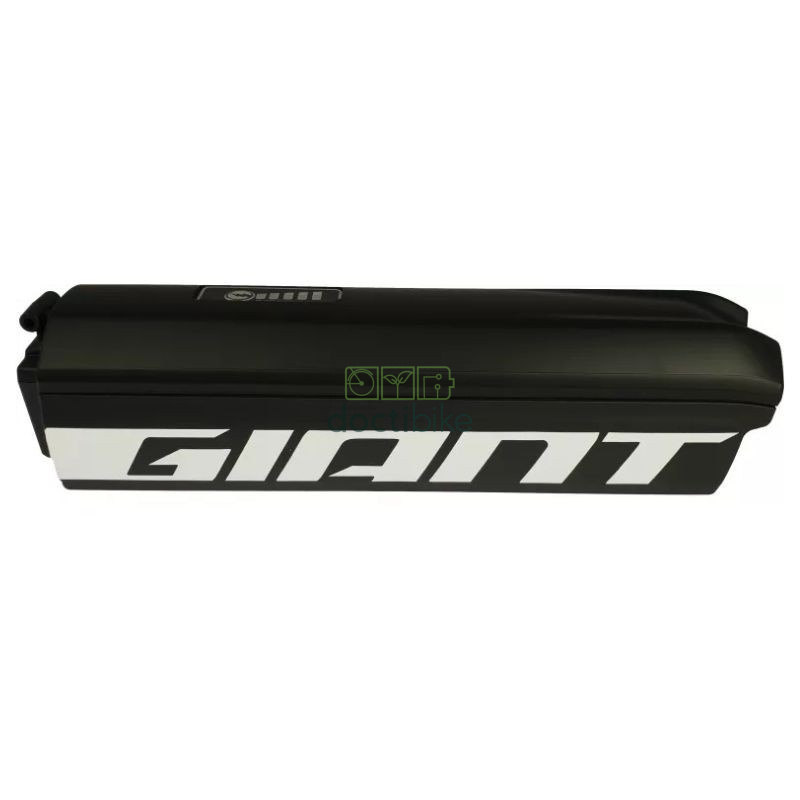

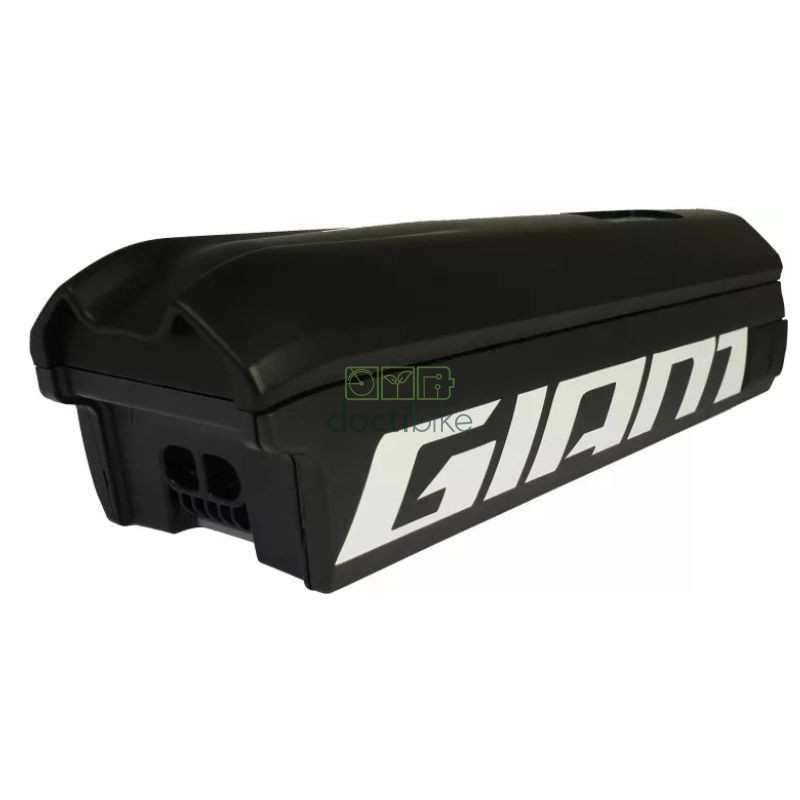

Giant EnergyPak 500Wh Frame Battery

Name: Giant EnergyPak 500Wh Frame Battery
Brand: Doctibike
SKU: 5007-001
Price: 999 EUR
Availability: InStock

Reference 5007-001

Available under 8 weeks
*according to supplier's lead time

IMPORTANT INFORMATION BELOW: Enjoy optimal electric assistance with the Giant EnergyPak...
> See more

IMPORTANT INFORMATION BELOW:

Enjoy optimal electric assistance with the Giant EnergyPak 500 Wh frame battery, designed to power your compatible Giant e-bike.

Thanks to its lithium-ion technology and 500 Wh capacity at 36V, it’s a suitable replacement solution to restore comfort and range during your daily commutes and bike rides.

This Giant EnergyPak frame battery is specifically designed for certain Giant models up to the 2016 model year, as well as several e-bikes from the 2018 lineup. However, compatibility depends on the exact model, mounting system, and connector used.

Warning: Before placing an order, check the part number of your current battery and the configuration of its connectors.

This battery corresponds to manufacturer part number 67200030V and is compatible with the connection system specified by part number 244M36500F-07V.

The Giant 36 V – 4 A fast charger with a 3-pin connector is listed as compatible.

If you have any doubts about compatibility, please feel free to contact us via our contact form before purchasing.

Scroll down to view the detailed technical specifications and the list of compatible models ↓

Warranty: 2 years

Available under 8 weeks
*according to supplier's lead time

€832.50

The displayed price including VAT is indicative.
The final amount will be calculated based on the delivery address provided when placing the order.

Free delivery from €299

Notify me when product is back in stock

All good ! We'll send you an email once the product is back in stock.

Giant EnergyPak 500Wh Frame Battery

€832.50

Compatibility
Technical specifications
Description

Compatibility

Giant | Dirt-E+ 1
Giant | Dirt-E+ 2
Giant | Dirt-E+ 3
Giant | Dirt-E+ 3 Power
Giant | Dirt-E+ 3 Power 2018
Giant | Explore E+0 GTS
Giant | Explore E+ 0 S5 GTS
Giant | Explore E+ 1 GTS
Giant | Explore E+ 1 S5 GTS
Giant | Explore E+ 2 GTS
Giant | Explore E+ 2 S5 GTS
Giant | Explore E+ 3 GTS
Giant | Explore E+ 3 S5 GTS
Giant | Explore GTS Femme 2018
Giant | FastRoad E+
Giant | FastRoad E+ S5
Giant | Full-E+ 0 Pro
Giant | Full-E+1 Pro
Giant | Full-E+ 1 SX Pro
Giant | Full-E+ 1.5 Pro
Giant | Full-E+ 2
Giant | Full-E+ 2 S5
Giant | Full-E+ 3
Giant | Full-E+ 3 S5
Giant | Quick-E+ FS
Giant | Quick-E+ FS S5
Giant | Road-E+ 3
Giant | Road-E+ 3 S5
Giant | ToughRoad E+ GX
Giant | ToughRoad E+ GX S5

Technical specifications

Vehicle type

Electric bike

Brand

Giant

Voltage

36 V

Power

500Wh

Warranty

2 years

Proposed solution

New battery

Description

Technical Specifications for the Giant EnergyPak 500 Wh – 36 V Battery for E-Bikes

The Giant EnergyPak 500 Wh battery is a lithium-ion battery designed for certain Giant e-bikes equipped with a frame-integrated battery.
It can be used to replace a worn-out or defective battery, provided it meets the technical specifications and connection requirements of the original model.
With an energy capacity of 500 Wh and a nominal voltage of 36 V, this battery provides enough power for daily commutes and bike rides.
Actual range varies depending on the assist level used, the route, the weight being carried, the temperature, and the bike’s overall condition.

Technical Specifications

Brand: Giant
Series: EnergyPak
Product Type: Frame battery for electric bikes
Manufacturer Part Number: 67200030V
Energy capacity: 500 Wh
Voltage: 36 V
Technology: lithium-ion
Weight: 3.49 kg

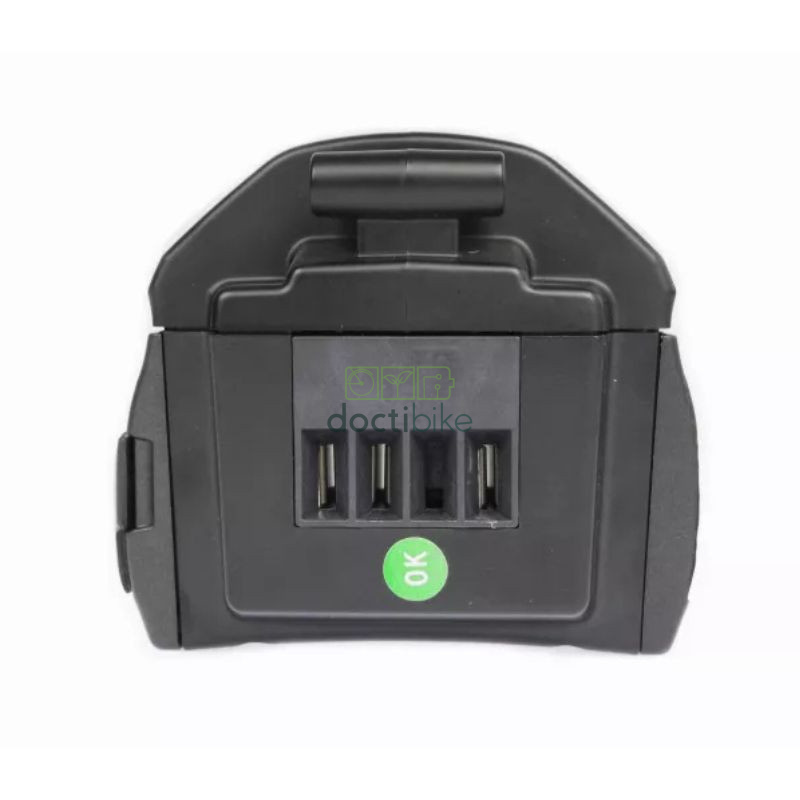

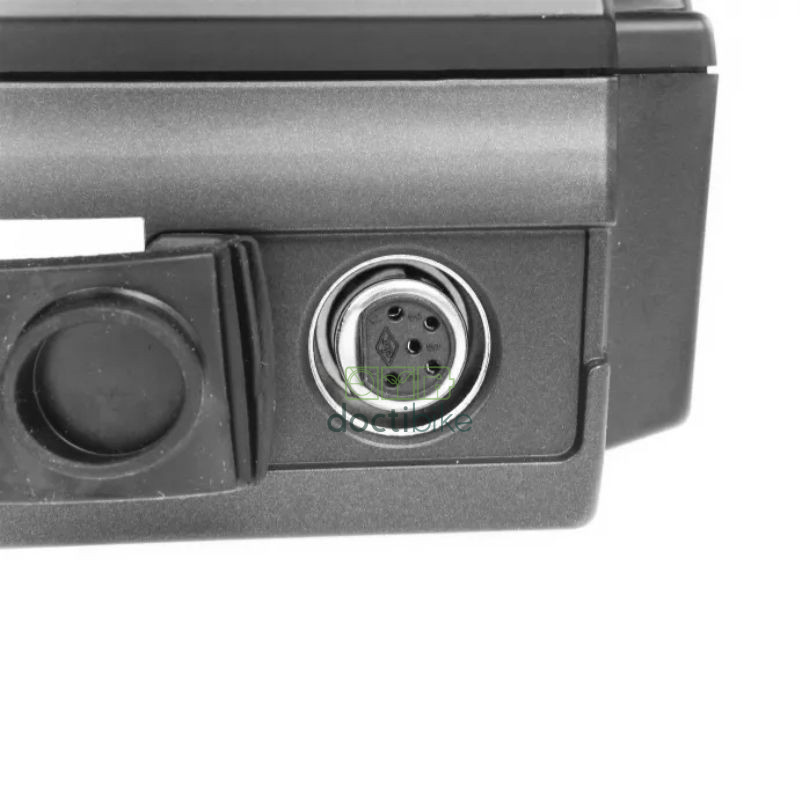

Connectors: 5-pin charging plug and 4-pin bike-side connector (3 pins in use)
Associated connector part number: 244M36500F-07V
Recommended compatible charger: Giant 36 V – 4 A fast charger, 3-pin

Compatibility of the Giant EnergyPak 500 Wh battery

This battery is advertised as compatible with certain Giant e-bikes equipped with a frame-mounted battery. Compatibility must be confirmed based on the model year, exact model, and connectors.

Models up to 2016
Giant e-bikes equipped with a frame-mounted battery, subject to compatibility with the original part number and connectors.
Giant Models – 2018 Model Year

The compatibility list also includes the 2018 Giant Explore GTS Women’s, as well as the 2018 Giant Dirt-E+ 3 and Giant Dirt-E+ 3 Power models.

This list is for reference only: the inclusion of a model on the list does not, by itself, guarantee compatibility for all of its versions.
It is essential to check the part number of the originally installed battery and the connector configuration before purchasing.

Which charger should you use?

The Giant 36 V – 4 A fast charger with a 3-pin connector is listed as compatible with this battery.
Before reusing your current charger, make sure its voltage, connector, and specifications are compatible with the replacement battery.

Expert Advice from Doctibike

Before replacing your Giant EnergyPak battery, compare its manufacturer’s part number, voltage, shape, and connectors with those of the original battery.
An identical capacity of 500 Wh is not enough to guarantee compatibility between two batteries.
To make verification easier, you can send us a photo of the label on your old battery, a photo of its connectors, and the exact model of your Giant bike.
This information will help us guide you toward a suitable solution and minimize the risk of errors when placing your order.
To maximize the lifespan of your lithium-ion battery, use a compatible charger and avoid exposing the battery to extreme temperatures for extended periods.
