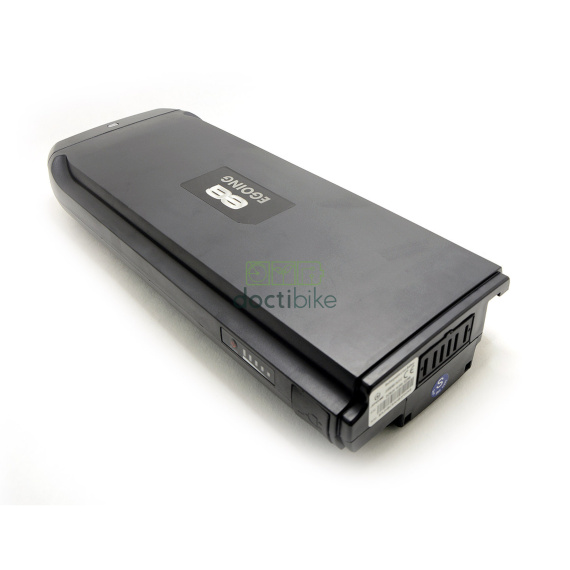

Battery Phylion Joycube SF03 36V 14Ah - Gitane E-Going bike - Luggage rack

Reference C8705058-1-14EA
verified In stock
Delivery in 3 to 5 business days
IMPORTANT INFORMATION BELOW: Get back the original performance of your electric bike with...
> See more
  • IMPORTANT INFORMATION BELOW:

  • Get back the original performance of your electric bike with the Phylion Joycube SF03 36V 14Ah battery.

  • Designed for electric bikes equipped with E-Going motorization, this replacement battery offers an energy capacity of 504 Wh for up to 65 km of average range, depending on the level of assistance used, the terrain, the weight carried and the riding conditions.

  • Installed directly on the bike's luggage rack, this lithium-manganese (LiMn) battery combines reliability, safety and longevity.

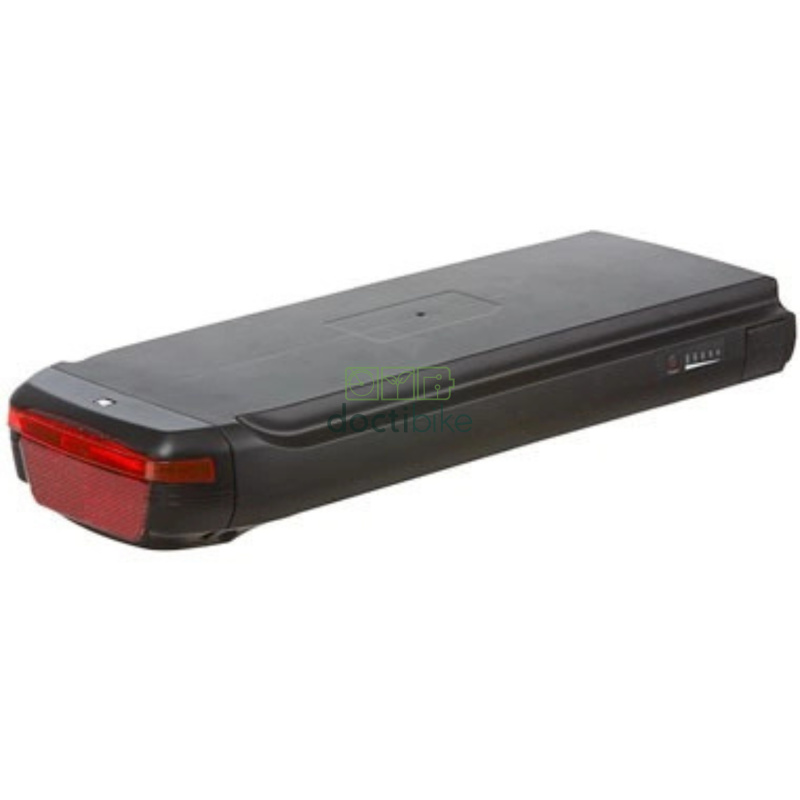

  • It also incorporates a rear light for enhanced visibility on the move.

  • Compatible with many Gitane electric bikes until 2020, it also replaces several references of original Joycube and Gitane batteries.

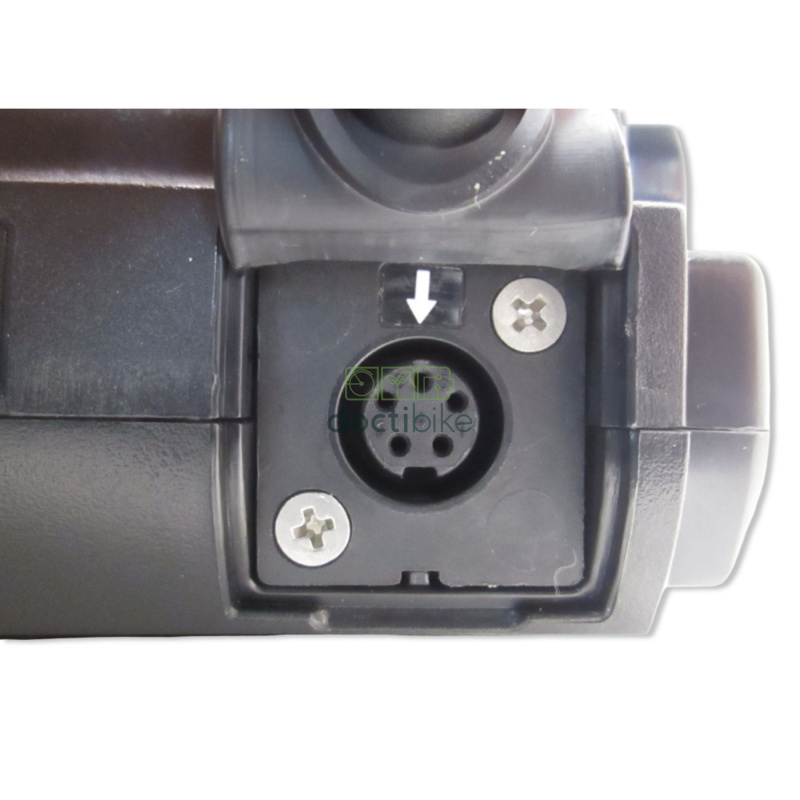

  • Its 5-pin discharge connector guarantees perfect integration with compatible models.

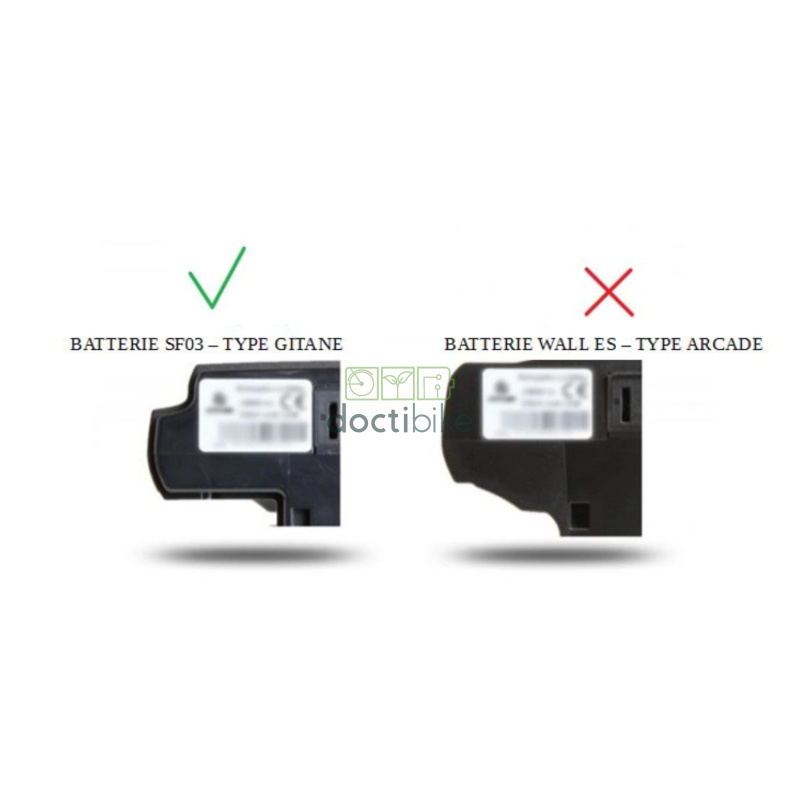

  • Please note: although its shape may resemble that of certain Arcade batteries, it is a different model.
  • We recommend that you carefully check the shape of the battery on the discharge connector side before ordering, by referring to the product photos.

  • Important: this battery works exclusively with its dedicated compatible charger of the same generation, which is this model: C8705058-02
  • Using your old charger may damage the battery or prevent it from working properly.

  • If in doubt, please contact us via this form

  • Discover below all technical specifications and detailed compatibilities ↓

  • Warranty : 2 years
* average range, may vary depending on your usage
verified In stock
Delivery in 3 to 5 business days
Regular price €499.17
  • -€83.34
    • €415.83

    The displayed price including VAT is indicative.
    The final amount will be calculated based on the delivery address provided when placing the order.

    Free delivery from €299

    Delivery in 3 to 5 business days
    Free for orders over €299

    Need help?
    Contact one of our experts !

    Returns within 14 days

    Battery Phylion Joycube SF03 36V 14Ah E-Going - Doctibike
    Battery Phylion Joycube SF03 36V 14Ah - Gitane E-Going bike - Luggage rack
    • New
    • |
    • 14 Ah
    • |
    Regular price €499.17
  • -€83.34
    • €415.83

    Compatibility

    • Gitane | E-Classic
      Gitane | E-Organ XS
      Gitane | E-Zumba
      Gitane | Organ E-Bike
      Gitane | Organ E-Central
      Peugeot | eC03
    Reference C8705058-1-14EA
    verified In stock
    Delivery in 3 to 5 business days

    Technical specifications

    Vehicle type
    Electric bike
    Brand
    Gitane Cycle
    Peugeot Cycle
    Voltage
    36 V
    Width
    150
    Height
    63mm
    Depth
    37,5 cm
    Weight
    3,5 Kg
    Technology
    Lithium
    Location
    Luggage rack
    Charging time
    7h
    Marque compatible
    E-Going
    Warranty
    2 years
    Charger
    new
    Battery model
    Joycube/Phylion SF03
    Proposed solution
    New battery
    Ean13
    5706690605727

    Description

    • Technical data

    • Brand : Phylion
    • Range : Joycube
    • Model : SF03
    • Technology : Lithium-Manganese (LiMn)
    • Voltage : 36V
    • Capacity : 14Ah
    • Total energy: 504 Wh
    • Mounting position: Luggage rack
    • Discharge connector : 5 pins
    • Integrated rear light: Yes
    • New-generation compatible charger: PHYLION 36V 1.8A 5-pin round male connector

    • Dimensions :
    • - Length: 375 mm
    • - Width: 150 mm
    • - Height: 63 mm

    • Operating time

    • With its 504 Wh capacity, this battery provides an average range of up to 65 km, depending on :

    • The level of assistance selected
    • The gradient of the route
    • Weight of rider and load
    • Tire pressure
    • Weather conditions

    • Compatibility

    • This battery is compatible with electric bikes equipped with an E-Going motorization, including :

    • - Gitane E-Going (models from 2015 to 2020)
    • - Gitane E-Classic
    • - Gitane E-Zumba
    • - Gitane Organ E-Bike
    • - Gitane E-Organ XS
    • - Gitane Organ E-Central

    • → It is also compatible with certain Peugeot electric bike models equipped with the same battery generation.

    • Replacing part numbers

    • This battery can replace the following part numbers:

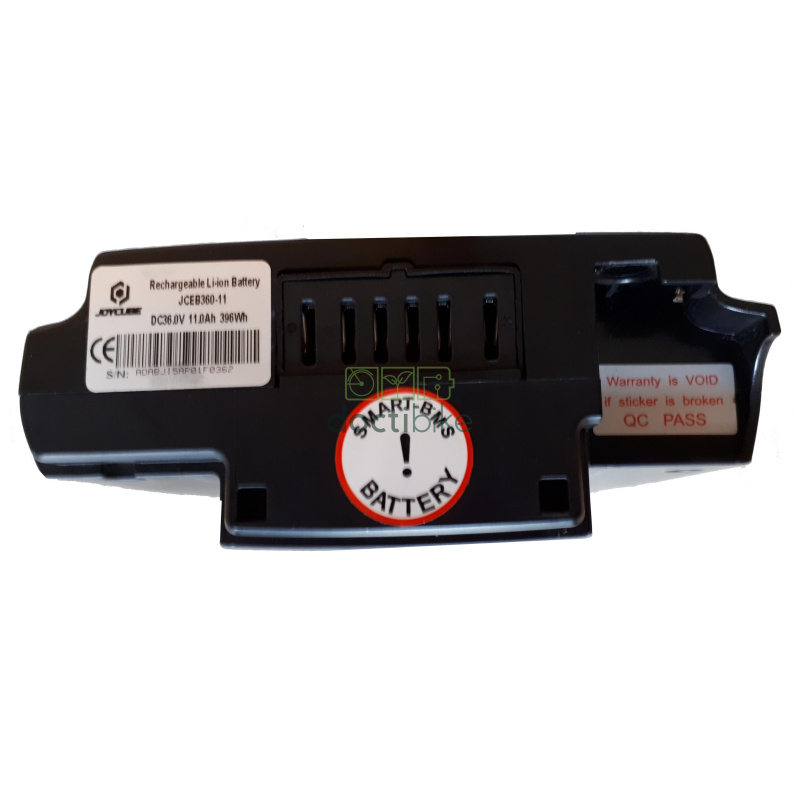

    • - JCEB360-11
    • - JCEB360-8.8
    • - JCEB360-11.6

    • → As well as several compatible original Gitane batteries.

    • Important information

    • Battery to be installed on luggage rack.
    • 5-pin discharge connector.
    • Be sure to check the shape of the battery on the connector side before ordering.
    • This battery visually resembles certain Arcade models, but is not compatible as a replacement.
    • Use of a compatible charger of the same generation is mandatory.
    • Do not reuse your old charger without first checking its compatibility.

    • Our experts' advice

    • Before replacing your battery, take the time to compare the shape of the case, the discharge connector and the part numbers on your original battery.
    • The Phylion Joycube SF03 battery has specific features that distinguish it from visually similar models.
    • To ensure perfect compatibility and preserve the performance of your Gitane or Peugeot electric bike, we recommend that you check all these elements before you buy, and always use the right charger for this generation of battery.
    • If in doubt, contact us via this form
