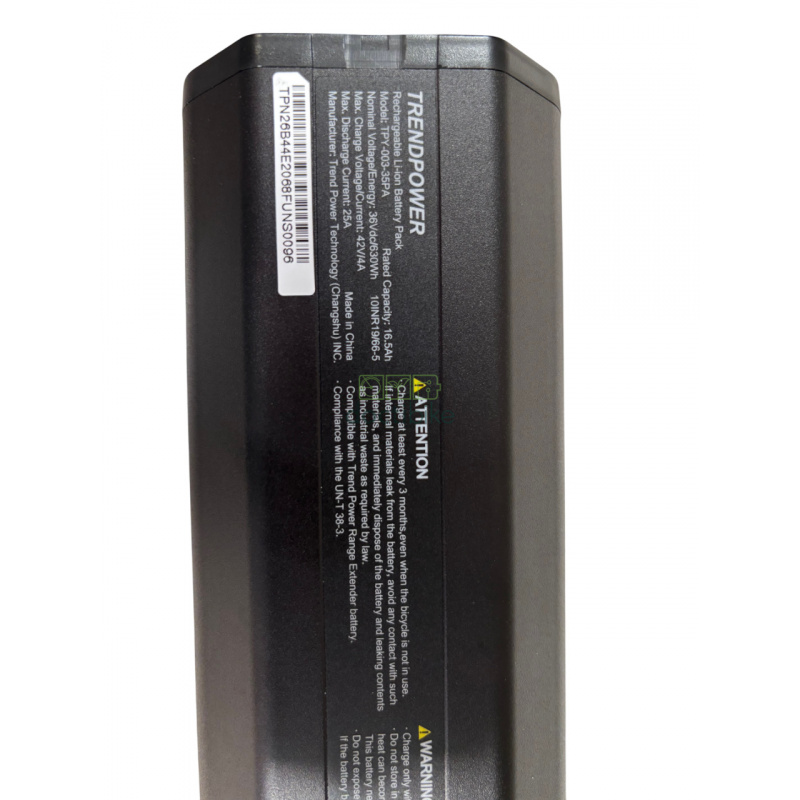

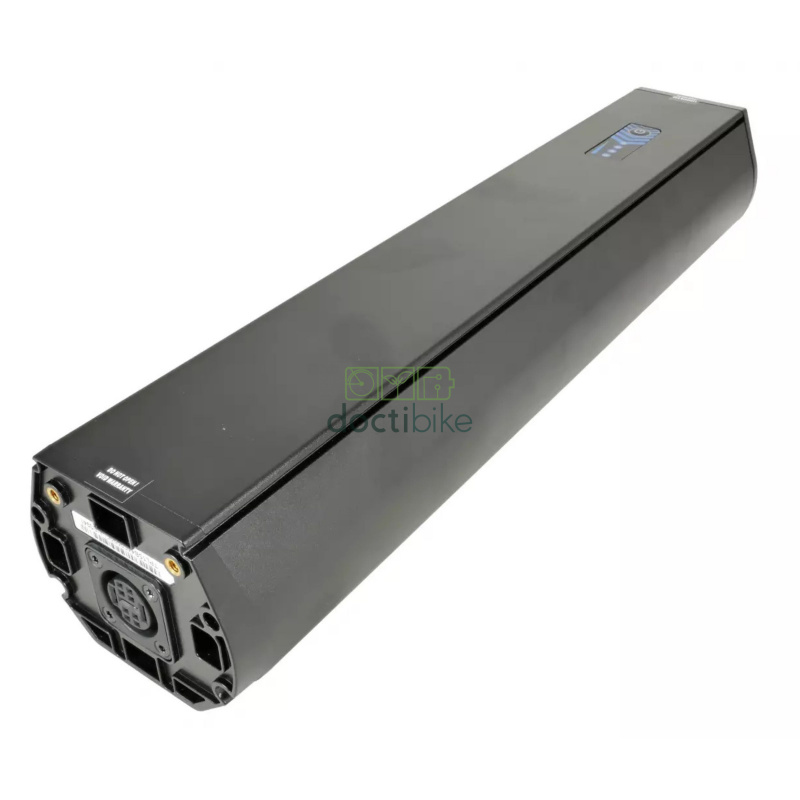

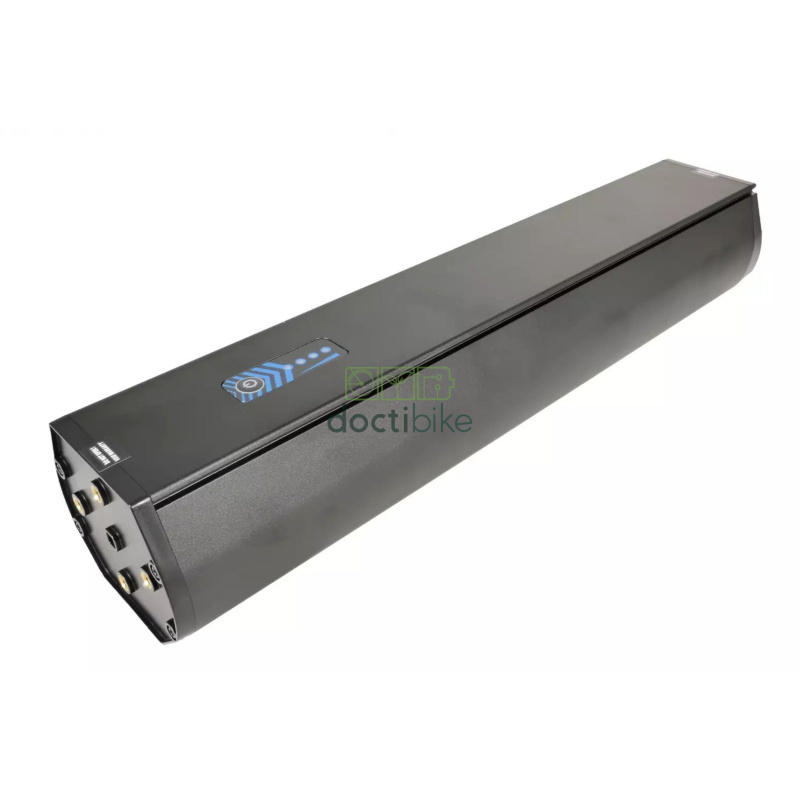

Battery Yamaha Simplo Intube 630Wh (36V 16.5Ah) - TPY-003-35PA
Battery Yamaha Simplo Intube 630Wh (36V 16.5Ah) - TPY-003-35PA
Battery Yamaha Simplo Intube 630Wh (36V 16.5Ah) - TPY-003-35PA
Battery Yamaha Simplo Intube 630Wh (36V 16.5Ah) - TPY-003-35PA
Battery Yamaha Simplo Intube 630Wh (36V 16.5Ah) - TPY-003-35PA
Battery Yamaha Simplo Intube 630Wh (36V 16.5Ah) - TPY-003-35PA
Battery Yamaha Simplo Intube 630Wh (36V 16.5Ah) - TPY-003-35PA
Battery Yamaha Simplo Intube 630Wh (36V 16.5Ah) - TPY-003-35PA

Battery Yamaha Simplo Intube 630Wh (36V 16.5Ah) - TPY-003-35PA

Reference B44E2029F
Available under 3 weeks
*according to supplier's lead time
Give your electric bike maximum range with the Yamaha Simplo Intube 630Wh (36V 16.5Ah) battery,...
> See more
  • Give your electric bike maximum range with the Yamaha Simplo Intube 630Wh (36V 16.5Ah) battery, model TPY-003-35PA.

  • Designed to fit perfectly into your bike's frame, this top-of-the-range battery guarantees reliable, long-lasting performance, ideal for long outings, demanding routes or intensive daily commuting.

  • With its 630 Wh capacity, it lets you cover long distances with smooth, constant assistance.

  • Its Intube format ensures discreet, aesthetic integration directly into the bike frame, while maintaining excellent balance thanks to its weight of around 3.5 kg.

  • This battery is compatible with certain Haibike, Winora and Lapierre electric bikesalready equipped with this 630 Wh model (TPY-003-35PA).

  • Please note: it is not compatible with 500 Wh versions due to different dimensions, which prevents direct replacement.

  • For Haibike electric mountain bikes, installation may require the addition of a specific mounting plate (reference: 41532908).

  • Important: compatibility must be checked carefully, especially for Winora models.
  • It is essential to check the dimensions (385 x 84 x 72 mm), the shape of the battery, the connector and the technical label indicating model TPY-003-35PA.
  • If in doubt, we strongly recommend that you contact us at [email protected] with photos of your battery and information about your bike.

  • Scroll down to discover all the detailed technical specifications and expert advice for optimum use ↓

  • 2-year warranty
Available under 3 weeks
*according to supplier's lead time
€290.83

The displayed price including VAT is indicative.
The final amount will be calculated based on the delivery address provided when placing the order.

Free delivery from €299

Delivery in 3 to 5 business days
Free for orders over €299

Need help?
Contact one of our experts !

Returns within 14 days

Battery Yamaha Simplo Intube 630Wh (36V 16.5Ah) - TPY-003-35PA
Battery Yamaha Simplo Intube 630Wh (36V 16.5Ah) - TPY-003-35PA
€290.83

Compatibility

  • Haibike | AllMtn 1 i630Wh
    Haibike | AllMtn 2 i630Wh
    Haibike | FullNine 6 i630Wh
    Haibike | FullNine 7 i630Wh
    Haibike | FullSeven 6 i630Wh
    Haibike | FullSeven 7 i630Wh
    Haibike | HardNine 6 i630Wh
    Haibike | HardNine 7 i630Wh
    Haibike | HardNine 8 i630Wh
    Haibike | HardSeven 6 i630Wh
    Haibike | HardSeven 7 i630Wh
    Haibike | HardSeven 8 i630Wh
    Haibike | Trekking 7 i630Wh
    Haibike | Trekking 7 i630Wh, cadre bas (low standover)
    Haibike | Trekking 8 i630Wh
    Haibike | Trekking 8 i630Wh, cadre bas (low standover)
Reference B44E2029F
Available under 3 weeks
*according to supplier's lead time

Technical specifications

Vehicle type
Electric bike
Brand
Haibike
Location
Downtube
Warranty
2 years
Proposed solution
New battery
Ean13
4055149278823

Description

  • Technical description

  • The Yamaha Simplo Intube 630Wh (36V 16.5Ah) battery model TPY-003-35PA is designed to offer high power and extended range, while fitting perfectly into the frame of compatible electric bikes.

  • Technical specifications :

  • Model: TPY-003-35PA
  • Voltage: 36 V
  • Capacity: 16.5 Ah
  • Energy: 630 Wh
  • Type: Intube battery (integrated into frame)
  • Dimensions: 385 x 84 x 72 mm (length x width x height)
  • Weight: approx. 3.5 kg
  • Installation: integrated into bike frame
  • Compatibility: Haibike, Winora and Lapierre bikes equipped with identical 630 Wh battery as standard

  • Key compatibility points:

  • Not compatible with Yamaha Intube 500 Wh batteries (dimensional differences)
  • For some Haibike electric mountain bikes, a specific mounting plate (ref. 41532908) may be required
  • Compatibility not guaranteed with all Winora models: must be checked

  • Items to check before purchase:

  • Model indicated on battery: TPY-003-35PA
  • Exact battery dimensions
  • General shape and integration into frame

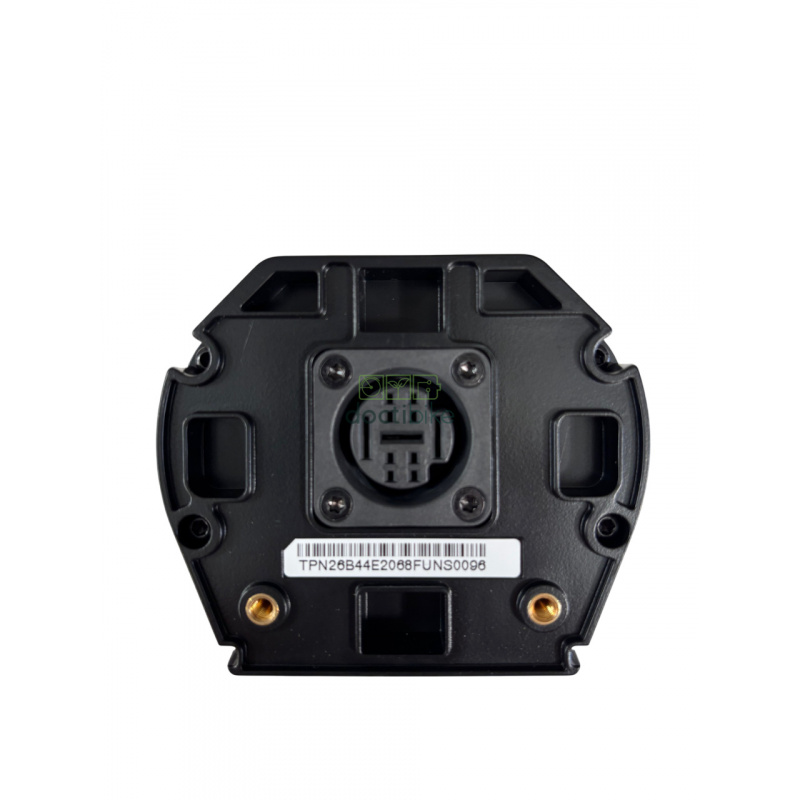

  • Type and shape of connector
  • Original technical label

  • → In case of doubt, we strongly advise you to contact customer service, providing :

  • Photos of the battery (overall view, label, connector)
  • Bike make and model

  • Highlights:

  • Extended autonomy for long outings and intensive use
  • Perfect integration into the frame for a streamlined design
  • Excellent stability and weight distribution
  • Original battery complies with manufacturer's requirements

  • 630 Wh battery, compatible with the following Haibike models:

  • - AllMtn 1 i630Wh, 11 speeds - Shimano Deore
  • - AllMtn 2 i630Wh, 12 speeds - SRAM SX Eagle
  • - FullSeven 6 i630Wh, 12 speed - Shimano Deore
  • - FullSeven 7 i630Wh, 12 speed - SRAM NX Eagle
  • - FullNine 6 i630Wh, 12 speed - Shimano Deore
  • - FullNine 7 i630Wh, 12 speed - SRAM NX Eagle
  • - HardSeven 6 i630Wh, 10 speed - Shimano Deore
  • - HardSeven 7 i630Wh, 12 speed - Shimano SLX
  • - HardSeven 8 i630Wh, 12 speeds - Shimano XT
  • - HardNine 6 i630Wh, 10 speeds - Shimano Deore
  • - HardNine 7 i630Wh, 12 speeds - Shimano SLX
  • - HardNine 8 i630Wh, 12 speeds - Shimano XT
  • - Trekking 7 i630Wh, 11 speeds - Shimano Deore
  • - Trekking 7 i630Wh, low standover, 11 speeds - Shimano Deore
  • - Trekking 8 i630Wh, 12 speeds - Shimano XT
  • - Trekking 8 i630Wh, low standover, 12 speeds - Shimano XT

  • Expert advice:

  • To ensure the longevity of your battery, avoid repeated full discharges and prefer regular recharging.
  • Store your battery in a dry environment, at a moderate temperature, and away from extreme variations.
  • Before installation, make sure the battery is perfectly compatible with your bike, especially for models requiring a mounting plate.
  • A thorough check will help you avoid any integration or operating problems.
  • Finally, to preserve performance over the long term, clean connectors regularly and make sure they stay clean and dry.
