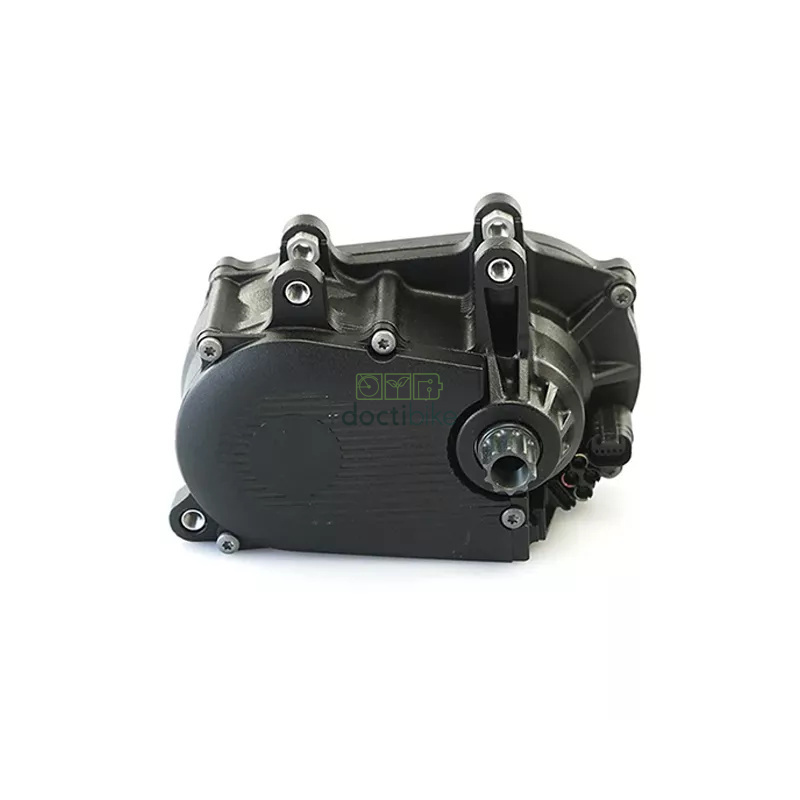

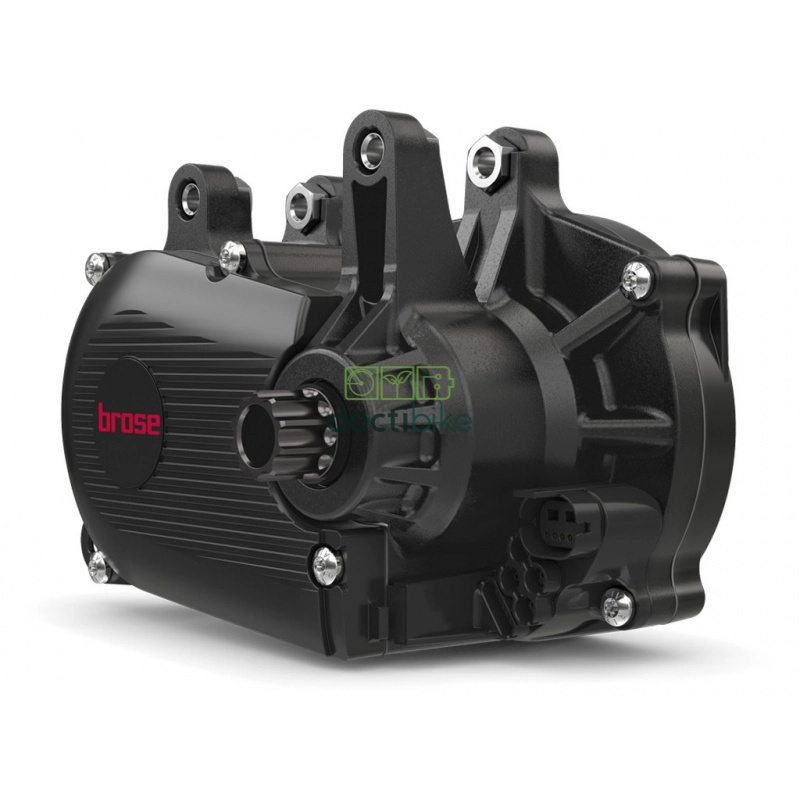

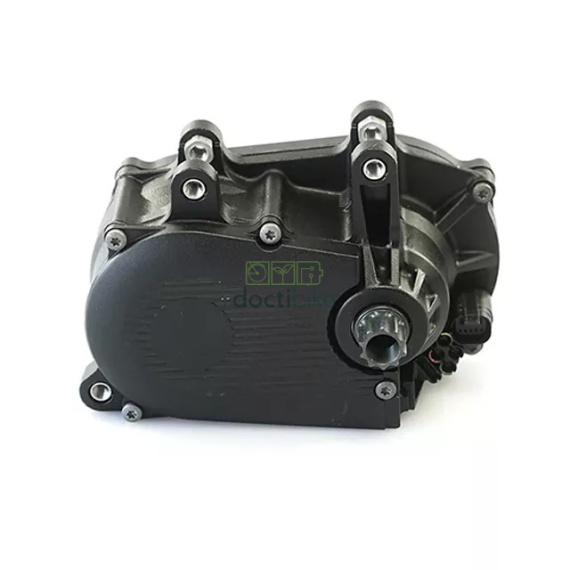

Drive Unit 25 km/h - Brose T Mag Vertical (NU) - E41222-200

Reference E41222-200

In stock
Delivery in 3 to 5 business days

CHECK COMPATIBILITY BEFORE ORDERING This motor replaces a Brose Drive T Mag vertical E41222-200 ....
> See more

CHECK COMPATIBILITY BEFORE ORDERING

This motor replaces a Brose Drive T Mag vertical E41222-200.

It should not be confused with:

Horizontal Drive T Mag E57026-200
Drive S Mag
Drive C Mag
Drive TF
older generations of Drive T with a different mounting method or part number.

How to check compatibility?
Before ordering, check the part number on your motor’s label. If your motor has the part number E41222-200, this motor is compatible with your model. If in doubt, send us a photo of your motor’s label and its mounting bracket.

In stock
Delivery in 3 to 5 business days

€832.50

-20%

€666.00

The displayed price including VAT is indicative.
The final amount will be calculated based on the delivery address provided when placing the order.

Free delivery from €299

Notify me when product is back in stock

All good ! We'll send you an email once the product is back in stock.

Drive Unit 25 km/h - Brose T Mag Vertical (NU) - E41222-200

€832.50

-20%

€666.00

Description

Description

Characteristic	Value
Brand	Brose
Series	Drive T Mag
Part Number	E41222-200
Type	Pedal/Central Motor
Orientation	Vertical
Rated voltage	36 V
Rated continuous power	250 W
Maximum torque	70 Nm
Maximum assistance	320%
Assistance	Up to 25 km/h
Walk Assist	Up to 6 km/h
Weight	2.9 kg
Housing	Magnesium
Dimensions (vertical version)	198 × 137 × 99 mm (housing width)
Width at the axis	150 mm
Protection rating	IP56
Motor type	Internal-rotor brushless synchronous motor
Warranty	2 years
