Nakamura and Sunn 36V 12.8Ah Bike Battery - 3-pin

Nakamura and Sunn 36V 12.8Ah Bike Battery - 3-pin

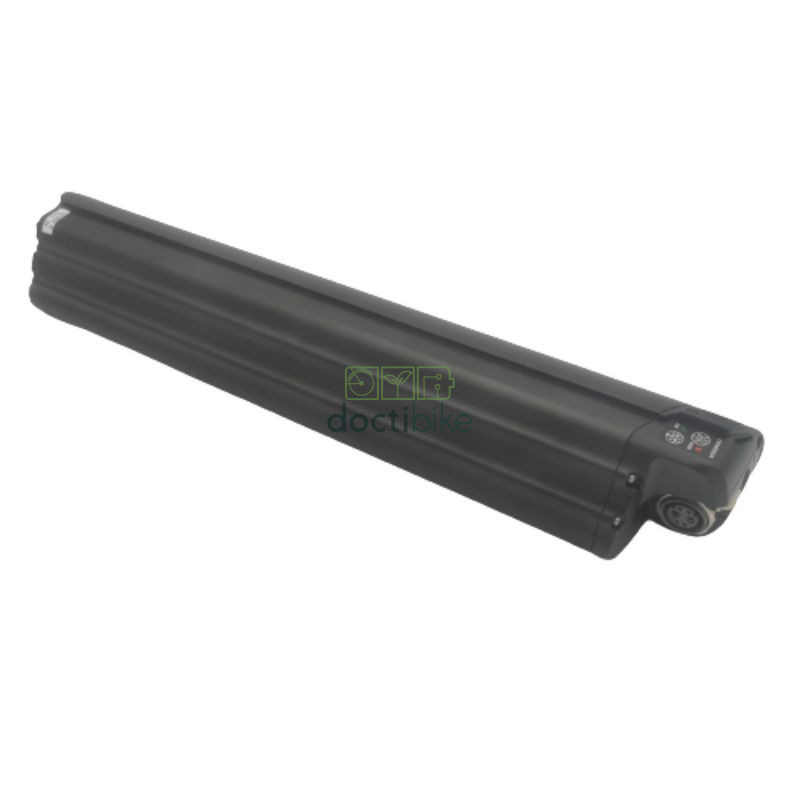

Name: Nakamura and Sunn 36V 12.8Ah Bike Battery - 3-pin
Brand: Doctibike
SKU: NK3741004-3BP
Price: 389 EUR
Availability: InStock
Rating: 5 (1 reviews)

Reference NK3741004-3B

In stock
Delivery in 3 to 5 business days

IMPORTANT INFORMATION BELOW: Give your electric bike a new lease on life with this...
> See more

IMPORTANT INFORMATION BELOW:

Give your electric bike a new lease on life with this Nakamura and Sunn 36V 12.8Ah battery.

With a capacity of 460 Wh, it provides a range of up to 55 km on average, depending on usage conditions, offering reliable power for both your daily commutes and recreational rides.

Designed for e-bikes with a semi-integrated battery, it ensures a simple replacement.

This battery is equipped with a 3-pin charging connector and uses UART communication. It’s important to verify that your bike is compatible before placing your order.

The charger is not included with this battery. If you also need to replace your charger, you’ll need to use this model: Feu Vert E-Rox 42V 4Ah Bike Charger – 3-pin connector (butterfly shape)

This battery can also be replaced with the Nakamura and Sunn 36V 12.8Ah Bike Battery - DC 2.1, provided you also replace the charger with the compatible 42V-2A-5521-DC2.1 model.

If you have any questions about compatibility, please feel free to contact us via our contact form before making a purchase.

Scroll down the product page to view the technical specifications at the bottom of the page ↓

Warranty: 2 years

12.8 Ah
65 / 130 km *

* average range, may vary depending on your usage

In stock
Delivery in 3 to 5 business days

€324.17

The displayed price including VAT is indicative.
The final amount will be calculated based on the delivery address provided when placing the order.

Free delivery from €299

Notify me when product is back in stock

All good ! We'll send you an email once the product is back in stock.

Nakamura and Sunn 36V 12.8Ah Bike Battery - 3-pin

New
|
12.8 Ah
|

€324.17

Compatibility
Technical specifications
Description
Customer reviews

Compatibility

Nakamura | Crossover GT
Nakamura | Crossover V
Nakamura | E-Crossover 2019-2022
Nakamura | E-Crossover V
Nakamura | E-Crossover XV
Nakamura | E-Gravel
Nakamura | E-Summit 700 2019-2022
Nakamura | E-Summit 740
Nakamura | E-Summit 740 Open
Nakamura | E-Summit 940
Nakamura | E-Summit EVO 2019-2022
Nakamura | E-Summit EVO MAX 2019-2022
Nakamura | E-Summit SUV

Technical specifications

Vehicle type

Electric bike

Brand

Nakamura
Sunn

Voltage

36 V

Technology

Lithium

Location

Semi-integrated

Warranty

2 years

Charger

new

Colour

Black

Communication protocol

UART

Ean13

3700934501716

Description

Technical Description

The Nakamura and Sunn 36V 12.8Ah bike battery is specifically designed to replace the original battery in many Nakamura and Sunn e-bikes equipped with a semi-integrated frame system.
Its technology ensures a stable power supply and a battery life suitable for regular use.

Technical Specifications

Lithium-ion battery for electric bikes
Voltage: 36 V
Capacity: 12.8 Ah
Energy: 460 Wh
Average range: up to 55 km (depending on assist level, terrain, load, and usage conditions)
Position: Battery semi-integrated into the frame
Communication: UART
Charging connector: 3-pin plug
Compatible with many Nakamura and Sunn e-bikes equipped with this original battery
Charger not included

Compatibility and Replacement

This battery can be replaced with the Nakamura and Sunn 36V 12.8Ah Bike Battery - DC 2.1.
If replacing with this DC 2.1 version, you will need to use the 42V-2A-5521-DC2.1 charger.
If you wish to replace the charger for this 3-pin battery, you will need to use this model:7282000102497

Expert Advice

Before placing an order, check the voltage, capacity, communication type (UART), and charging connector of your original battery to ensure full compatibility with your e-bike. If you plan to replace both the battery and the charger at the same time, be sure to select the appropriate accessories.
To maintain your battery’s performance, recharge it regularly, avoid deep discharges, and store it in a dry place at a moderate temperature when the bike is not in use for an extended period.
