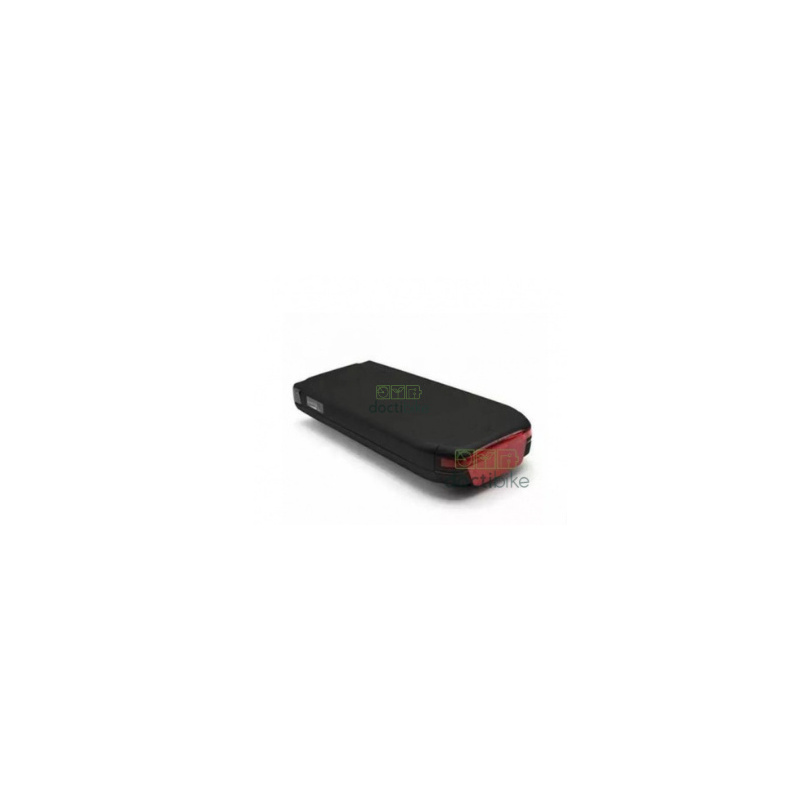

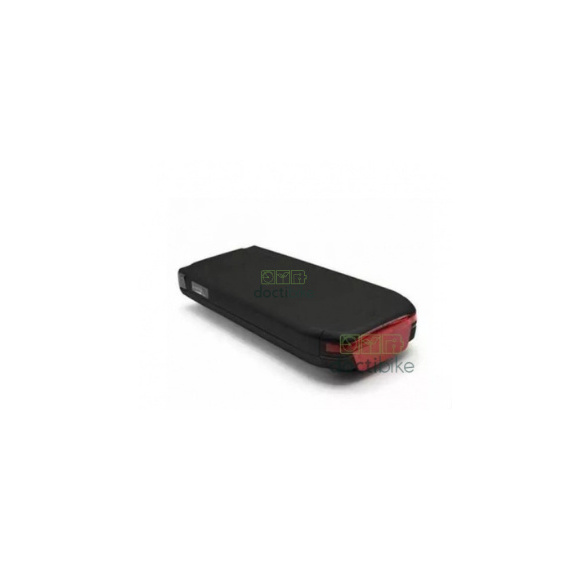

Phylion SF03 Battery for Fischer Cita Bike - 36V 14.5Ah - CAN BUS
Reference 1814-PHY-V02-BATT
In stock
Delivery in 3 to 5 business days
IMPORTANT INFORMATION BELOW:
Restore your Fischer e-bike’s full range with the Joycube...
> See more
> See more
- IMPORTANT INFORMATION BELOW:
- Restore your Fischer e-bike’s full range with the Joycube SF03 36V 14.5Ah 522Wh CAN Bus “ Phylion ” battery—a high-performance lithium-ion battery designed for compatible Fischer Cita e-bikes from 2022 onward.
- With a capacity of 522Wh, this battery supports you on your daily commutes and e-bike rides. Its Smart-BMS with CAN Bus communication ensures intelligent cell management and includes protections against overcharging, overheating, and short circuits.
- Mounted on the rear rack, it’s the ideal solution for replacing your old Fischer battery and restoring a range that meets your needs.
- Compatible in particular with the following Fischer e-bikes, starting in 2022:
- Fischer Cita ER 1804
- Fischer CITA ECU 2200
- Fischer Cita Retro 2.0
- Fischer Cita 1.0
- Compatible charger: Joycube 36V 1.8A 3-pin male Phylion —New Generation

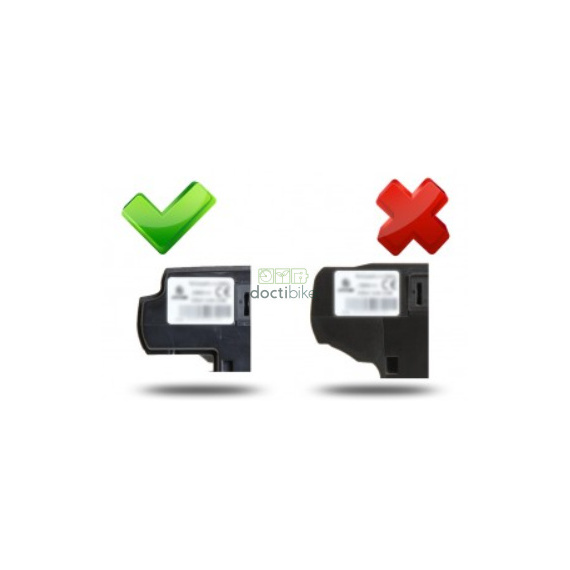

- Warning: This battery uses a CAN Bus communication protocol. Be sure to check the part number of your original battery, its mounting system, and its connectors before ordering. A battery with the same voltage and shape is not necessarily compatible.
- If you have any doubts about compatibility, please feel free to contact us via our contact form before purchasing.
- Scroll down the product page to view all technical specifications and our usage tips at the bottom of the page ↓
- Warranty: 2 years
In stock
Delivery in 3 to 5 business days
Delivery in 3 to 5 business days
Free for orders over €299
Need help?
Contact one of our experts !
Returns within 14 days
Phylion SF03 Battery for Fischer Cita Bike - 36V 14.5Ah - CAN BUS
€215.83
Compatibility
Fischer | CITA ECU 2200
Fischer | Cita 1.0
Fischer | Cita ER 1804
Fischer | Cita Retro 2.0
Reference 1814-PHY-V02-BATT
In stock
Delivery in 3 to 5 business days
Technical specifications
Description

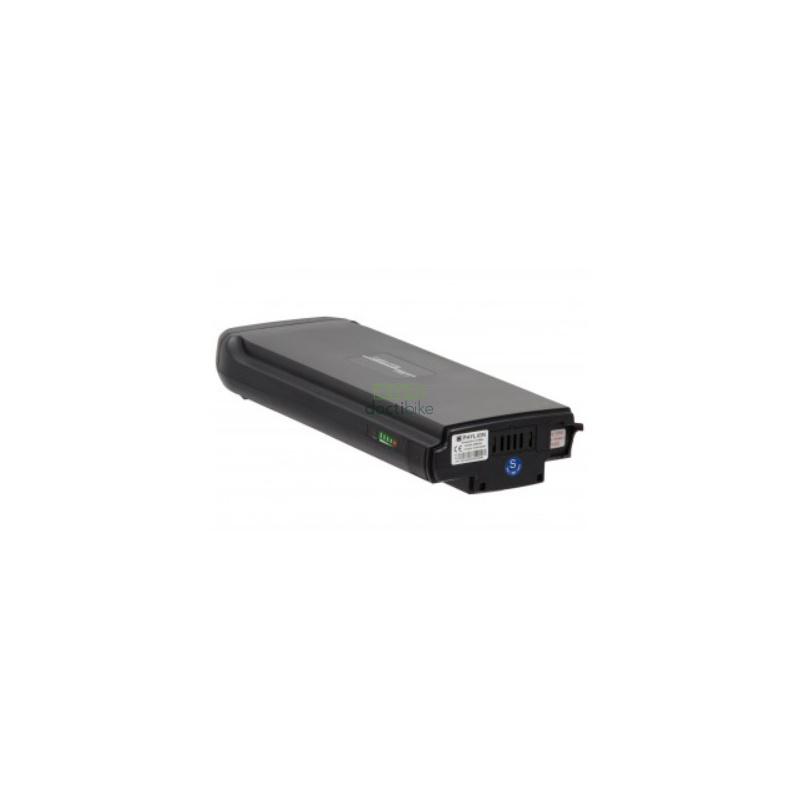

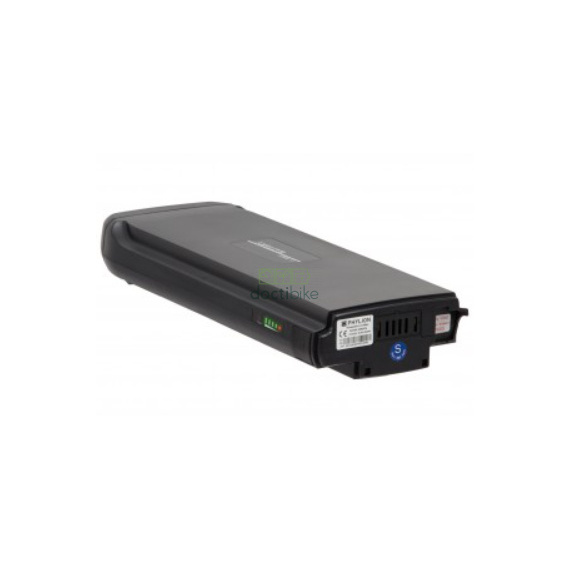

- Phylion Joycube SF03 36V 14.5Ah 522Wh CAN Bus Battery for Fischer Cita Electric Bikes
- The Joycube SF03 36V 14.5Ah Phylion battery is a lithium-ion battery designed for compatible Fischer Cita e-bikes, including certain models released starting in 2022.
- With an energy capacity of 522Wh, it provides sufficient power for urban commutes, daily trips, and recreational rides.
- Its Smart-BMS CAN Bus system provides electronic battery management and enables communication with compatible bike components.
- Designed for installation on the rear rack, this battery is a replacement solution to restore the performance of your Fischer e-bike.
- Technical Specifications:
- Brand: Phylion
- Model: Joycube SF03 / SF-03
- Product type: Battery for electric bikes
- Compatible bike brand: Fischer
- Compatible Series: Fischer Cita
- Technology: Lithium-ion
- Nominal voltage: 36V
- Capacity: 14.5Ah
- Energy: 522 Wh
- Management system: Smart-BMS
- Communication protocol: CAN Bus
- Cell part number: N18650CL-29
- Charging connector: 3-pin Pentagon plug
- Location: Rear luggage rack
- Width: 150 mm
- Height: 64 mm
- Depth: 375 mm
- Weight: Approximately 3.2 kg
- Built-in protections: Overheating, overload, and short circuits
- Warranty: 2 years
- Compatibility with Fischer Cita e-bikes
- This Phylion SF03 CAN Bus 36V battery is specifically designed for the following Fischer models, starting in 2022:
- Fischer Cita ER 1804
- Fischer CITA ECU 2200
- Fischer Cita Retro 2.0
- Fischer Cita 1.0
- Compatibility depends on the bike’s generation, its electronic system, and the battery model originally installed.
- Important: Not all Fischer Cita bikes are necessarily equipped with a battery that uses the CAN Bus protocol.
- Before ordering, check the following:
- The part number of your old battery.
- The nominal voltage of 36V.
- The CAN Bus communication system.

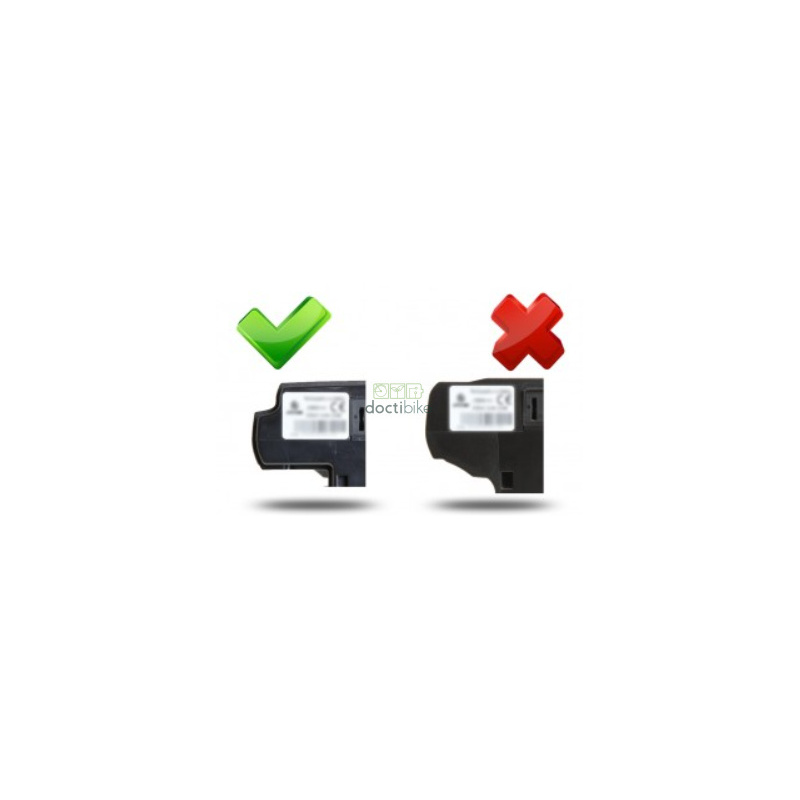

- The case format Phylion r Joycube SF03.
- The dimensions and the mounting system for the luggage rack.
- The 3-pin Pentagon charging connector.
- A 522Wh battery to restore your Fischer bike’s range
- With its 36V and 14.5Ah, the Phylion Joycube SF03 battery has an energy capacity of 522Wh.
- It powers the electric motor of your compatible Fischer bike and provides assistance tailored to your rides.
- Actual range varies depending on several factors:
- The selected level of electric assistance.
- The weight of the rider and any equipment being carried.
- The terrain and elevation changes along the route.
- Weather conditions and temperature.
- Tire pressure.
- The overall condition of the bike and the battery.
- This capacity offers a good balance between range, size, and weight for regular use.
- Smart-BMS CAN Bus: Intelligent Battery Management
- The Phylion SF03 36V 14.5Ah battery features a Smart-BMS (Battery Management System) electronic management system.
- This system helps ensure the battery functions properly through several essential features:
- Cell balancing: promotes an even distribution of charge among the cells.
- Overcharge protection: limits the risks associated with excessive charging.
- Overheating protection: monitors operating temperature conditions.
- Short-circuit protection: helps protect electrical components.
- CAN Bus communication: enables the exchange of information with the bike’s compatible electronic system.
- This intelligent management helps preserve the battery’s performance and lifespan under normal usage conditions.

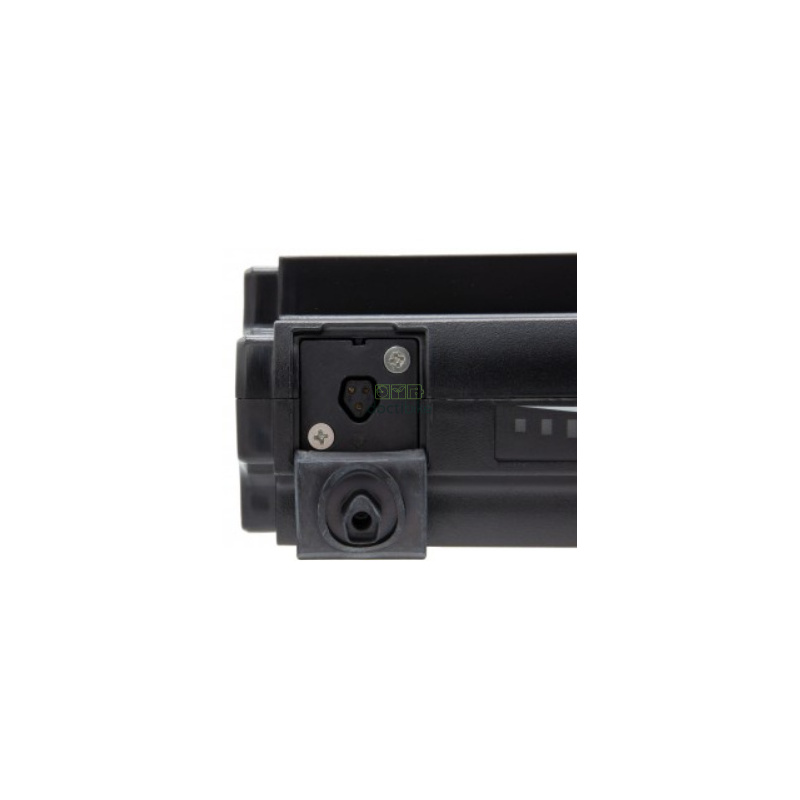

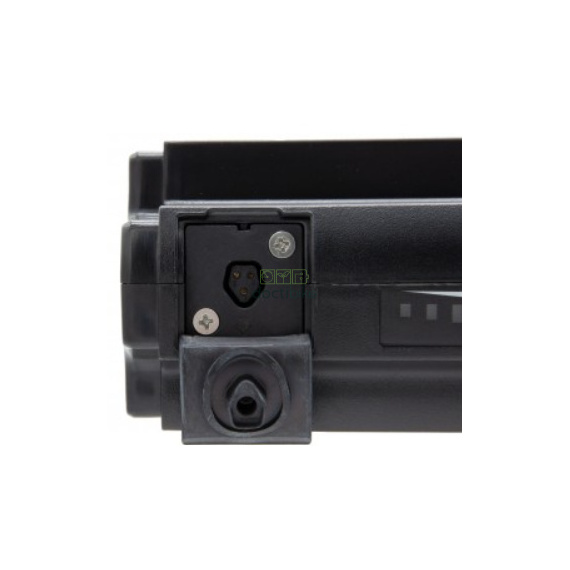

- Installation on a luggage rack and 3-pin Pentagon connector
- Caution: The charger used must be compatible with 36V lithium-ion technology, the 3-pin Pentagon connector, and the battery’s electronic requirements.
- The presence of an identical connector alone is not sufficient to guarantee a charger’s compatibility.
- Advice from our Doctibike experts:
- To preserve the range and extend the lifespan of your Joycube SF03 522Wh Phylion, we recommend following a few best practices.
- Charge your battery with a compatible charger in a dry environment at a moderate temperature. Avoid extreme temperatures and do not let your battery remain fully discharged for an extended period.
- If you won’t be using your e-bike for several weeks, store the battery in a dry place at a moderate charge level, and check its charge status regularly.
- Before each use, make sure the battery is properly positioned and locked into its rack mount.

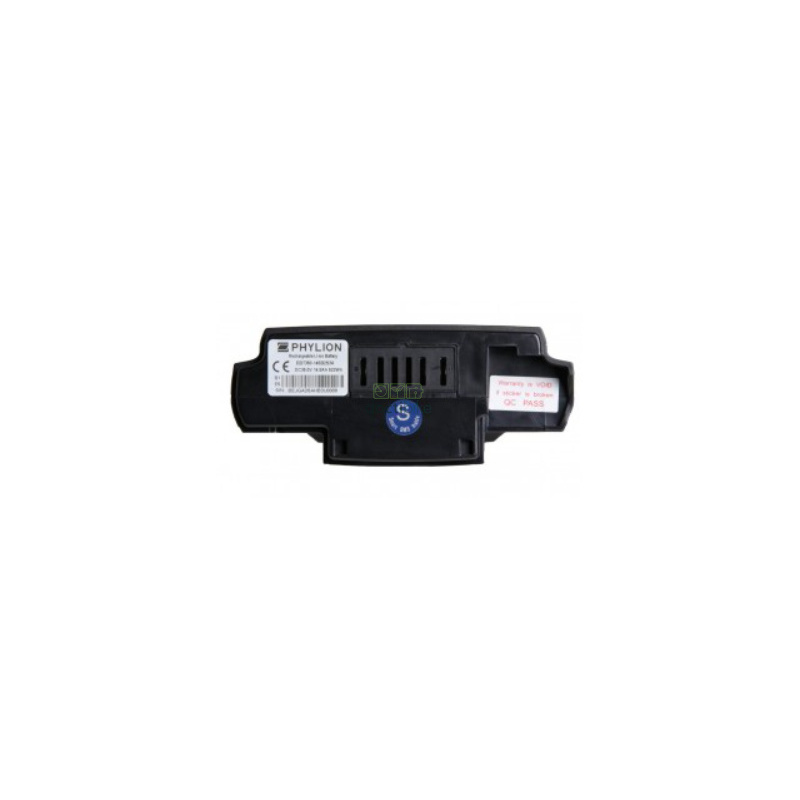

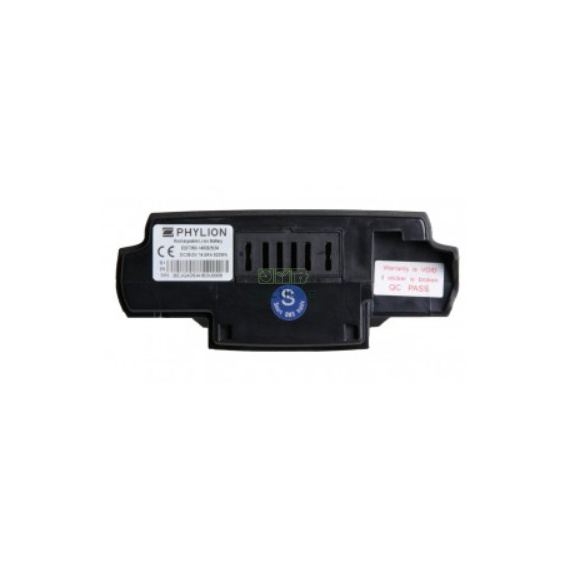

- Our tip: Before replacing your Fischer Cita battery, take a photo of its technical label, connector, and mounting system. Also check the year and exact model number of your bike.
- This information will allow our Doctibike experts to confirm that your bike indeed uses a Phylion SF03 battery with CAN Bus communication, and not another incompatible version.
- With the Phylion Joycube SF03 36V 14.5Ah 522Wh CAN Bus battery, you’ll find a suitable replacement solution to continue enjoying your compatible Fischer Cita e-bike to the fullest.
