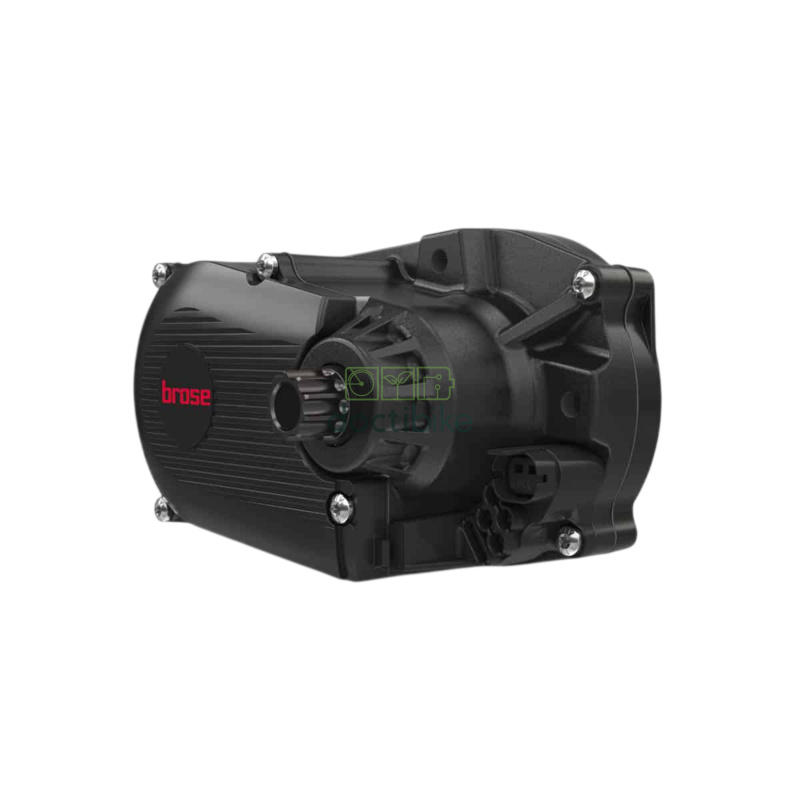

BROSE horizontal crankset motor 250W 36V Drive H Mag 25Km/h - Cargo (G57094-100)

BROSE horizontal crankset motor 250W 36V Drive H Mag 25Km/h - Cargo (G57094-100)

Reference G57094-100
verified In stock
Delivery in 3 to 5 business days
IMPORTANT INFORMATION BELOW: The BROSE Drive H Mag 250W 36V pedal motor is specially...
> See more
  • IMPORTANT INFORMATION BELOW:

  • The BROSE Drive H Mag 250W 36V pedal motor is specially designed for electric cargo bikes requiring a high-performance, reliable motor approved for the heaviest loads.

  • The first motor in the Brose range to be certified for electric bikes up to 250kg gross vehicle weight, it offers powerful, smooth assistance in a compact, lightweight format.

  • Thanks to its high torque of 90 Nm and assistance of up to 410%, this mid-mounted motor guarantees efficient starting, excellent climbing ability and optimum riding comfort, even when the bike is heavily loaded.

  • Based on the proven architecture of the well-known Brose S Mag, the Drive H Mag offers the same performance, while meeting the specific requirements of the cargo bike market.

  • Please note: this BROSE Drive H Mag motor is not a substitute for any other motor.
  • To guarantee the mechanical, electronic and software compatibility of your electric bike, the replacement motor must be strictly identical to the original one (same part number, same version and same manufacturer configuration).

  • If you have any doubts about compatibility, please do not hesitate to contact us via our pre-purchase contact form.

  • Scroll down to discover the technical specifications at the bottom ↓

  • Warranty : 2 years
verified In stock
Delivery in 3 to 5 business days
Regular price €999.17
  • -15%
    • €849.29

    The displayed price including VAT is indicative.
    The final amount will be calculated based on the delivery address provided when placing the order.

    Free delivery from €299

    Delivery in 3 to 5 business days
    Free for orders over €299

    Need help?
    Contact one of our experts !

    Returns within 14 days

    BROSE horizontal crankset motor 250W 36V Drive H Mag 25Km/h - Cargo (G57094-100)
    BROSE horizontal crankset motor 250W 36V Drive H Mag 25Km/h - Cargo (G57094-100)
    Regular price €999.17
  • -15%
    • €849.29
    Reference G57094-100
    verified In stock
    Delivery in 3 to 5 business days

    Technical specifications

    Vehicle type
    Electric bike
    Weight
    2.9 kg
    Warranty
    2 years

    Description

    • Technical description

    • The BROSE Drive H Mag pedal motor (part number G57094-100) is a high-end central drive designed for electric cargo and utility bikes requiring powerful assistance for carrying heavy loads.

    • Technical specifications

    • Motor type: BROSE Drive H Mag central pedal motor
    • Reference: G57094-100
    • Nominal voltage: 36 V
    • Continuous rated power: 250 W
    • Maximum assistance speed: 25 km/h
    • Maximum torque: 90 Nm
    • Maximum assistance: up to 410
    • Walking assistance: up to 6 km/h
    • Weight: 2.9 kg
    • Dimensions (L × H × W): 204 × 115 × 99 mm
    • Axle width: 115 mm
    • Position: Horizontal mounting
    • Application: Electric cargo and utility bike
    • Maximum approved bike load: up to 250 kg (GVW depending on manufacturer's configuration)
    • Customs HS code: 85013100

    • Advantages of the BROSE Drive H Mag motor

    • The Drive H Mag incorporates the technical features of the BROSE S Mag motor, renowned for its excellent fuel efficiency, responsiveness and silent operation.
    • Despite its ability to power heavily loaded cargo bikes, it retains a reduced weight of just 2.9 kg and a particularly compact footprint.

    • Its 90 Nm of torque enables you to tackle climbs, loaded starts and intensive city trips with ease.
    • Its assistance of up to 410% considerably reduces the rider's effort, even when transporting goods or passengers.

    • Important compatibility information

    • This motor is not a universal replacement for Brose motors.
    • It is imperative that the replacement be made with a Drive H Mag motor strictly identical to the one originally installed on the bike.
    • A difference in part number or version may lead to mechanical, electronic or software incompatibilities, preventing the system from operating correctly.

    • Expert advice

    • Before ordering a replacement motor, always check the exact part number on your original motor, as well as its compatibility with your bike's electrical system.
    • In the event of replacement following a breakdown, we recommend that you also check the condition of the connectors, the wiring harness and carry out any software updates to ensure optimum performance and maximum longevity of your installation.
    • → If you have any doubts about compatibility, please do not hesitate to contact us via our pre-purchase contact form.
