Bosch PowerTube 500 Wh Horizontal Bike Battery - Refurbished, Silver Grade

Reference 275007539-RA
verified Last items in stock
Delivery in 3 to 5 business days
IMPORTANT INFORMATION BELOW: Restore your e-bike to its original performance with the...
> See more
  • IMPORTANT INFORMATION BELOW:

  • Restore your e-bike to its original performance with the Bosch PowerTube 500 Wh Horizontal battery.

  • With a capacity of 500 Wh (36V - 13.4 Ah), it offers excellent range of up to 90 km, depending on riding conditions.

  • Integrated directly into the bike frame, it preserves the aesthetics of your bike while guaranteeing the quality, reliability, and renowned performance of Bosch.

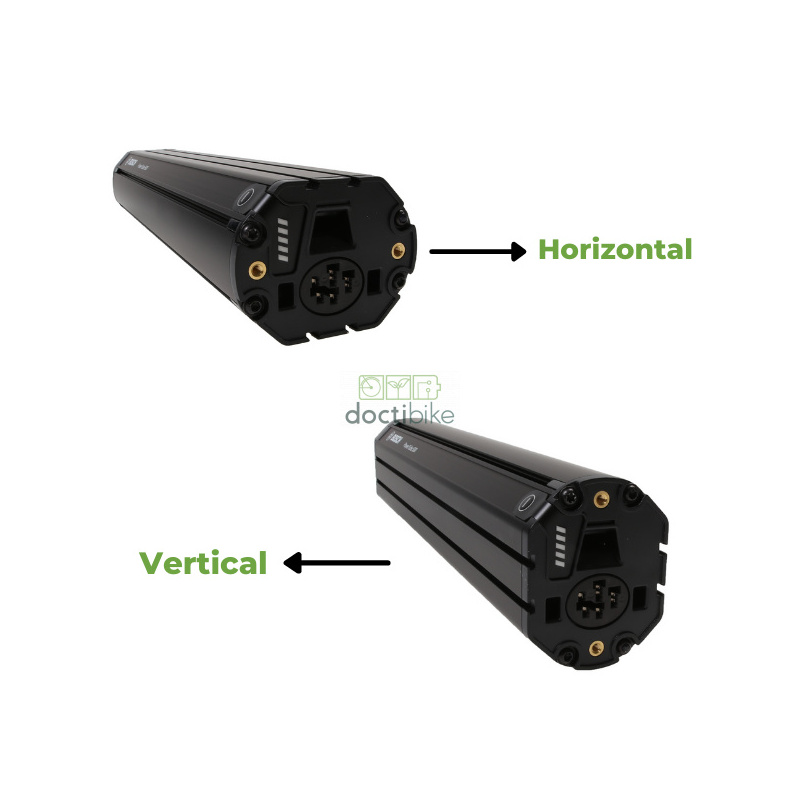

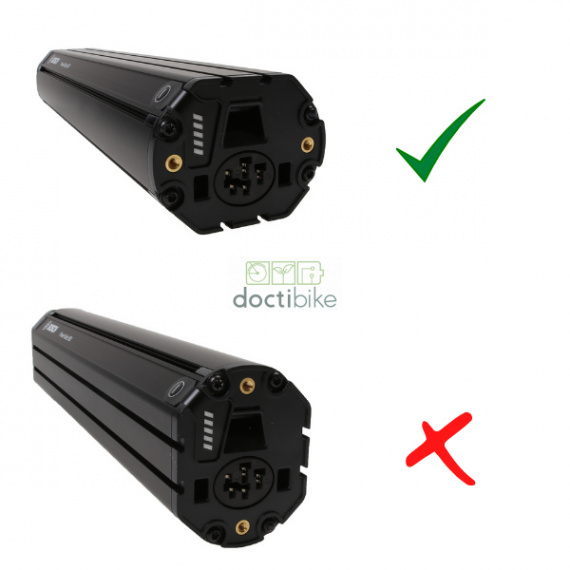

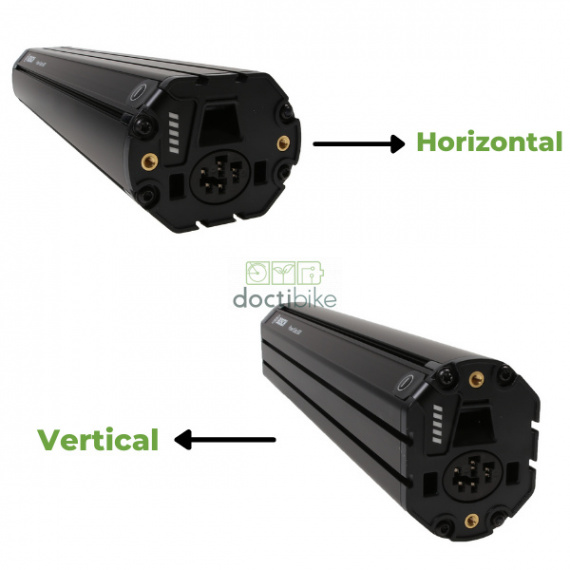

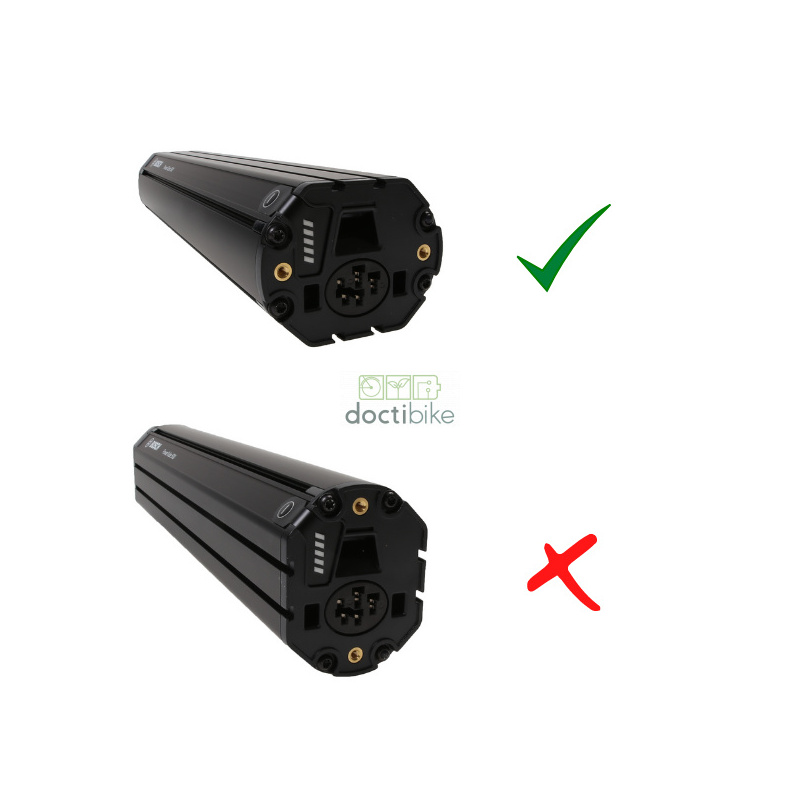

  • Please note: This battery is exclusively a Horizontal model. Be sure to verify that your bike is equipped with a Bosch PowerTube Horizontal battery before placing an order.

  • This battery is compatible only with non- Bosch Smart System models, which can be identified by their oval connector.
  • It is not compatible with the Bosch Smart System, which features a round connector.

  • The Bosch PowerTube 400 Wh Horizontal and 500 Wh Horizontal batteries have the same dimensions and are interchangeable.
  • However, the PowerTube 625 Wh is longer and cannot be installed on a frame designed for a PowerTube 400 or 500.

  • If you have any questions about compatibility, please feel free to contact us via our contact form before making a purchase.

  • Scroll down this page to view the technical specifications at the bottom ↓

  • How are our grades for reconditioned batteries determined?

  • - Platinum Grade: 100% range - New cells - 2-year warranty
  • - Gold Grade: 100% capacity - Second-life cells - 1-year warranty
  • - Silver Grade: 85–95% capacity - Second-life cells - 1-year warranty
  • - Bronze Grade: 70–85% capacity - Second-life cells - 1-year warranty

  • Our refurbished batteries have a few scratches on the casing; however, they have been tested in our workshop and remain 100% functional.

verified Last items in stock
Delivery in 3 to 5 business days
Regular price €365.83
  • -30%
    • €256.08

    The displayed price including VAT is indicative.
    The final amount will be calculated based on the delivery address provided when placing the order.

    Free delivery from €299

    Delivery in 3 to 5 business days
    Free for orders over €299

    Need help?
    Contact one of our experts !

    Returns within 14 days

    BATTERIE BOSCH PowerPack 500 Porte Bagage 36V 13,4Ah Platine
    Bosch PowerTube 500 Wh Horizontal Bike Battery - Refurbished, Silver Grade
    Regular price €365.83
  • -30%
    • €256.08
    Reference 275007539-RA
    verified Last items in stock
    Delivery in 3 to 5 business days

    Technical specifications

    Voltage
    36 V
    Autonomy
    80 km
    Power
    500Wh
    Weight
    2.8 kg
    Location
    Semi-integrated
    Charging time
    4-5h
    Marque compatible
    Bosch
    Warranty
    1 year
    Advice for use
    Do not leave the battery without charge for more than one month, remember to charge it regularly! Avoid cold and damp places to store your battery.
    Connectivity
    4-pin connector plug
    Battery model
    Horizontal PowerTube
    Proposed solution
    Refurbished battery
    Colour
    Black
    Reference
    0275 007 539
    0275.007.539
    0275007539
    Compatible with
    0275 007 541
    0275 007 543
    0275 007 555
    0275.007.541
    0275.007.543
    0275.007.555
    0275007541
    0275007543
    0275007555
    BBP280
    BBP282
    BBP290
    Smart System
    Non

    Description

    • Technical Description

    • The PowerTube 500 Wh Horizontal Bosch is a high-end lithium-ion battery designed for e-bikes equipped with a Non-Smart System generation Bosch motor.
    • Its seamless integration into the frame maintains an elegant design while effectively protecting the battery from everyday splashes and impacts.

    • Developed by Bosch, this battery features numerous electronic safety protections that ensure safety, reliability, and longevity.

    • Technical Specifications

    • Bosch PowerTube original battery.
    • Mounting position: Horizontal.
    • Technology: Lithium-ion.
    • Capacity: 500 Wh.
    • Voltage: 36 V.
    • Electrical capacity: 13.4 Ah.
    • Weight: approximately 3.5 kg.
    • Average range: up to 90 km depending on the level of assistance, terrain, load, tire pressure, weather conditions, and riding style.
    • Integrated directly into the bike frame.
    • Grooves allow for the installation of covers or a bottle cage, depending on the frame.
    • Electronic protection against:
    • short circuits;
    • overheating;
    • deep discharge.

    • Compatibility

    • This battery is compatible with the following non-Smart System Bosch motors:

    • Active Line
    • Active Line Plus
    • Performance Line
    • Performance Line Speed
    • Performance Line CX
    • Cargo Line
    • Cargo Line Speed

    • Compatible with many brands of e-bikes equipped with a Bosch system, including:

    • Peugeot Cycles
    • Kalkhoff
    • Cube
    • Trek
    • Gazelle
    • Matra
    • Yuba
    • Moustache

    • Important:

    • Compatible only with a Bosch system equipped with an oval connector (Non-Smart System).
    • Not compatible with a Smart System- Bosch -equipped system featuring a round connector.
    • Compatible as a replacement for a 400 Wh Horizontal PowerTube.
    • Not compatible with a mounting point designed for a 625 Wh PowerTube, which has larger dimensions.

    • Charging the Battery

    • The Bosch PowerTube 500 Wh battery has no memory effect. You can therefore recharge it at any time, regardless of its charge level, without compromising its performance.

    • Estimated charging times:

    • Compact 2A Charger

    • 50%: approximately 4.5 hours
    • 100%: approximately 7.5 hours
    • Standard 4A Charger
    • 50%: about 2 hours
    • 100%: about 4.5 hours
    • 6A Fast Charger
    • 50%: about 1.2 hours
    • 100%: approximately 3 hours

    • → The battery is compatible with Bosch chargers designed for 36V Non-Smart System PowerTube and PowerPack batteries.

    • Benefits of the Bosch PowerTube 500 Wh

    • Genuine Bosch battery.
    • Discreet integration into the frame.
    • Excellent range for daily commutes and long rides.
    • Lightweight battery for easy handling.
    • Anti-drop system ensures the battery stays securely in the frame.
    • Numerous electronic protection features guarantee safe and long-lasting use.

    • Tips from our experts

    • Before placing an order, carefully check that your bike is equipped with a PowerTube Horizontal Non- Bosch.
    • The easiest way is to check your battery’s connector: oval = compatible; round = Smart System, not compatible.
    • If you’re replacing a 400 Wh Horizontal PowerTube, you can install this 500 Wh version without any modifications, as both batteries have the same dimensions.
    • However, since the 625 Wh PowerTube is longer, it requires a frame specifically designed for this capacity.
    • To maintain your battery’s performance over the long term, charge it in a dry place at room temperature, avoid storing it when fully discharged, and keep the charge level between 50% and 60% during prolonged periods of inactivity.
    • Finally, always remove the battery before cleaning your bike to protect the electrical components.
