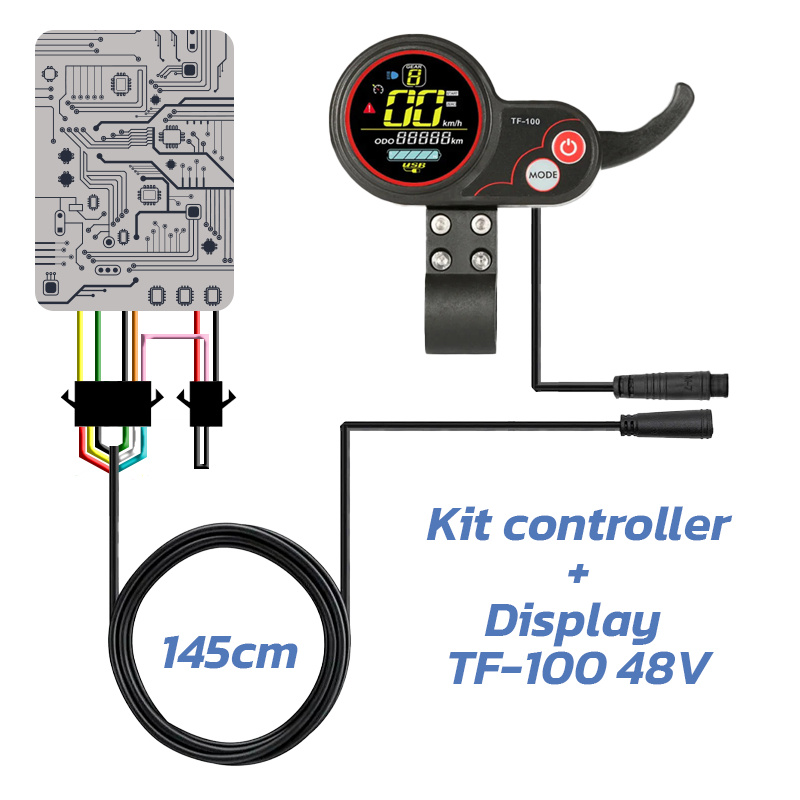

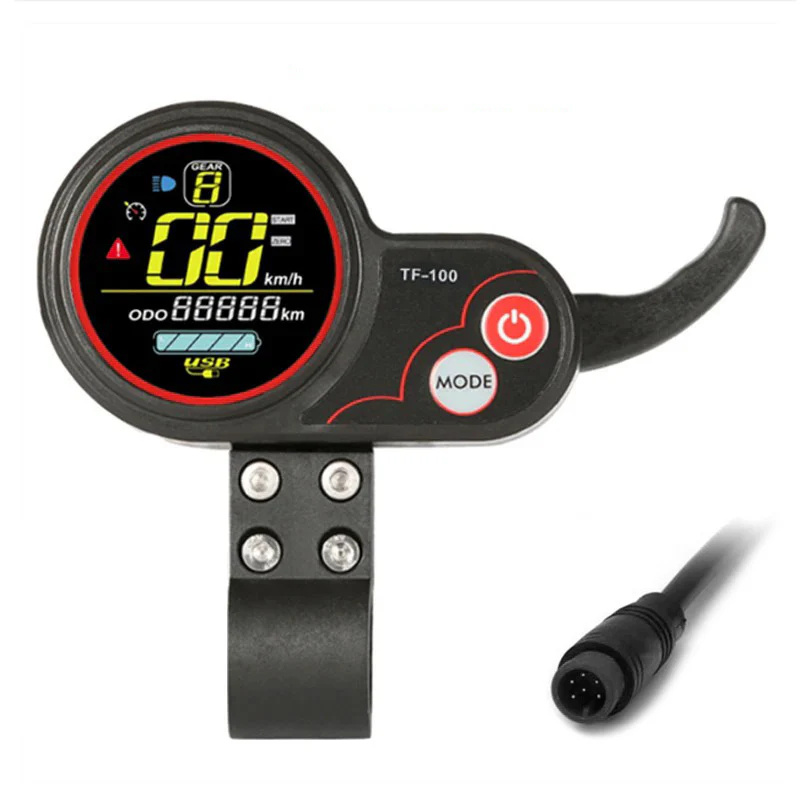

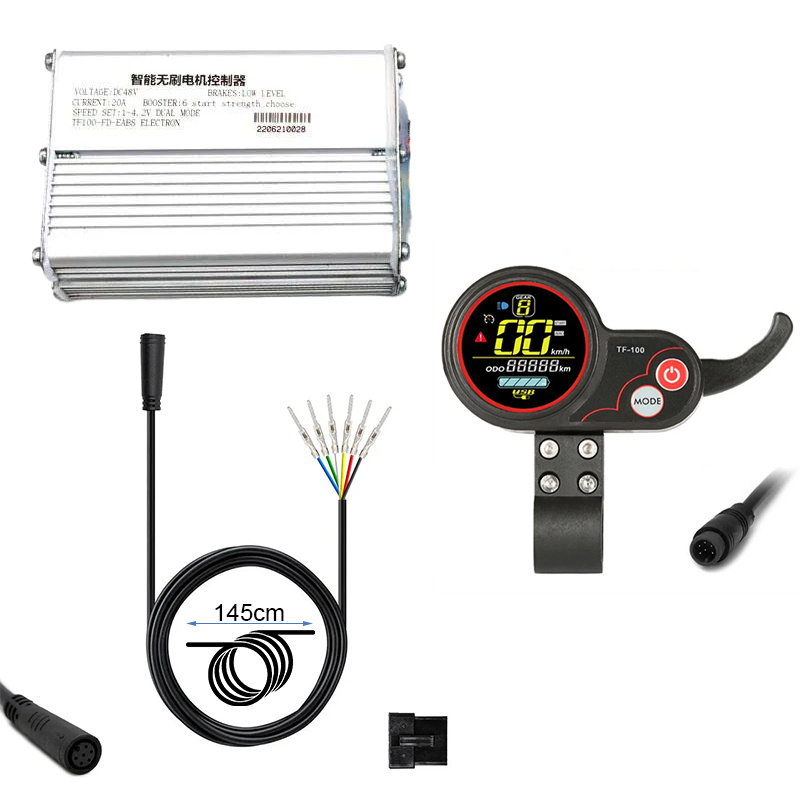

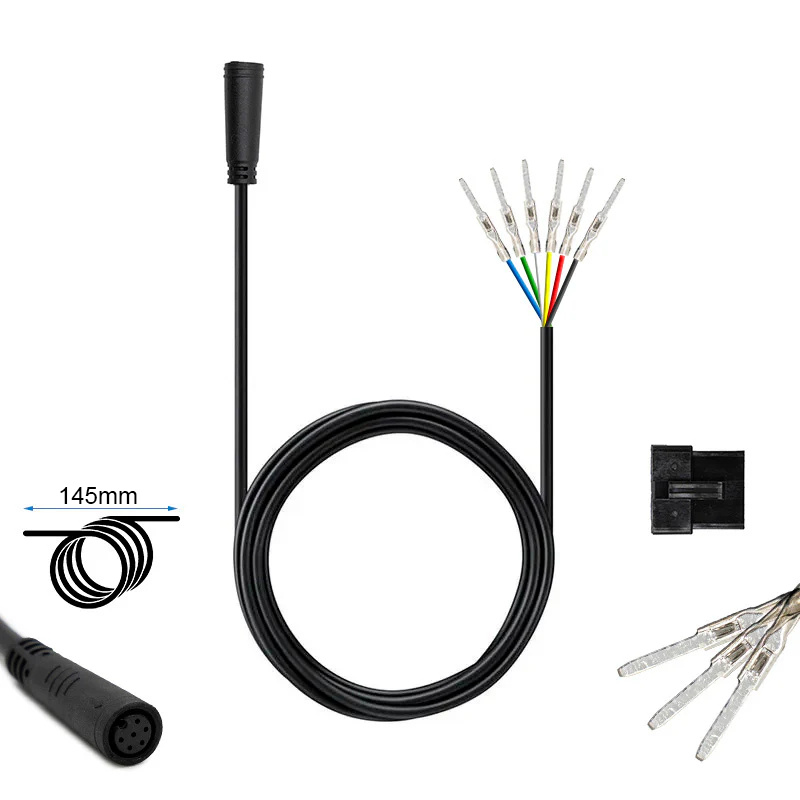

Electronic set TF-100 36/48V 20A 500/800 W

Electronic kit TF-100 36/48V 20A 500/800W

Name: Electronic kit TF-100 36/48V 20A 500/800W
Brand: Doctibike
SKU: 415366628
Price: 76.7 EUR
Availability: InStock

Reference 415366628

Available under 4 weeks
*according to supplier's lead time

TF-100 36/48V 20A 500/800W electronics kit : a reliable solution for recommissioning, upgrading or...
> See more

TF-100 36/48V 20A 500/800W electronics kit: a reliable solution for recommissioning, upgrading or securing the electronics of an electric bike when you're looking for a coherent, ready-to-integrate package in an e-bike configuration. Designed for electric mobility, this kit ensures stable power and control management, with a format adapted to 36V or 48V assemblies.

Ideal for replacement or repair, this electronic kit for electric bikes enables you to start from a sound base in terms of control and power, while remaining within the usual ranges for electric assistance. With its 20A controller and advertised 36/48V compatibility, it is aimed at users who want a more constant assistance response, better control of operation and integration adapted to everyday use (urban commuting, velotaf, suburban travel).

Main function: management and control of the electronics of an electric assistance system (e-bike electronic kit).
Rated voltage: 36/48V (depending on configuration).
Current: 20A.
Indicated power range: 500/800W.
Use: to repair, replace or upgrade the electronics of an electrically-assisted bicycle.

This kit falls into the categories of electronics and electronics kit for EABs. As the brand is not specified, we recommend that you check the correspondence with your assembly (type of connectors, wiring and layout) before installation, to ensure clean integration and optimal operation.

Scroll down the page to see detailed technical specifications at the bottom ↓

Warranty : 2 years

Available under 4 weeks
*according to supplier's lead time

€63.92

The displayed price including VAT is indicative.
The final amount will be calculated based on the delivery address provided when placing the order.

Free delivery from €299

Notify me when product is back in stock

All good ! We'll send you an email once the product is back in stock.

Electronic kit TF-100 36/48V 20A 500/800W

€63.92

Technical specifications
Description

Technical specifications

Warranty

2 years

Ean13

8435764405419

Description

Product overview

The TF-100 36/48V 20A 500/800W electronic kit is designed for the control electronics of an electric bicycle or motorized soft mobility equipment. Designed for 36V or 48V operation, it can drive a motor compatible with currents up to 20A, to ensure reliable power and control management in a 500W to 800W configuration.

User benefits

This electronic kit helps you to re-commission or reconfigure an electric assist, based on a voltage range of 36/48V and a current capacity of 20A. It is a practical solution for replacing a failed electronic component or upgrading to a 500/800W configuration, while maintaining a coherent electrical architecture around a 36V or 48V battery.

Technical specifications

- Operating voltage: 36V / 48V
- Rated current: 20A
- Compatible power: 500W / 800W
- Type: electronic kit (control unit for electric assistance system)
- Category: electronics / electronic kit

Performance

The kit is rated at 20A for use at 36/48V, with power ratings from 500W to 800W. These values can be used to guide the choice of kit according to the motor and battery configuration required, within the limits of the specifications indicated.

Recommended uses

- Replacement of an electronic kit on a 36V or 48V electric bicycle
- Assembly or upgrading of an electric assistance system targeting 500W or 800W power (depending on configuration)
- Electronic troubleshooting on soft mobility devices using 36/48V architecture (if system voltage matches)

Compatibility

Precise compatibilities (motor type, connectors, display/screen, pedal sensor, gas pedal, exact controller, battery brand, harness standards) are not indicated in the information provided. We recommend that you check the voltage (36V or 48V) and the power/current rating (20A, 500/800W) with your system before purchasing.

Expert advice

Before installation, check the voltage rating of your battery (36V or 48V) and make sure your motor and wiring are suitable for 20A. In the event of replacement, carefully compare the connections and connectors of your current installation with those of the kit to avoid any incompatibility. After installation, carry out a progressive test (wheel up, then test at low load) to check that the electrical system is working properly.
