Increase the range and performance of your electric bike with the removable Fazua Energy 480 battery ,...
> See more

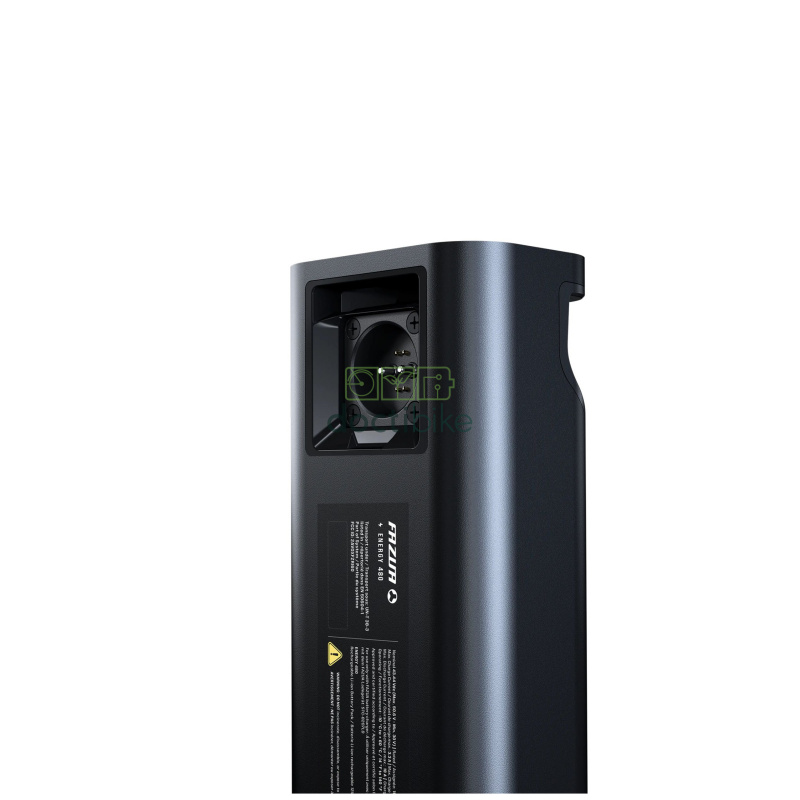

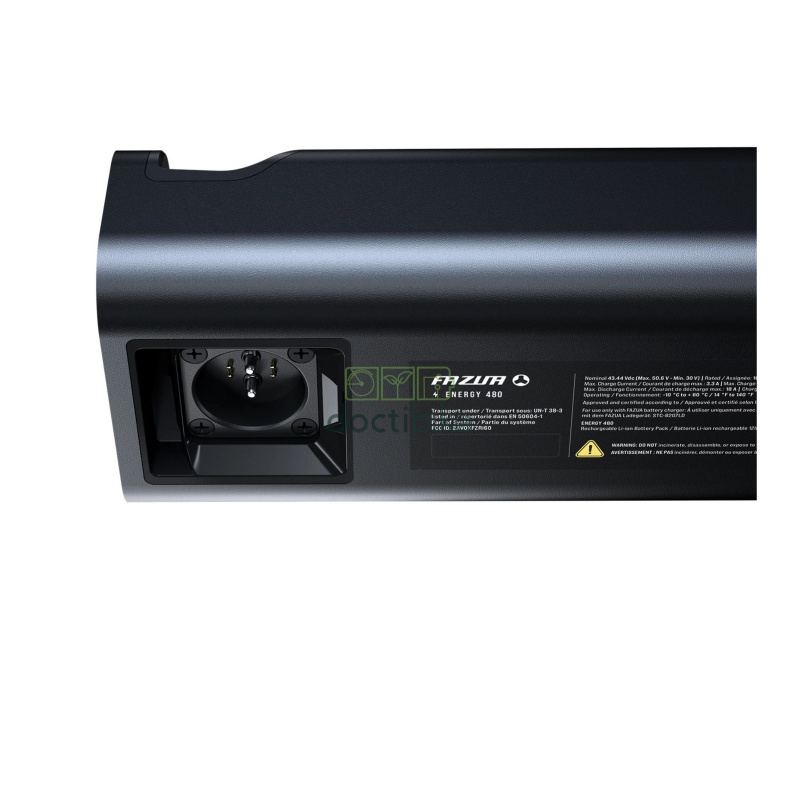

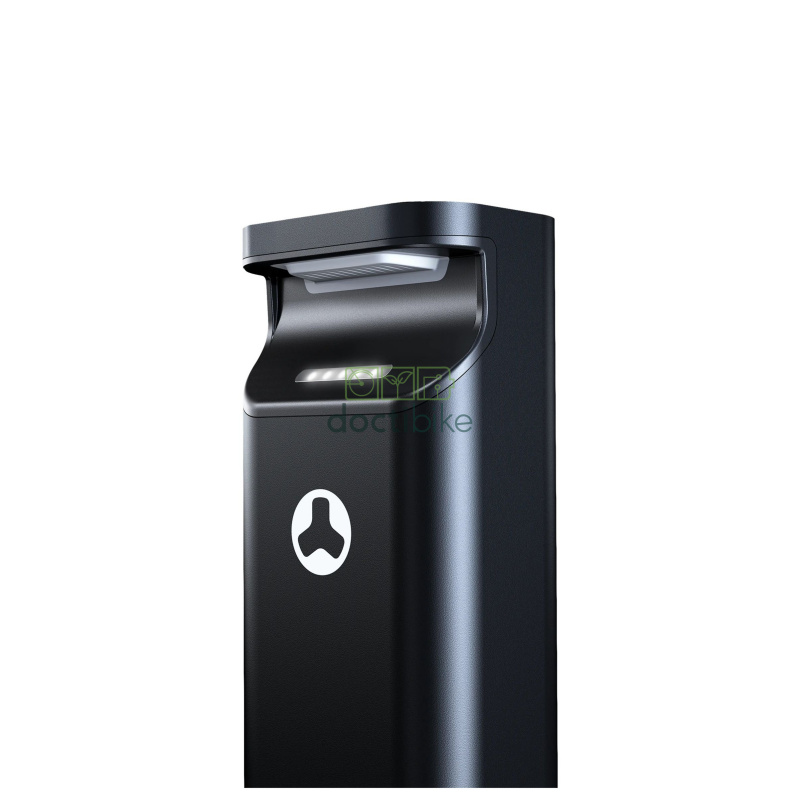

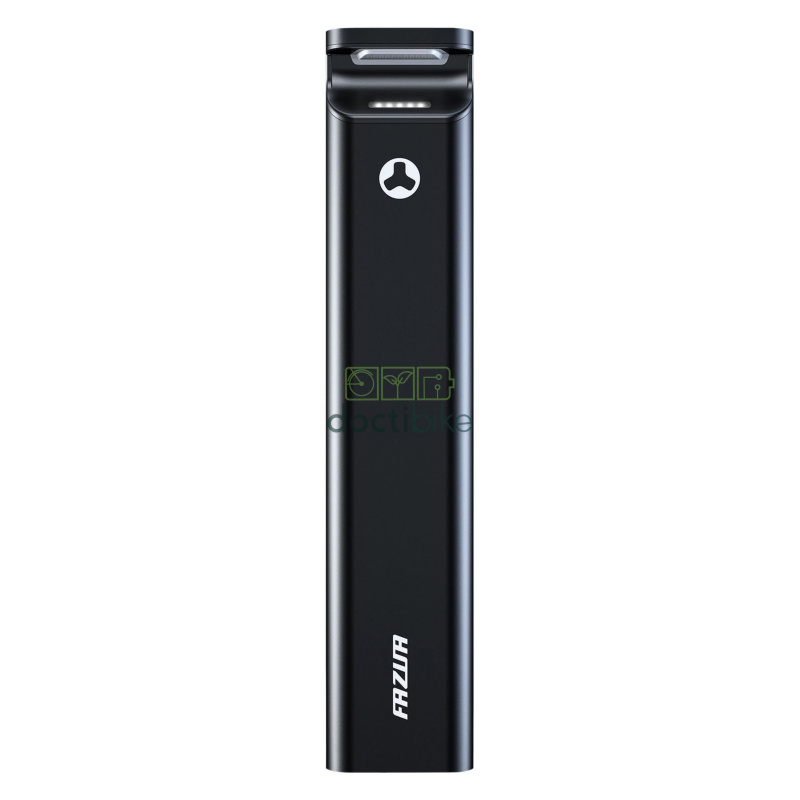

Increase the range and performance of your electric bike with the removable Fazua Energy 480 battery, a new-generation batterydesigned for bikes fitted with the Fazua Ride 60 system.
More powerful than its predecessor, it offers 480 Wh of capacity, 50 Wh more than the Energy 430 battery, improving your bike's range by up to 10%.
Thanks to its innovative cell technology, this battery ensures stable, high-performance power supply to the Fazua motor, while retaining the same dimensions as the Energy 430 battery, guaranteeing perfect compatibility with bikes already equipped with this format.
It integrates directly into the frame's downtube, offering a discreet design and optimal weight distribution.
The Fazua Energy 480 is compatible with bikes already fitted with a removable Fazua 430 Wh or 480 Wh battery. However, some checks are necessary before installation:
- If your bike has a Fazua 430 Wh battery, check that Firmware Bundle 13 or later is installed.
- If your bike is equipped with Road Control V1, we recommend that you contact our support team before purchase to confirm compatibility.
Technology: Lithium-ion with high-performance cells
Capacity: 480 Wh
Nominal voltage: 43.4 V
Range: up to 10% longer than Energy 430 battery
Dimensions: 29.5 × 8 × 7.5 cm
Weight: 2.4 kg
Housing material: High-strength plastic
Connection type (discharge): 6-pin plug
Standby mode: automatic activation after 5 minutes
Installation: integrated into frame down tube
Item number: AS-20C101000A
Compatibility
The Fazua Energy 480 battery is compatible with :
- Electric bikes equipped with the Fazua Ride 60 system
- Bikes already equipped with a removable Fazua Energy 430 or Energy 480 battery
Please note:
- If your bike has an Energy 430 battery, Firmware Bundle 13 or later must be installed.
- If your bike is equipped with Road Control V1, we recommend that you contact technical support before purchasing.
Recharging
Average charging time: approx. 4 hours
Compatible chargers :
- Fazua Charger 3A EU
- Fazua Charger 3A90 EU
→ Charging takes place directly via the bike's charging port.
Scope of delivery
1 × Fazua Energy 480 battery
Expert advice
To get the most out of your Fazua Energy 480 battery:
- Always check the firmware version of the Fazua Ride 60 system before installation, especially if you are replacing an Energy 430 battery.
- Have the installation carried out by a specialist dealer or workshop, to ensure correct integration and possible system updates.
- Recharge the battery in a cool, dry environment to preserve the lithium-ion cells.
- Avoid repeated full discharges to optimize battery life and maintain performance.
→ Correct installation and proper maintenance allow you to take full advantage of the extra autonomy offered by the Fazua Energy 480 battery and the performance of the Fazua Ride 60 system.
