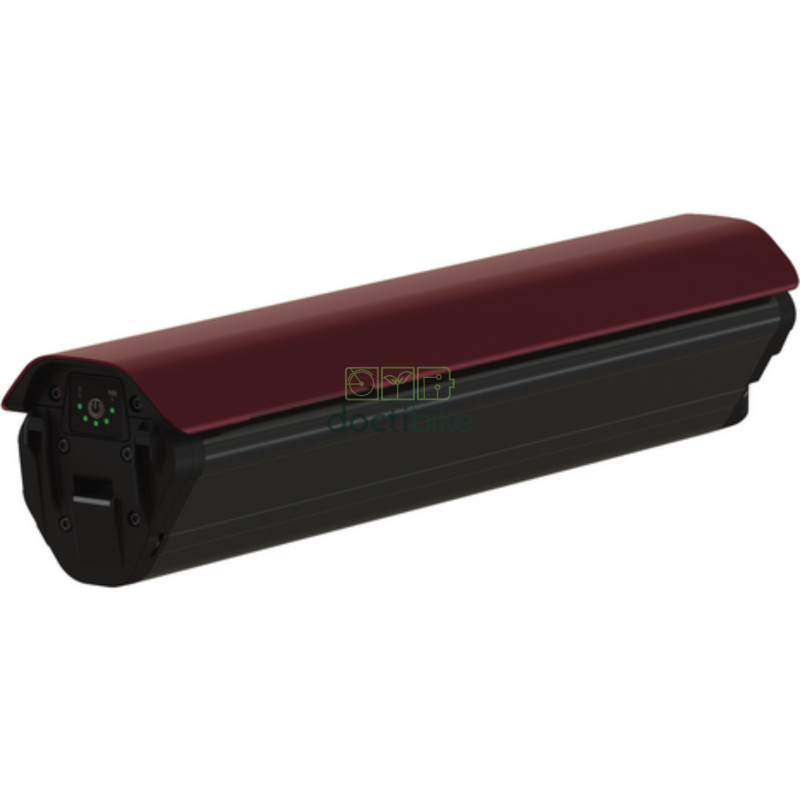

BMZ V10 Battery - 36V 20Ah 725Wh for Alber/Neodrive motors and Pinion gearboxes

BMZ V10 Battery - 36V 20Ah 725Wh for Alber/Neodrive motors and Pinion gearboxes

Reference 415300294
Available under 12 weeks
*according to supplier's lead time
IMPORTANT INFORMATION BELOW: The BMZ V10 36V 20Ah – 725Wh battery is a...
> See more
    • IMPORTANT INFORMATION BELOW:

      • The BMZ V10 36V 20Ah – 725Wh battery is a frame battery specifically designed for e-bikes equipped with an Alber / Neodrives rear hub motor, paired with a Pinion gearbox.

      • It offers a high capacity of 20Ah / 725Wh, making it ideal for electric bikes used for long distances, travel, and daily commuting.

      • This BMZ V10 battery is compatible with several bike models equipped with the neodrives system and a Pinion gearshift, including the MÖVE Voyager V10, the MITECH Fusion=E V10, the Electrolyte Zugvogel S10E, and the Santos Travelmaster-E-Neo, as well as other Neodrives-compatible models.

      • Please note: Before placing an order, it is essential to verify the compatibility of your current battery.
      • The part number BMZ 607058, indicated on the battery label, is a key identifier for determining the corresponding model.

      • This battery uses INR21700 cells in a 10S4P configuration and communicates with the neodrives system via the LIN bus.

      • It also features an 8-pin Hirschmann charging connector.

      • If you have any doubts about compatibility, please feel free to contact us via our contact form before making a purchase.

      • Scroll down to view all technical specifications and compatibility information ↓

    • Warranty: 2 years
Available under 12 weeks
*according to supplier's lead time
€582.50

The displayed price including VAT is indicative.
The final amount will be calculated based on the delivery address provided when placing the order.

Free delivery from €299

Delivery in 3 to 5 business days
Free for orders over €299

Need help?
Contact one of our experts !

Returns within 14 days

BMZ V10 Battery - 36V 20Ah 725Wh for Alber/Neodrive motors and Pinion gearboxes
BMZ V10 Battery - 36V 20Ah 725Wh for Alber/Neodrive motors and Pinion gearboxes
€582.50

Compatibility

  • Electrolyte | Zugvogel S10E
    MITECH | Fusion E V10
    MÖVE | Voyager V10
    Santos | Travelmaster-E-Neo
Reference 415300294
Available under 12 weeks
*according to supplier's lead time

Technical specifications

Vehicle type
Electric bike
Brand
Electrolyte
MITECH
MÖVE
Santos
Voltage
36 V
Amperage
20 Ah
Power
725Wh
Width
72
Height
85 mm
Depth
42.5
Weight
3.8 kg
Location
Downtube
Warranty
2 years
Proposed solution
New battery

Description

  • Technical Description

  • BMZ V10 Battery for Alber / neodrives Systems
  • The BMZ V10 is a high-capacity frame battery designed for electric bikes equipped with an Alber / neodrives system featuring a motor located in the rear hub and paired with a Pinion gear hub.
  • Its 725Wh capacity provides a substantial energy reserve for daily commutes as well as long rides and bike trips.

  • Technical Specifications

  • Brand: BMZ
  • Model: V10
  • BMZ Part Number: 607058
  • Nominal voltage: 36V
  • Capacity: 20Ah
  • Energy: 725 Wh
  • Type: frame battery / down tube battery
  • Cell technology: INR21700
  • Cell configuration: 10S4P
  • Motor system: Alber / Neodrives
  • Motor type: rear hub drive
  • Matching drivetrain: Pinion gearbox
  • Communication: neodrives via LIN bus
  • Charging connector: 8-pin Hirschmann
  • Dimensions: 425 × 72 × 85 mm
  • Weight: approximately 3.8 kg

  • Compatibility

  • This BMZ V10 battery is specifically designed for e-bikes equipped with the neodrives system featuring a Pinion gearbox, and may be compatible with the following models:

  • • MÖVE Voyager V10
  • • MITECH Fusion=E V10
  • • Electrolyte Zugvogel S10E
  • • Santos Travelmaster-E-Neo
  • • Other electric bike models equipped with an Alber / neodrives system and a Pinion gearshift, subject to technical compatibility.

  • Important: Compatibility should not be determined solely based on the battery’s voltage or capacity.
  • The part number 607058 listed on your battery’s technical label, as well as the dimensions, connectors, communication system, and integration with the bike, must also match.

  • Expert Tips

  • Before ordering your BMZ V10 battery, we recommend that you carefully compare part number 607058, the dimensions, and the connectors with your original battery.
  • On neodrives systems, electronic communication between the battery and the bike is essential for the system to function properly.
  • To ensure proper installation and operation, use a battery specifically designed for your Alber/Neodrives system and your Pinion configuration.
  • If you’re unsure, our team can help you verify compatibility before making a purchase.
