Name: Fazua 3A - 90° charger
Brand: Doctibike
SKU: 415300146
Price: 163 EUR
Availability: InStock

Reference 415300146

Available under 4 weeks
*according to supplier's lead time

Recharge your Fazua-equipped electric bike efficiently with the Fazua 3A 90° charger , specially...
> See more

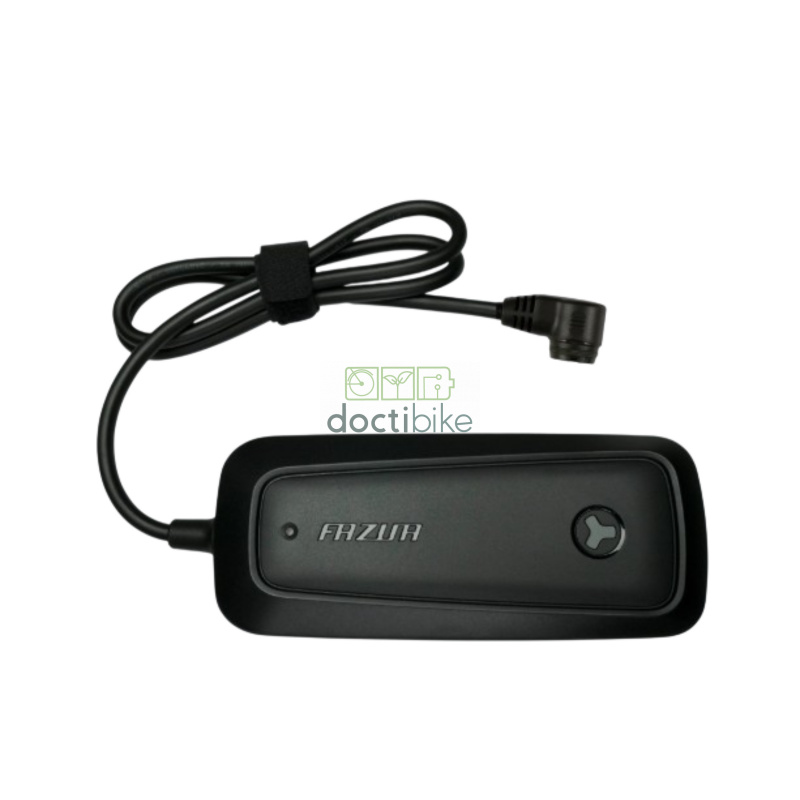

Recharge your Fazua-equipped electric bike efficiently with the Fazua 3A 90° charger, specially designed for Fazua Energy 430 and Energy 480 batteries.

Compact and powerful, this charger enablesfast, safe recharging of your battery, so you can quickly regain the full range of your electric bike.

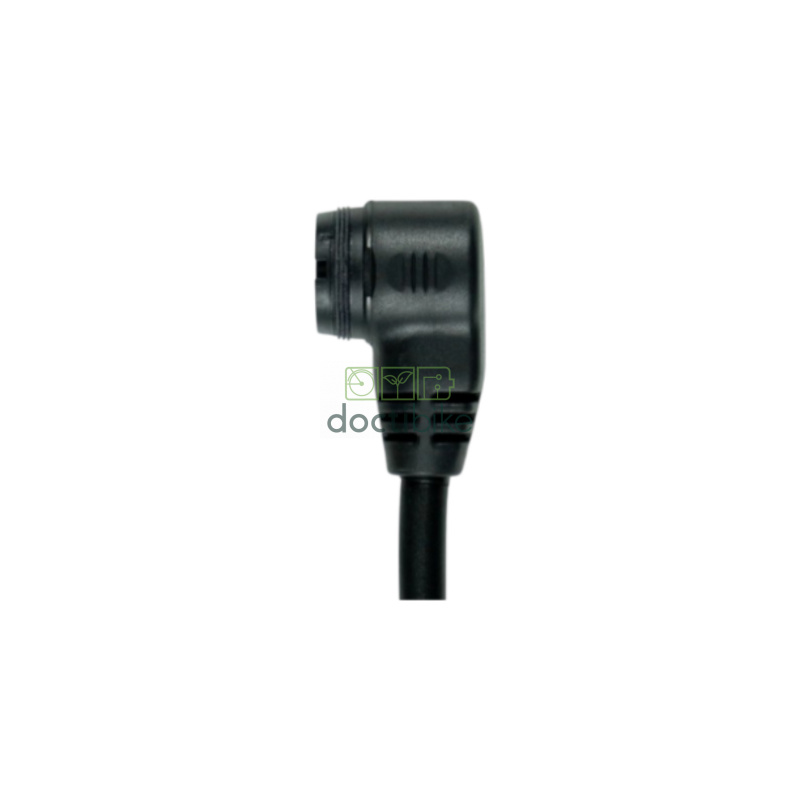

Featuring a 6-pin magnetic connector with a 90-degree angled tip, this charger makes it easy to connect to the bike, while limiting strain on the cable.

This practical design is ideal for electric bikes where access to the charging port is located in the frame or in an inaccessible area.

With a charging capacity of 3 amps, the battery reaches around 80% charge in just 2.5 hours, and is fully recharged in 3 to 4 hours.

A built-in LED clearly indicates the status of the charging process, so you can easily monitor progress.

The Fazua 3A90 charger is compatible with Fazua Energy 430 and Energy 480 batteries, used on bikes fitted with the Fazua Ride 60 system.

For full specifications and compatibility information, scroll down to the product sheet below ↓

Available under 4 weeks
*according to supplier's lead time

€135.83

The displayed price including VAT is indicative.
The final amount will be calculated based on the delivery address provided when placing the order.

Free delivery from €299

Notify me when product is back in stock

All good ! We'll send you an email once the product is back in stock.

Fazua 3A - 90° charger

€135.83

Technical specifications

Warranty

2 years

The Fazua 3A90 is an official charger designed to recharge Fazua Energy batteries used on electric bikes equipped with the Ride 60 system.
Thanks to its reliable charging technology and secure magnetic connector, it ensures rapid recharging while protecting the battery.

→ It is intended for electric bikes equipped with the Fazua Ride 60 assistance system.

The charger operates via a secure 3 amp magnetic connection. This technology facilitates connection to the bike while reducing the risk of wear and tear on the charging port.
When the charger is connected to the mains, the LED lights up green.
Once connected to the Fazua battery, the LED turns red during charging.
The LED indicates the end of charging when the battery is fully charged.

To ensure optimum charging and preserve the life of your Fazua battery:
Use only a compatible Fazua Ride 60 charger to avoid damage to the system.
Connect the charger first to the mains and then to the bike, to ensure a stable and secure connection.
Charge your battery in a dry, temperate environment, ideally between 10 and 20°C.
Avoid leaving the battery permanently connected after charging is complete, to preserve the lithium-ion cells over the long term.

→ A suitable charger and correct use help maintain the performance, range and longevity of Fazua Energy batteries used on electric bikes equipped with the Ride 60 system.
