BMZ Battery for Alber Xion Motor, 36V, 14.5Ah, 15.5Ah, and 16.8Ah - Frame

Reference 22938-1GP
Product available with different options
IMPORTANT INFORMATION BELOW: Get the full range of your e-bike with this BMZ ALBER XION...
> See more
  • IMPORTANT INFORMATION BELOW:

  • Get the full range of your e-bike with this BMZ ALBER XION 36V frame-mounted battery, specially designed for bikes equipped with an ALBER/XION rear-wheel motor.

  • Available in 14.5 Ah, 15.5 Ah, or 16.8 Ah capacities, it lets you choose the capacity that best suits your needs and desired range.

  • This ALBER XION 36V battery is compatible with Focus Crater Xion e-bikes from 2013 onward and Focus Jarifa Offroad e-bikes from 2013 onward, equipped with an ALBER/XION rear-wheel motor.

  • It features a Rosenberger charger connector, allowing you to recharge it using BMZ-compatible chargers equipped with the same connector.
  • Charger not included.

  • Two chargers are specifically compatible:

  • Warning: Before placing an order, be sure to check the voltage, capacity, and format of the battery, as well as your bike’s motor system. This battery is designed for ALBER/XION 36V systems with a rear-wheel motor.

  • The list of compatible bikes below is not exhaustive. Compatibility must be verified based on the exact bike model and its electrical system.

  • If you have any doubts about compatibility, please feel free to contact us via our contact form before purchasing.

  • Scroll down to view the technical specifications at the bottom of the page ↓

  • Warranty: 2 years
* average range, may vary depending on your usage
Product available with different options
€536.50

The displayed price including VAT is indicative.
The final amount will be calculated based on the delivery address provided when placing the order.

Free delivery from €299

Delivery in 3 to 5 business days
Free for orders over €299

Need help?
Contact one of our experts !

Returns within 14 days

Battery ALBER XION Cadre 36V 15,5Ah
BMZ Battery for Alber Xion Motor, 36V, 14.5Ah, 15.5Ah, and 16.8Ah - Frame
  • New
  • |
  • 14,5
  • |
€536.50

Compatibility

  • Focus | Crater Lake Xion - 2013 onwards
    Focus | Jarifa Offroad - 2013 onwards
Reference 22938-1GP
Product available with different options

Technical specifications

Vehicle type
Electric bike
Brand
Focus
Voltage
36 V
Weight
3.2 kg
Technology
Lithium
Location
Downtube
Charging time
6h
Marque compatible
Rear wheel motor ALBER/XION
Warranty
2 years
Charger
Rosenberger tip
Generation
2013
Battery model
Alber Xion
Proposed solution
New battery
Communication protocol
LIN BUS

Description

  • Technical Description

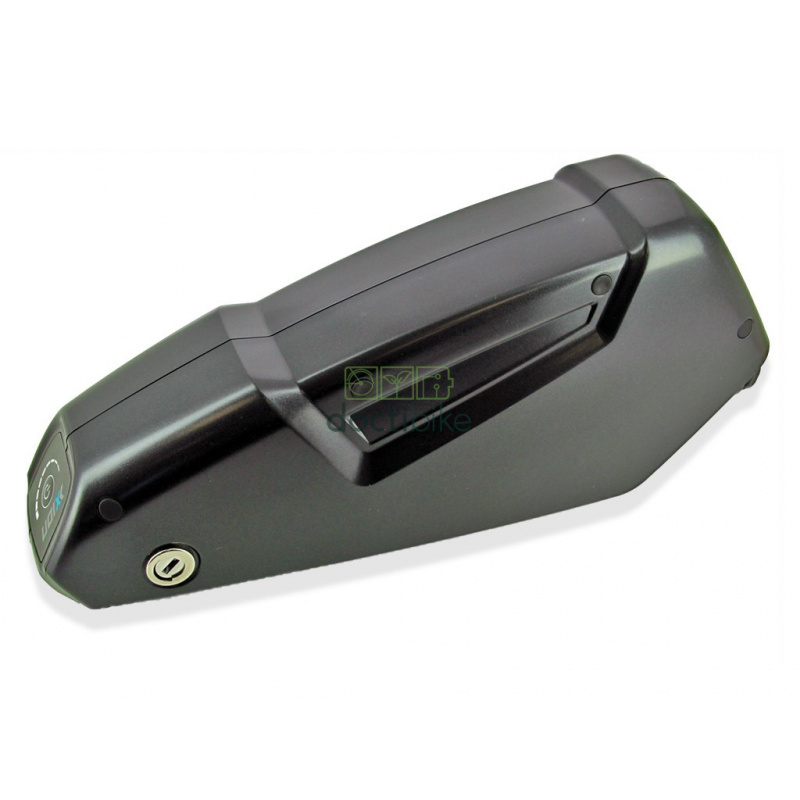

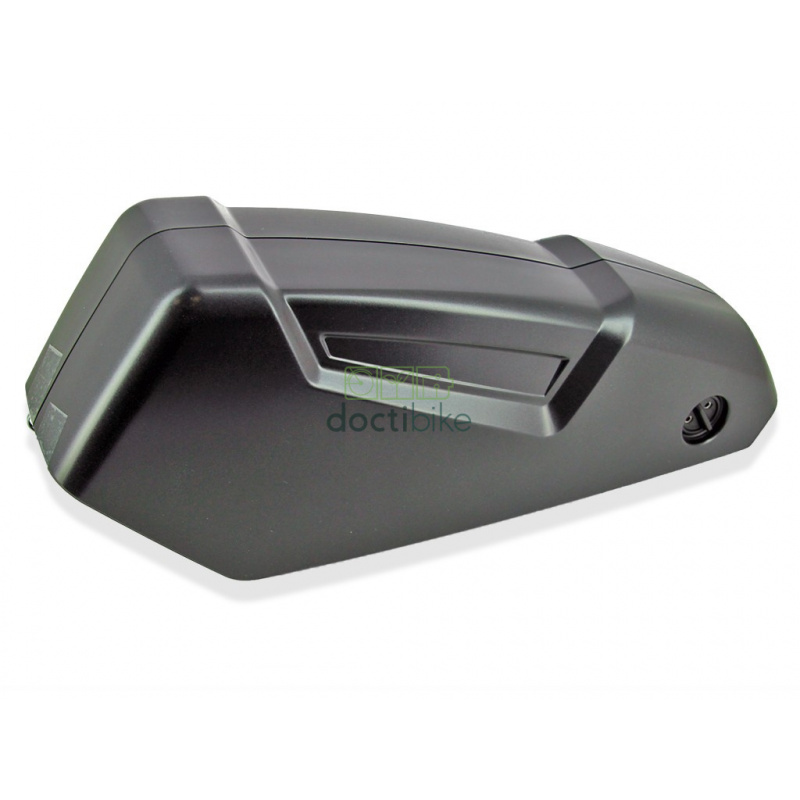

  • The BMZ ALBER XION 36V frame battery is a replacement battery designed for e-bikes equipped with an ALBER/XION rear-wheel motor.
  • Available in several capacities, it allows you to replace a worn-out original battery while retaining your bike’s ALBER/XION electrical system.

  • Technical Specifications

  • Brand: BMZ
  • System: ALBER XION
  • Type: e-bike battery
  • Location: frame
  • Voltage: 36 V
  • Available capacities: 14.5 Ah / 15.5 Ah / 16.8 Ah
  • Compatible motor: ALBER/XION rear-wheel motor
  • Charging connector: Rosenberger
  • Charger: not included

  • Available capacities

  • Depending on the version selected, this battery is available in:

  • 36V 14.5 Ah: a capacity suitable for replacing a 36V XION battery of equivalent capacity.
  • 36V 15.5 Ah: a higher capacity offering extended runtime compared to the 14.5 Ah version.
  • 36V 16.8 Ah: the highest capacity available, ideal for users looking for longer range between charges.

  • → We recommend choosing a capacity that matches the one specified for your bike and its electrical system.

  • Compatible Bikes
  • Brand Model Compatibility
  • Focus Crater Xion From 2013 onward, rear-wheel motor
  • Focus Jarifa Offroad From 2013 onward, rear-wheel motor

  • → Non-exhaustive list: other bikes equipped with the ALBER/XION 36V system with a rear-wheel motor may be compatible. Compatibility depends in particular on the bike model, year, and electrical configuration.

  • Compatible Chargers

  • The BMZ ALBER XION 36V battery features a Rosenberger connector. It is therefore compatible with BMZ chargers equipped with this connector, including:

  • → The charger is not included with the battery.

  • Expert Tips

  • Before ordering your ALBER XION battery, carefully check that your bike has a 36V voltage, is designed for frame mounting, has a Rosenberger connector, and is equipped with an ALBER/XION rear-wheel motor.
  • The capacity in Ah is also an important factor to consider: the higher the capacity, the more energy is available.
  • However, it’s essential not to choose a battery based solely on its capacity: compatibility with the bike’s electronic system remains the top priority.
  • For an identical replacement, choose the same capacity as your current battery.
  • If replacing with a battery of a different capacity, make sure beforehand that this configuration is compatible with your bike and its ALBER/XION system.
  • The BMZ ALBER XION 36V battery is therefore a suitable replacement for e-bikes equipped with the XION drivetrain featuring a rear-wheel motor, including certain Focus Crater Xion and Focus Jarifa Offroad models.
