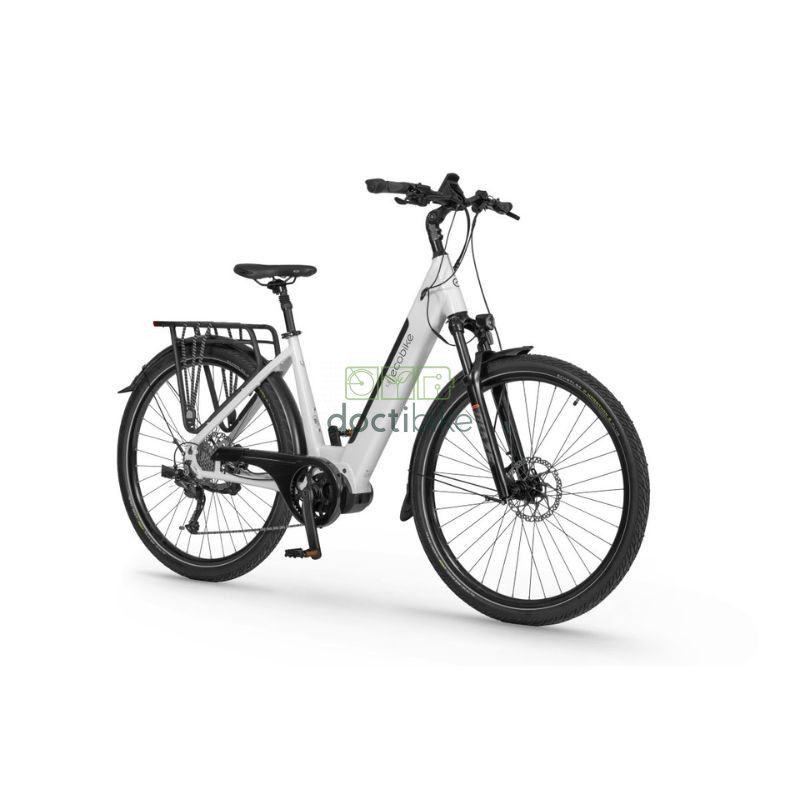

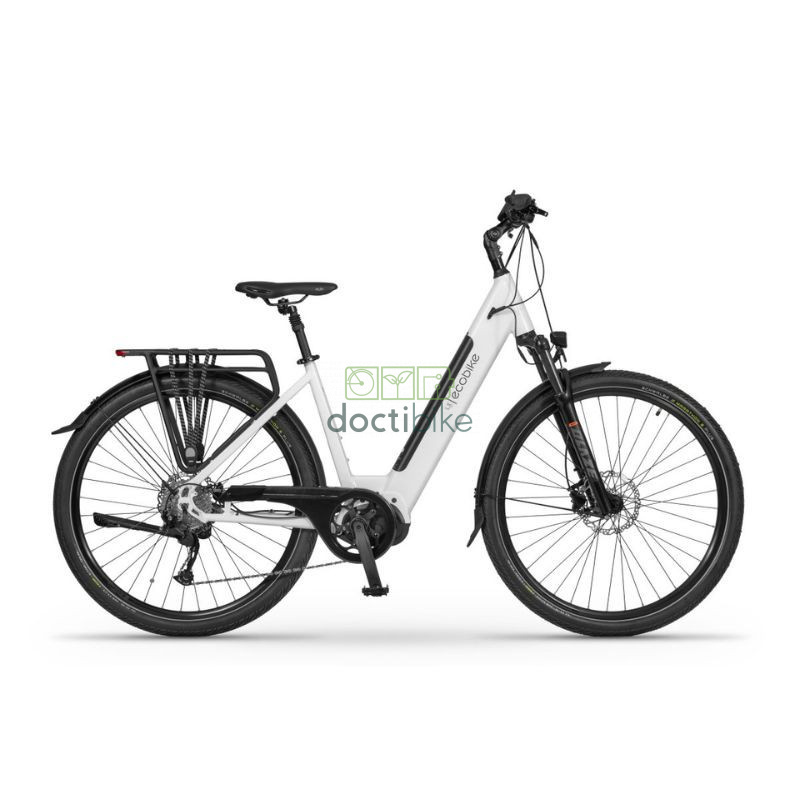

Ecobike LX300 White - Battery 556.8Wh or 672Wh - 17" or 19" electric bike

Ecobike LX300: Technology and comfort for your adventures

The LX300 impresses with its elegant new frame geometry, perfectly integrated with the battery. But its design doesn't stop at aesthetics: as soon as you climb into the saddle, you immediately feel the comfort it offers. The riding position is optimal, whether for short trips or long escapades. Ideal weight distribution also ensures a pleasant, safe ride.

Advanced technology for a simplified experience

The technological heart of the LX300 is the ANANDA® mid-mounted engine, which generates a powerful 100 Nm of torque. This motor will enable you to climb the toughest slopes with disconcerting ease. Thanks to its pressure sensor, assistance is triggered automatically as soon as you decide to pedal.

Energy consumption is optimized thanks to intelligent motor systems and Smart BMS technology integrated into the battery. The result: balanced energy management to prolong your riding pleasure.

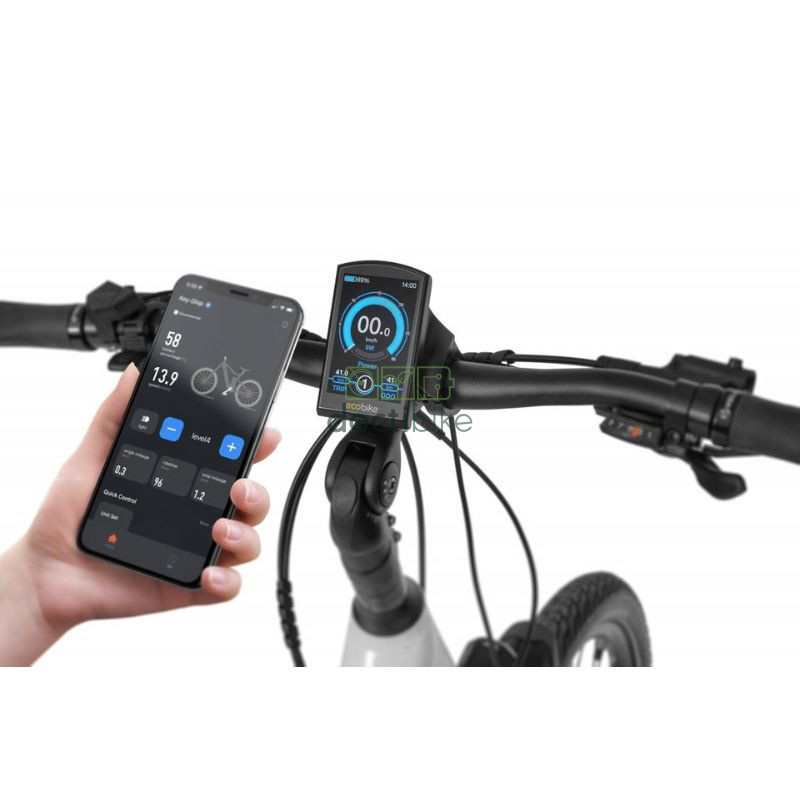

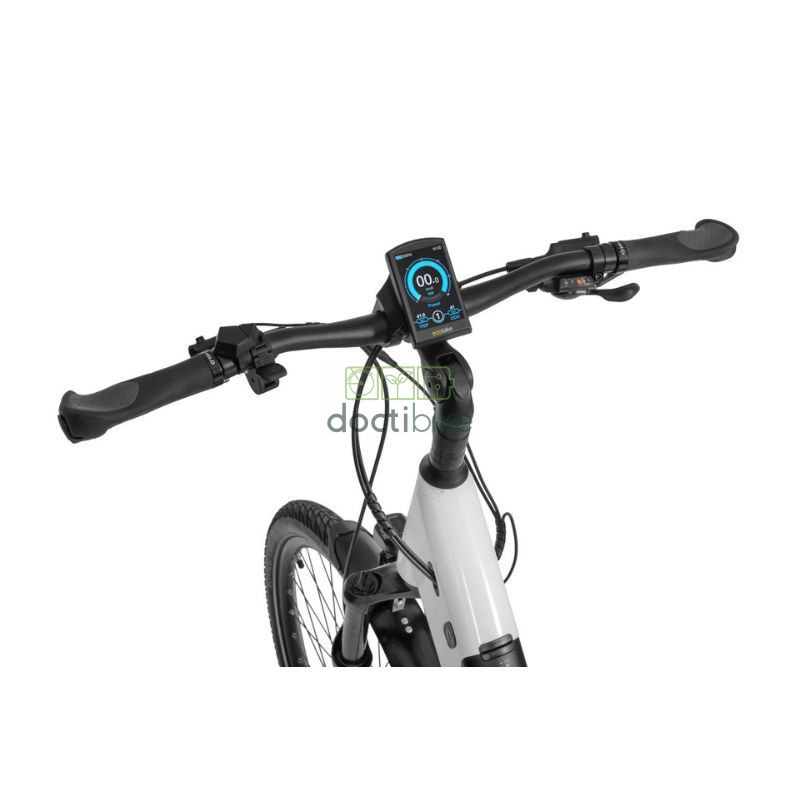

Intuitive control panel

The LX300 features a user-friendly color display with integrated twilight sensor. This automatically switches on the bike's lights at dusk. The simple, intuitive interface makes it easy to navigate between the various functions and electric assistance configurations.

Reliability and top-of-the-range equipment

Ecobike's passion for cycling is reflected in every detail of the LX300, which uses robust, proven components for maximum durability:

- A shock-absorbing RST® BLAZE TNL suspension fork for enhanced comfort,
- Schwalbe Marathon Plus tires for exceptional grip and longevity,
- A Shimano Alivio derailleur, renowned for its reliability and smoothness,
- Hydraulic disc brakes Shimano MT200 for optimum safety in all circumstances.

Fully equipped for all your adventures

The LX300 is designed for trekking and adapts to a wide variety of conditions thanks to its factory-fitted equipment:

- Full integrated lighting,
- Mudguards for all-weather riding,
- Sturdy rack for your gear,
- Royal® saddle for optimum comfort.

Ecobike LX300: the perfect companion for combining comfort, performance and technology in your daily adventures or long journeys.

2-year warranty

Technical specifications

Bike		Battery
Frame	17" / 19" hydroformed aluminum	Charger	220-240V / 52V / 2A
Fork	RST BLAZE TNL29" travel 100 mm	Power (Wh)	556.8 or 672
Wheel	28" three-chamber reinforced rims / Sapim spokes	Capacity (Ah)	11.6 or 14
Tires	28" x 2.2 Schwalbe Marathon Plus	Type	Li-ion
Handlebars	Promax 700 mm 31.8	Voltage	48 V
Stem	Zoom, 0 - 30° / 90 mm	Range	Up to 135km
Brakes	Shimano MT200 Hydraulic	Service life	700 cycles
Gear change	Shimano Alivio, 9 speeds	Charging time	4 to 8 hours
Freewheel	Shimano HG-200 11-36T 9 speeds	Electrical system
Front hub	TORA 36H, Centerlock	Motor	Ananda
Chain / Belt	KMC E9 Sports	Type	Central (pedal crankset)
Crankset	Ananda 44T	Model	Ananda M81
Saddle	Royal Ariel saddle	Voltage	48 V
Seat post	Promax 27.2 / 350 mm	Torque	100 N.m
Front lighting	Spaninga Kendo XE / Herrmans MR5	Power	250 W
Rear lighting	Spaninga GLOW XE	Speed	25km/h in compliance with European standard EN 15194
Maximum load	125 kg	Display
Weight	26.6 kg (17") / 26.8 kg (19")	Model	Ecobike C900 (color LCD)

Geometry

A: Effective top tube length (mm)	595 (17") / 605 (19")
B: Head tube (mm)	170
C : Seat tube length (mm)	432
D: Wheelbase (mm)	1152.5 (17") / 1162.5 (19")
E: Seat tube angle (degrees)	73
F: Steering angle (degrees)	69
