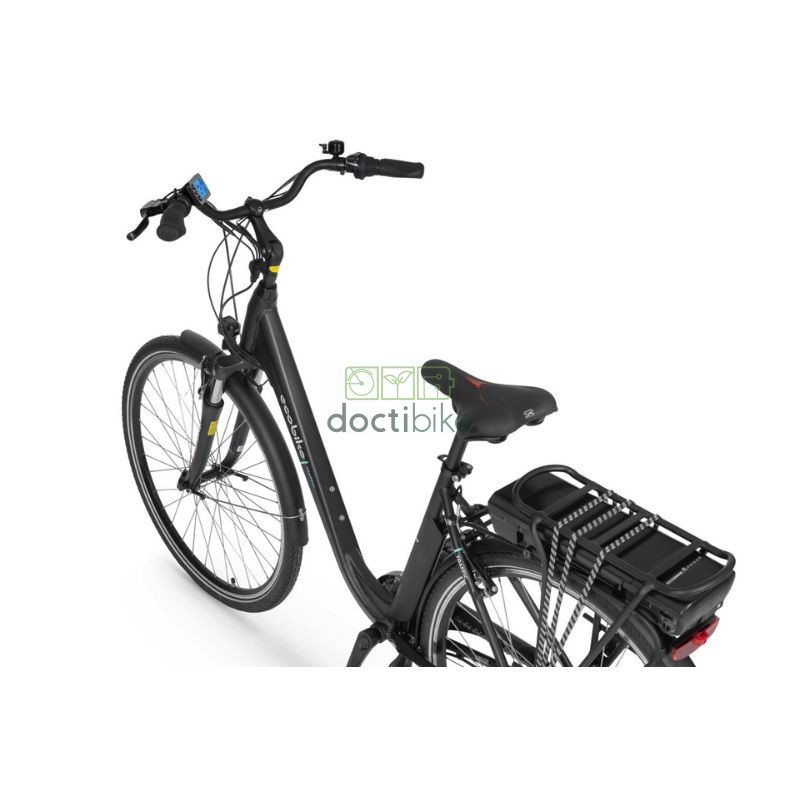

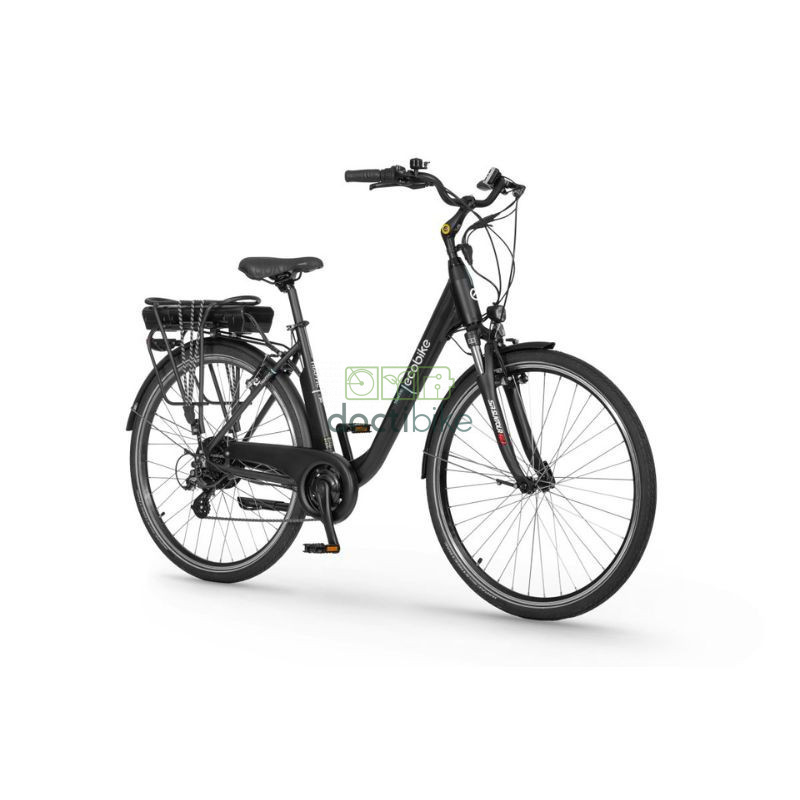

Ecobike Traffic Black 19" electric bike - Battery 417.6Wh, 522Wh or 630Wh

Ecobike Traffic: combining performance and urban comfort

The Traffic model is designed for demanding users, with an LCD display offering a wide range of electric assistance configurations and a wealth of useful information. A USB port is also integrated for charging your smartphone or other devices.

Redesigned for comfort and style

This new model has undergone a complete redesign, with a low-frame version that improves comfort when getting on and off the bike. The men's version is also new, offering unique style on urban bike paths.

Proven technology and reliable performance

The Traffic is based on reliable technology that users have appreciated for many years. It features a BAFANG 250W motor located in the rear hub, supported by a battery mounted on the luggage rack. You can choose from three battery capacities:

-11.6 Ah,

- 14.5 Ah,

- 17.5 Ah.

An interesting feature is the integration of Smart BMS technology in the batteries, which enhances their performance and guarantees trouble-free use over an extended period.

Comfort and safety first and foremost

The Traffic meets all expectations in terms of comfort and safety. It is equipped with :

- Full lighting, powered by the main battery,

- Shimano Altus derailleur for smooth shifting,

- SunTour CR8V suspension fork to absorb shocks,

- Adjustable seatpost,

- Mudguards,

- Royal® saddle for optimum comfort.

An ecological and elegant choice

Adopt the Ecobike Traffic and play an active part in cleaning up your city by eliminating exhaust fumes, while adding a touch of style. The Traffic is much more than an electric bike: it's an intelligent, eco-responsible means of transport that stands out on urban roads.

2-year warranty

Technical specifications

Bike		Battery
Frame	19" hydroformed aluminum	Charger	220-240V / 42V / 2A / D Type
Fork	SunTour SF14 CR8V P, travel 63 mm	Power (Wh)	417.6, 522 or 630
Wheel	STARS, 28", three-chamber wheels	Capacity (Ah)	11.6, 14.5 or 17.5
Tires	28'' x 1.75 Rubena Fash	Type	Li-ion
Handlebars	Promax HB-T320 (25.4 mm x 600 mm)	Voltage	36 V
Stem	PROMAX MQ-525	Range	Up to 140km
Brakes	Promax TX - 117, V-brake	Service life	> 700 cycles
Gear change	Shimano Altus 7 speeds	Charging time	6 to 9 hours
Freewheel	Freewheel Shimano MF-TZ500, 14-28T, 7 speeds	Electrical system
Front hub	Joytech 751DSE	Motor	Bafang
Chain / Belt	KMC Z7 (114L)	Type	Rear wheel
Crankset	Prowheel PRO - A42, 42 x 170 mm	Controller	Lishui SO-WZK0156
Saddle	Royal Lookin Basic saddle	Voltage	36 V
Seat post	Promax 27.2 x 350	Torque	45 N.m
Front lighting	Spaninga Kendo XE 6-36V	Power	250 W
Rear lighting	Spaninga RL1900 XE 36VDC	Speed	25km/h in compliance with European standard EN 15194

Geometry

A: Effective length of top tube (mm)	600.4
B: Head tube (mm)	161
C : Seat tube length (mm)	482
D: Wheelbase (mm)	1105.7
E: Seat tube angle (degrees)	72.5
F: Steering angle (degrees)	70
