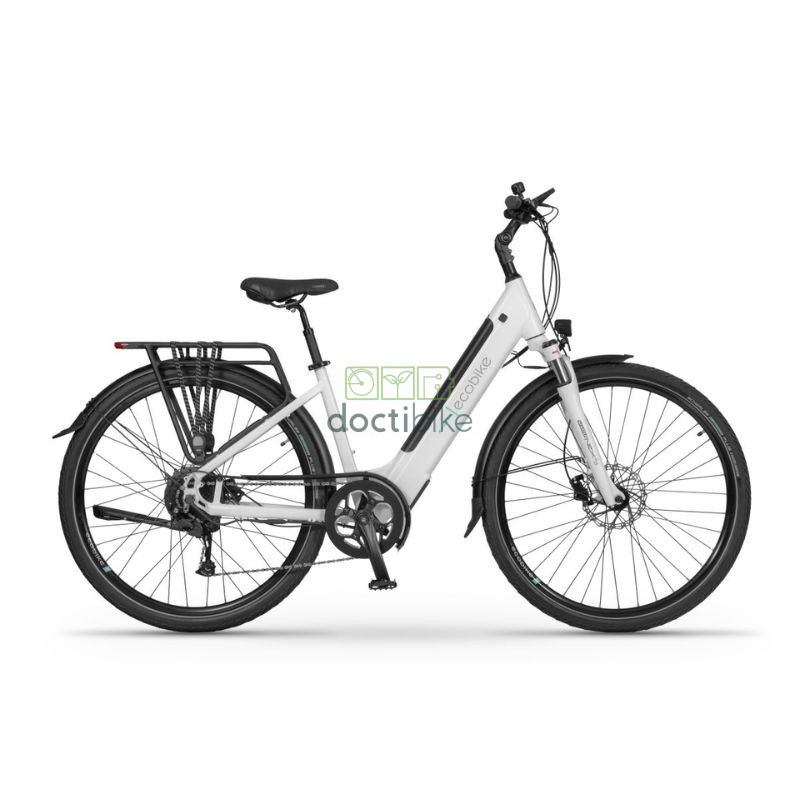

Ecobike X-Cross White - 504Wh or 630Wh battery - 17" or 19" electric bike

X-Cross

Ecobike's most popular trekking model has been revolutionized. The X-Cross is an electric bike designed from the ground up, while retaining the tradition enjoyed by users across Europe for years. A telescopic seatpost, wider tires, more sizes and a completely redesigned handling system: the X-Cross once again redefines standards in its class!

The Ecobike X-Cross is in great demand throughout Europe. Users appreciate its robust equipment and the ability to adopt an optimal position for comfortable riding in a variety of conditions, even over long distances.

The new version of this model incorporates numerous improvements. Starting with the frame, which features a more expressive and modern design, with improved protection of the batteries against water. The luggage rack, with integrated lighting, is another new feature. The Schwalbe® Energizer Plus tires are wider than before, as is the new telescopic seatpost. All X-Cross versions are now available in two sizes.

Finally, technological change is the most important aspect. The X-Cross model has always been equipped with a reliable motor from Bafang®, but now the assistance system comes entirely from this manufacturer, making it even more optimized, reliable and energy-efficient. The new Bafang® C270 display offers a range of information en route, is easy to use and boasts a neat design.

2-year warranty

Technical specifications

Bike		Battery
Frame	17" / 19" hydroformed aluminum	Charger	220-240V / 42V / 2A / Type D
Fork	SunTour SF15 NEX-E25 LO DS 700C (skok: 63 mm)	Power (Wh)	504 or 630
Wheel	28" / reinforced rims / stainless steel spokes	Capacity (Ah)	14 or 17.5
Tires	28 x 1.95 Schwalbe ENERGIZER PLUS	Type	Li-ion
Handlebars	PROMAX HB-3188	Voltage	36 V
Stem	PROMAX MA-595	Range	Up to 140km
Brakes	ALHONGA DISC BRAKES HJ-HT472	Brake life	700 cycles
Gear change	Shimano Alivio, 9 speeds	Charging time	4 to 8 hours
Freewheel	Shimano Altus, 11-34T, 9 speeds	Electrical system
Bottom bracket	Feimin FP-B902W (73 mm x 124.5 mm)	Motor	Bafang
Chain / Belt	KMC, 118L, 9-speed	Type	Rear wheel
Crankset	TOPWHEEL OUNCE248AC (48T x 170 mm)	Controller	Bafang WZK0282
Saddle	Royal Lookin Basic saddle	Voltage	36 V
Seat post	UNO SP382 (27.2 mm x 350 mm)	Torque	45 N.m
Front lighting	Spaninga KENDO XE	Power	250 W
Rear lighting	Spanninga GLOW XE 6-48V DC	Speed	25km/h in compliance with European standard EN 15194
Maximum load	125 kg	Display
Weight	26.7 kg (17") / 26.9 kg (19")	Model	C270 CAN

Geometry

A: Effective length of top tube (mm)	590 (17") / 605 (19")
B: Head tube (mm)	160
C : Seat tube length (mm)	432 (17") / 482 (19")
D: Wheelbase (mm)	1120 (17") / 1135.6 (19")
E: Seat tube angle (degrees)	73
F: Steering angle (degrees)	69
