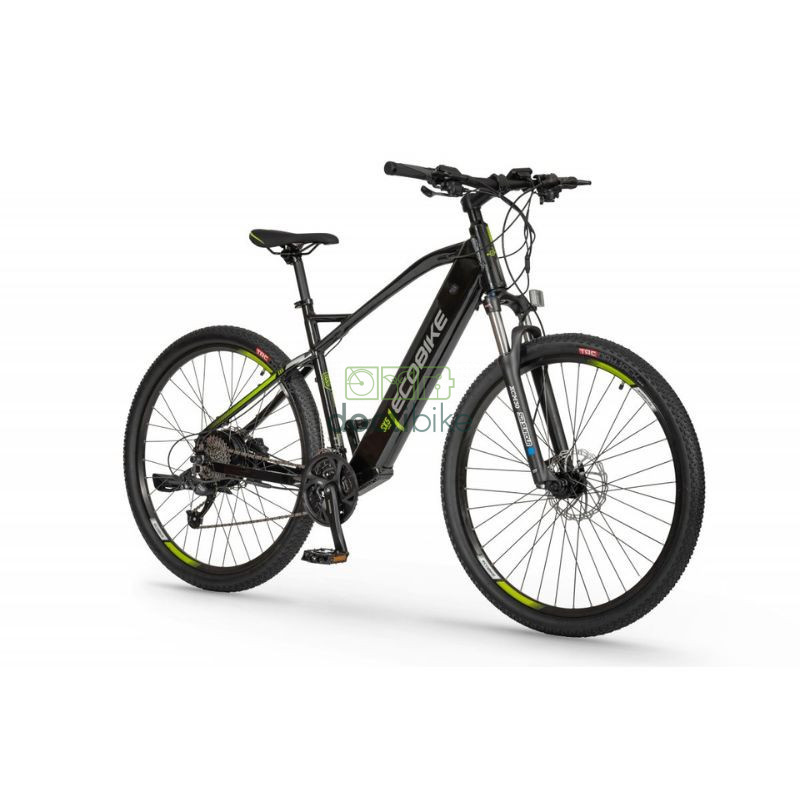

Ecobike SX 5 20 "electric mountain bike - Battery 522Wh or 630Wh

Ecobike SX: Designed for adventure, ready for any challenge

When the road becomes an unpredictable trail, there's no room for untried solutions. You need a bike you can count on. Discover the SX, an electric mountain bike made to go further, where others stop.

Design for efficiency

The sleek styling of the Ecobike SX looks simple, but it's the result of complex work. The frame has been designed to combine ergonomics and functionality, allowing the battery to be fully integrated. The result? A durable construction that holds the battery securely in place while making it easy to insert and remove.
As always with Ecobike, you can configure your mountain bike with different battery capacities to suit your needs:

- 14.5 Ah,

- 17.5 Ah.

Reliable, high-performance electrical system

The Ecobike SX is equipped with a proven electrical system that has been constantly improved over the years.

- A powerful, maintenance-free Bafang motor , positioned on the rear wheel, enables you to climb the steepest slopes even in difficult conditions.

- A modern controller that manages the system autonomously for a worry-free driving experience.

- An intuitive control panel that displays essential parameters and allows you to easily adjust the assistance to your preferences.

Robust equipment for maximum performance

To ensure that the SX is always ready for a challenge, it is equipped with high-quality components:

- Shimano Altus/Alivio derailleurs, renowned for their reliability,

- Alhonga hydraulic brakes for optimum safety,

- SunTour XCM forks for effective shock absorption on rough terrain,

- Ultra-resistant TRC Dryjack tires for exceptional grip.

Ready for the unknown

With the Ecobike SX, we've created a new model of electric mountain bike, designed to push the limits. Choose your favorite version from the three available variants and set off to discover the unexplored.

The Ecobike SX: a reliable companion for unpredictable trails and endless adventures.

2-year warranty

Technical specifications

Bike		Battery
Frame	20" hydroformed aluminum	Charger	220-240V / 42V / 2A
Fork	SunTour XCM travel 100 mm	Power (Wh)	522 or 630
Wheel	29" three-chamber reinforced rims / Sapim spokes	Capacity (Ah)	14.5 or 17.5
Tires	29" x 2.1 TRC Dryjack	Type	Li-ion
Handlebars	Zoom 720 mm 31.8	Voltage	36 V
Stem	Promax 10° / 90 mm	Range	Up to 140km
Brakes	Alhonga HJ-HT472 hydraulic	Brake life	700 cycles
Front derailleur	Shimano Altus 3 chainrings	Charge time	7 to 9 hours
Rear derailleur	Shimano Alivio 9-speed	Electrical system
Front hub	KT-K68F	Motor	Bafang
Freewheel	SunRace 13-32T 9-speed	Type	Rear wheel
Bottom bracket	Feimin FP-B902W	Model	SWX02
Chain / Belt	KMC X9	Voltage	36 V
Crankset	Shimano FCM371 44 x 32 x 22	Torque	45 N.m
Saddle	Velo VL-3363	Power	250 W
Seat post	PROMAX SP-252 (27.2 mm x 350 mm)	Speed	25km/h in compliance with European standard EN 15194
Maximum load	125 kg	Display
Weight	25.8 kg	Model	Ecobike C300U monochrome

Geometry

A: Effective top tube length (mm)	610
B: Head tube (mm)	160
C : Seat tube length (mm)	508
D: Wheelbase (mm)	1124
E: Seat tube angle (degrees)	73
F: Steering angle (degrees)	70
